Home >> Mercury >> 1999 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Windows and Glass >> Windows >> Power Window Switch >> Testing and Inspection >> LR Window Control Switch

LR Window Control Switch

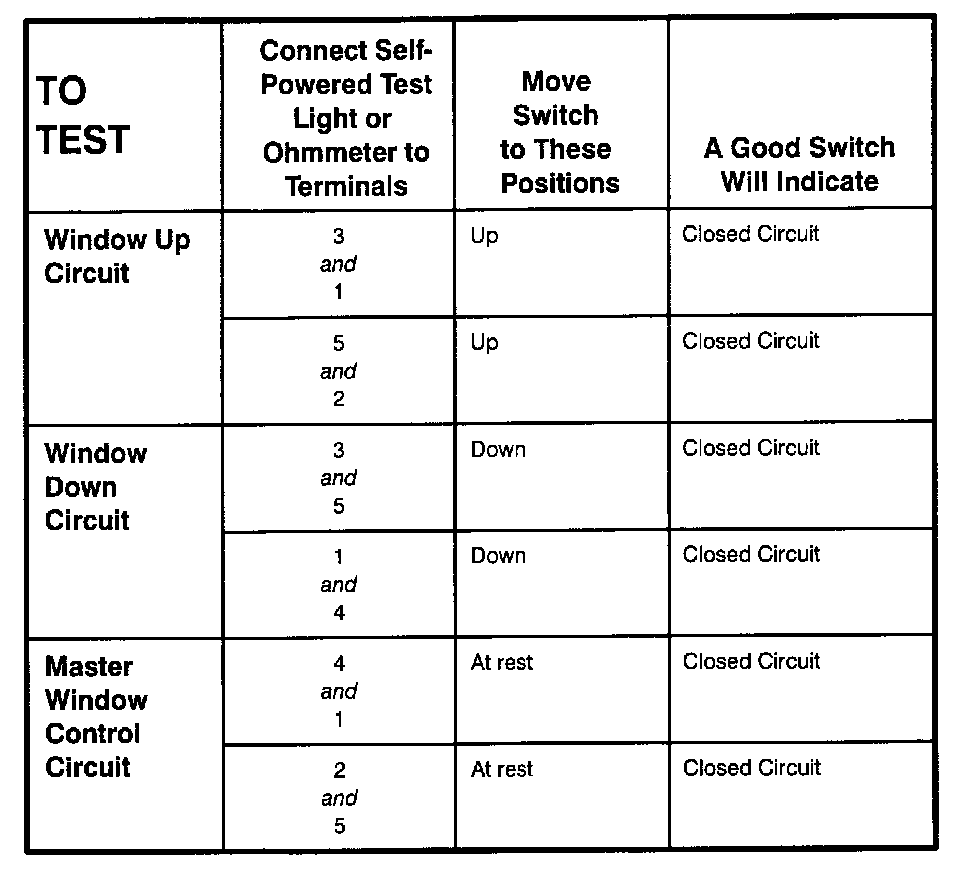

Component Testing Procedure:

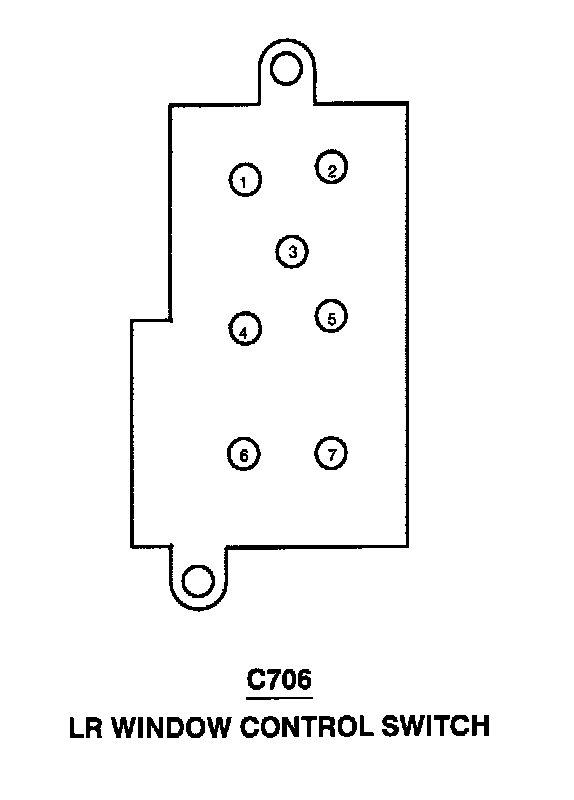

Terminals:






Schematic:
