Home >> Mercury >> 1999 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Starting and Charging >> Starting System >> Ignition Switch >> Testing and Inspection >> Pinpoint Tests >> C: Ignition Switch in Inoperative

C: Ignition Switch in Inoperative

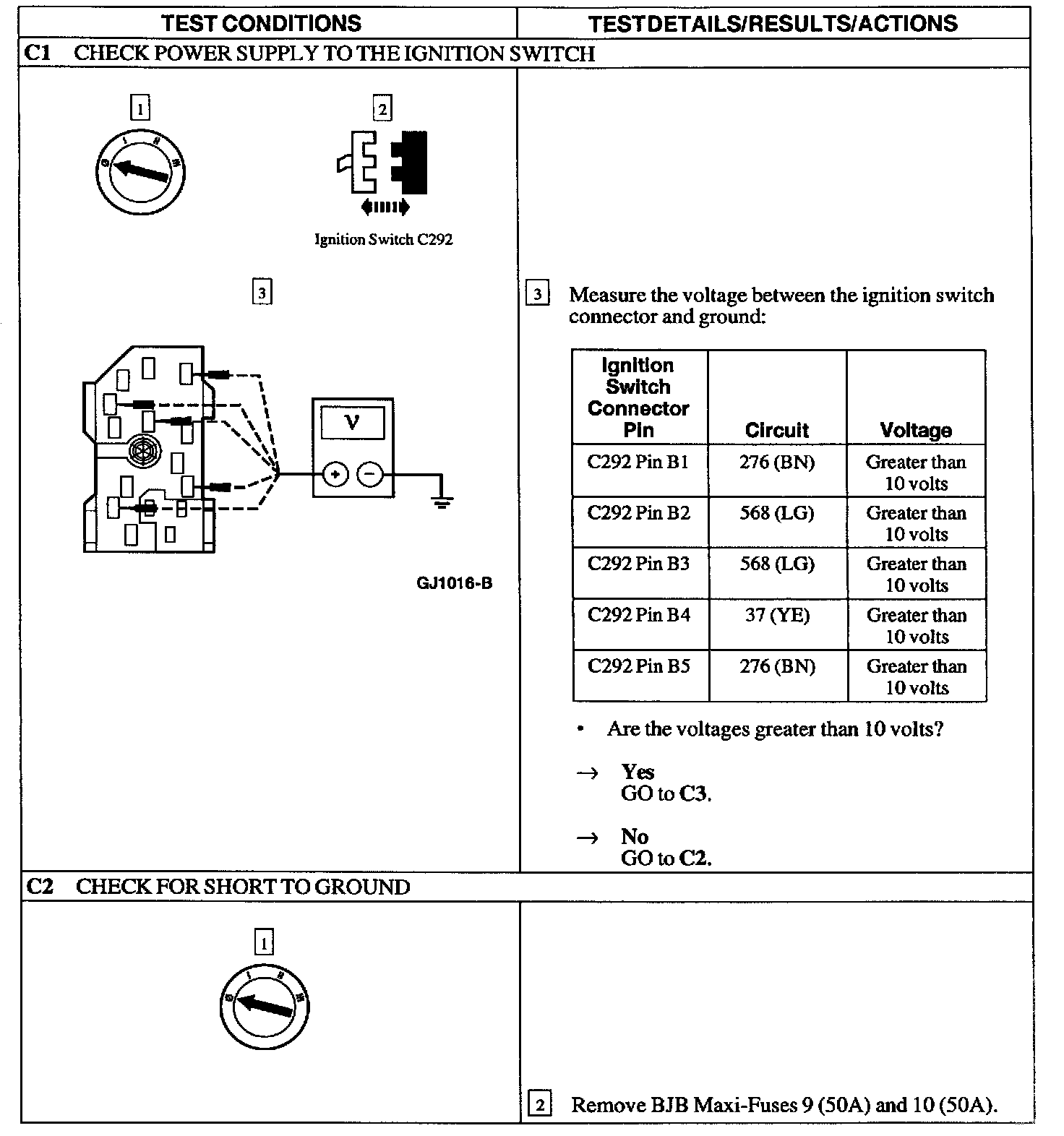

Test C1 - C2:

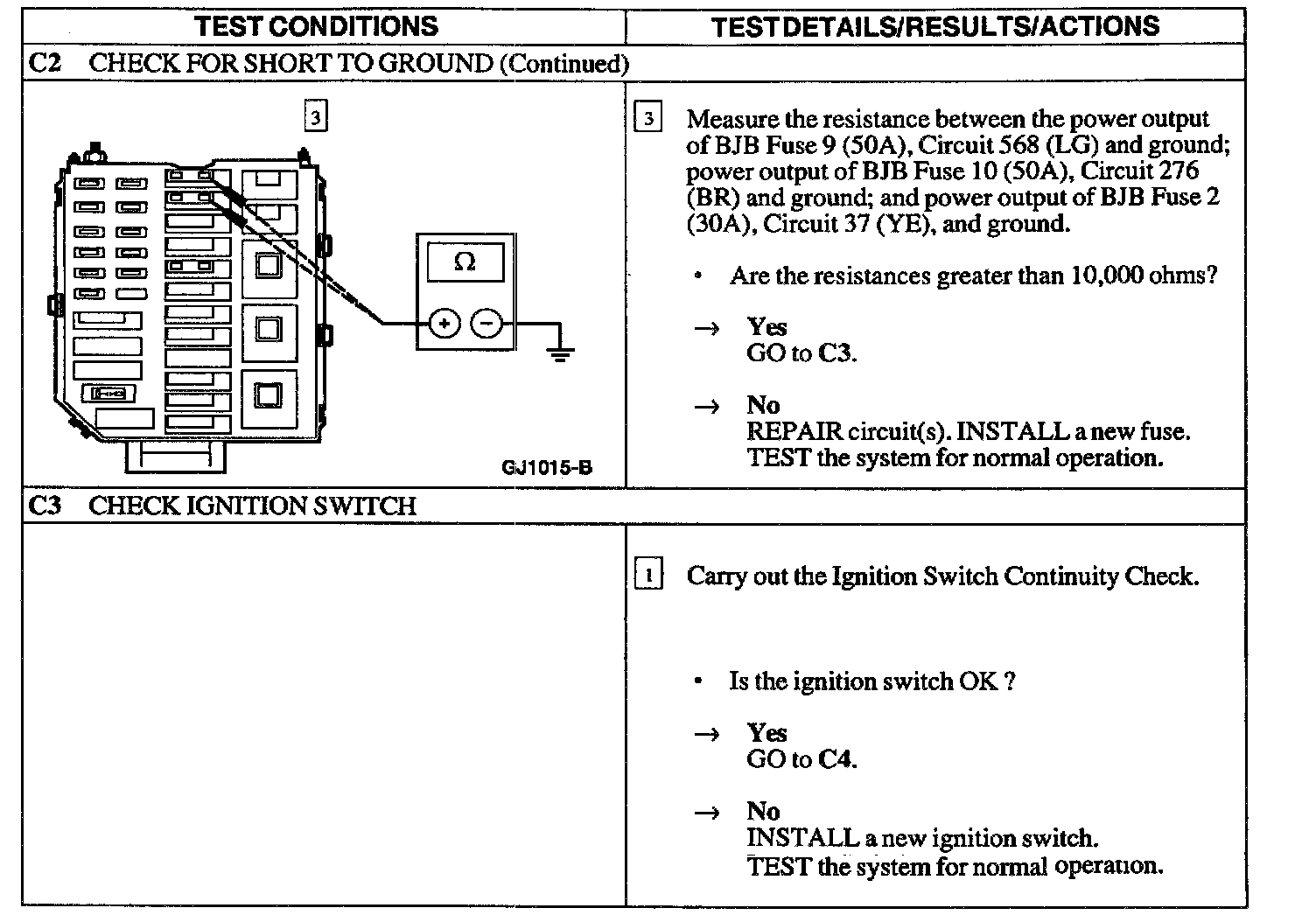

Test C2 - C3:

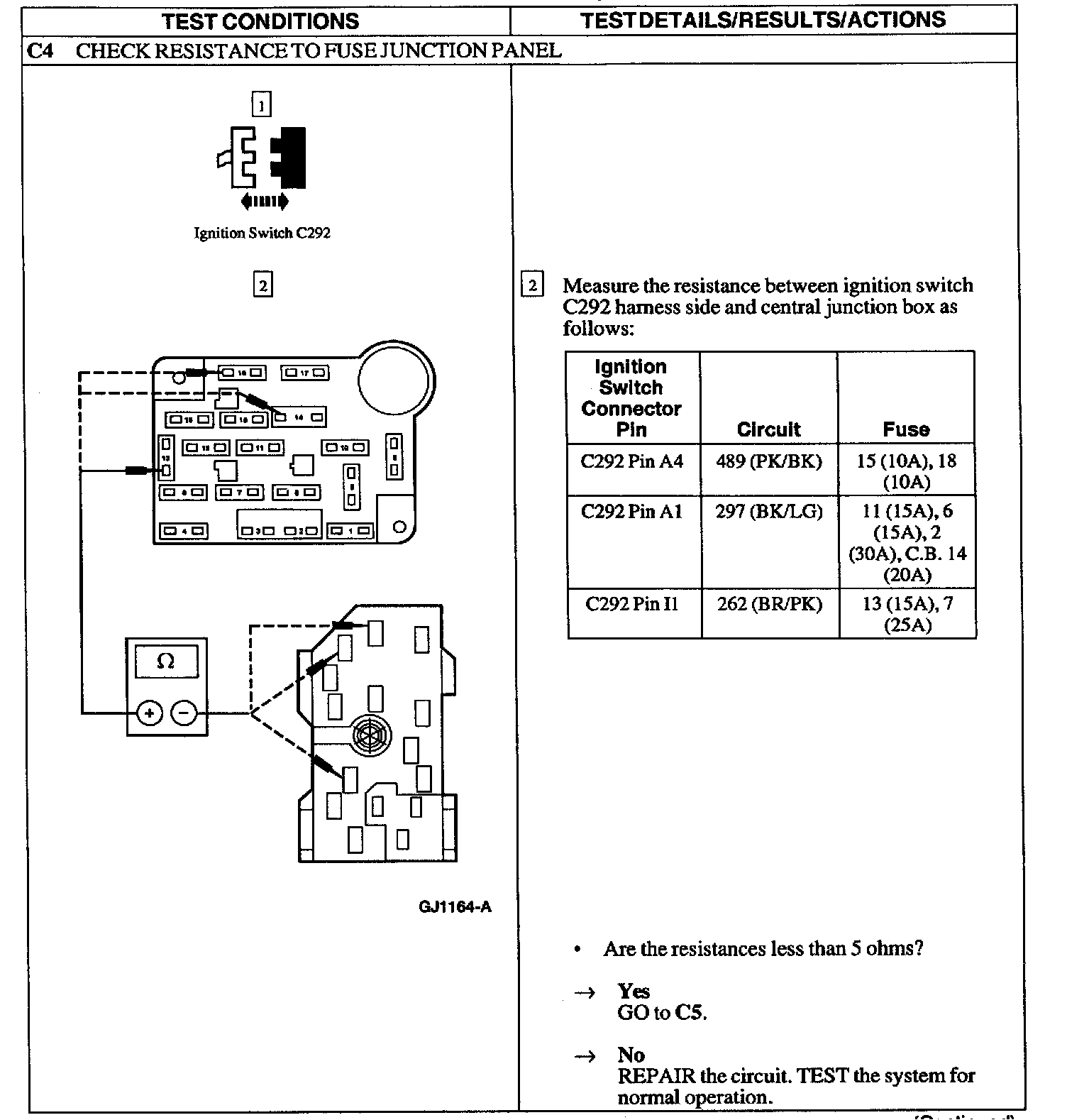

Test C4:

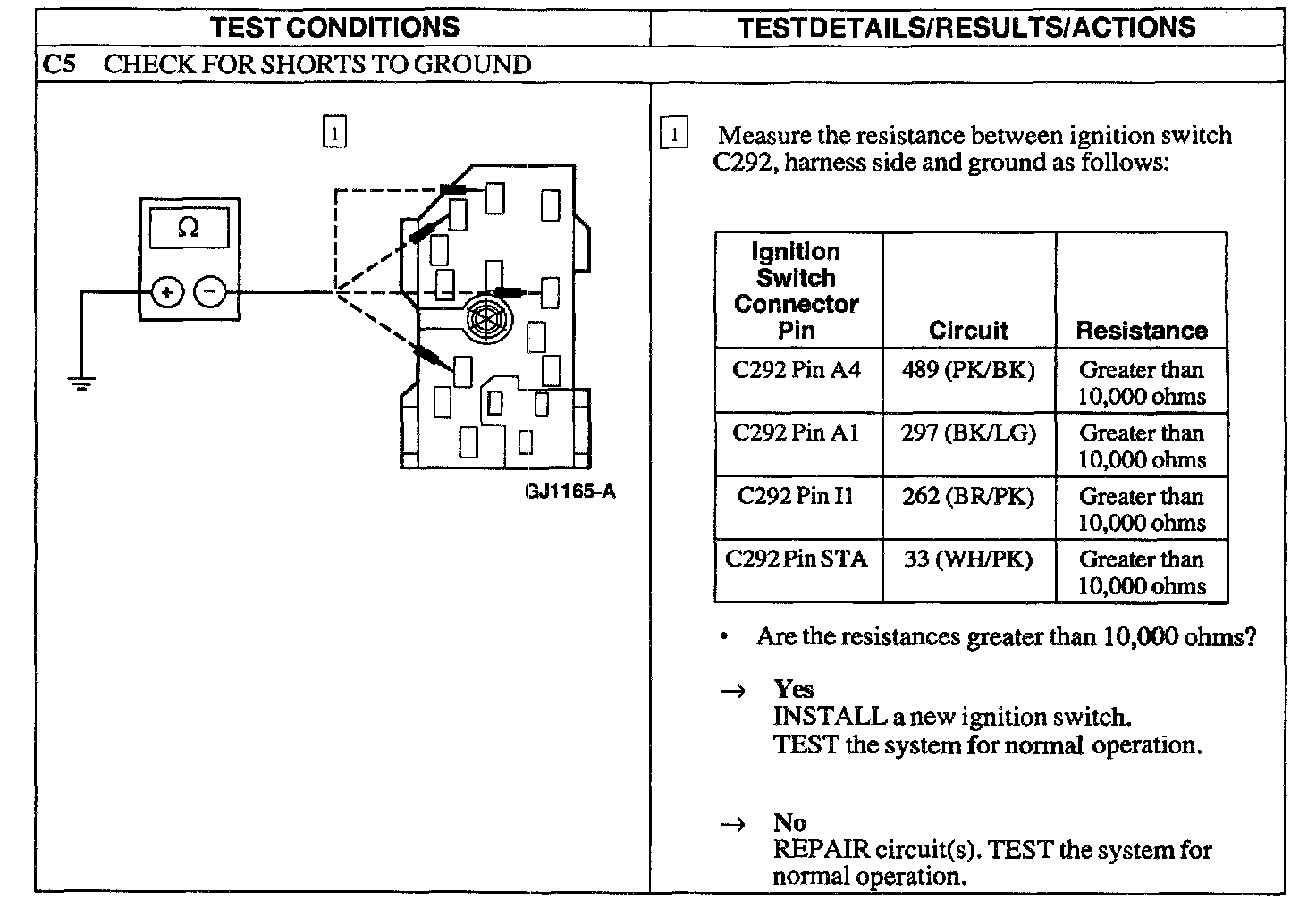

Test C5:
