Positive Crankcase Ventilation Valve: Service and Repair

REMOVAL

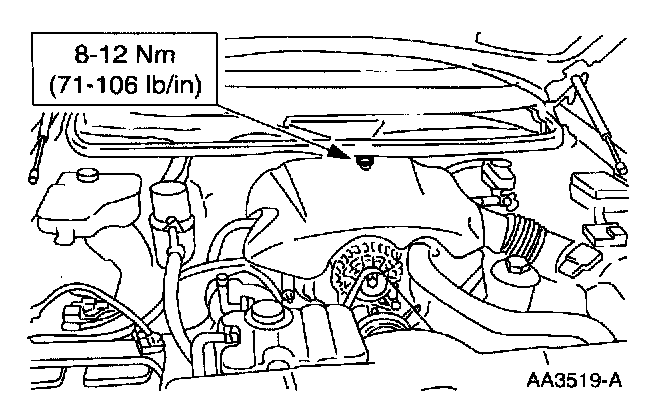

1. Remove the appearance cover.

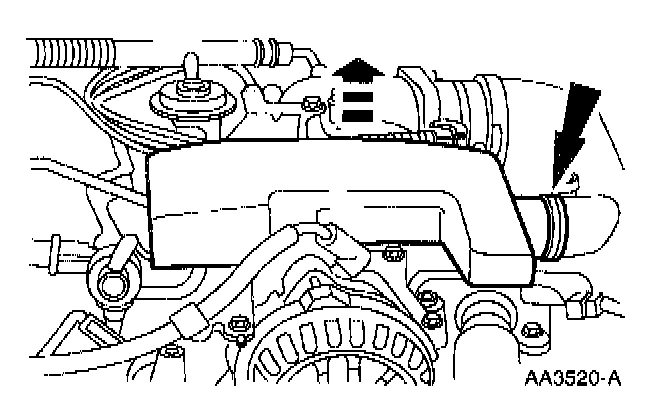

2. Loosen the clamp and remove the engine air cleaner tube.

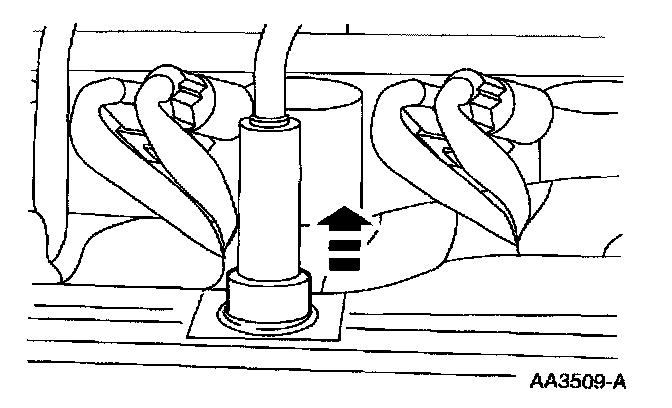

3. Remove the Positive Crankcase Ventilation (PVC) valve from the grommet.

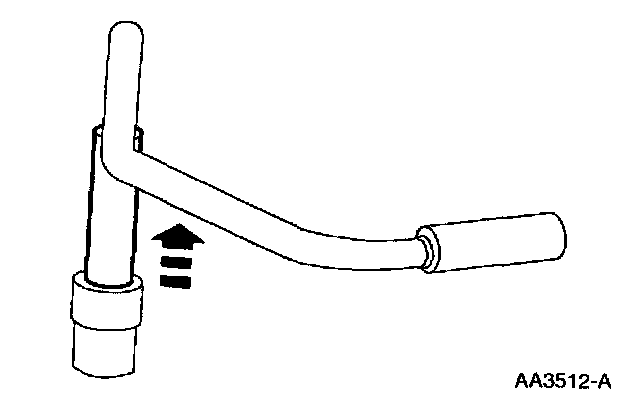

4. Remove the Positive Crankcase Ventilation (PVC) valve from the crankcase vent connector and hose.

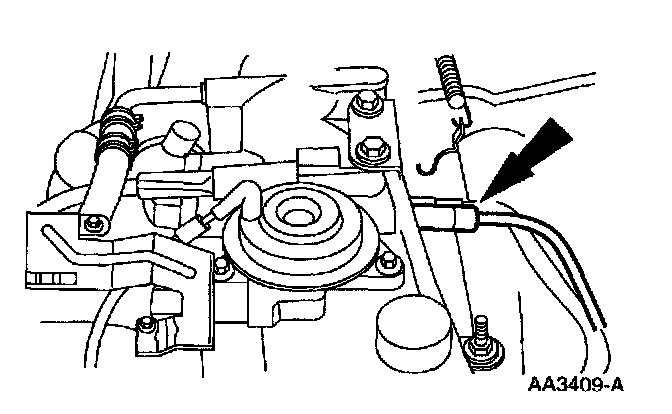

5. Remove the crankcase vent connector and hose from the throttle body.

INSTALLATION







1. To install, reverse the removal procedure.
