Evaporative System Service Port: Service and Repair

REMOVAL

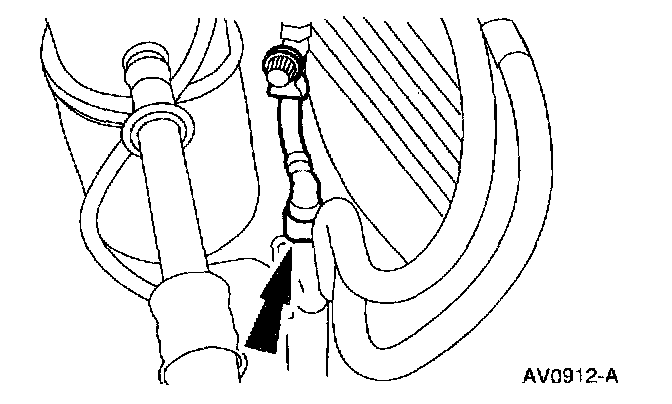

1. Disconnect the evaporative emission test port at the evaporative emission canister purge valve (EVAP canister purge valve).

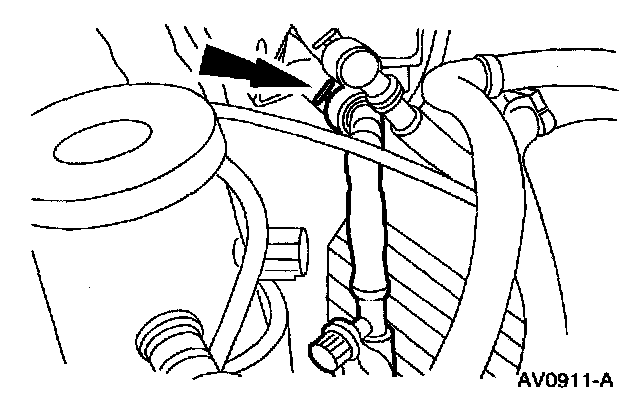

2. Remove the evaporative emission test port by disconnecting at the EVAP canister purge outlet tube.

INSTALLATION
1. To install, reverse the removal procedure.
2. Leak test the system.
3. Perform the Evaporative Emission Running Loss Monitor Repair Verification Drive Cycle.
