Heater Hose: Service and Repair

REMOVAL
1. Drain the radiator.

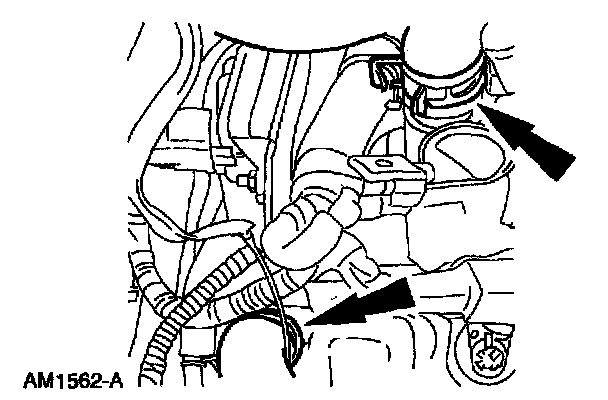

2. Remove the heater hoses from the heater core.

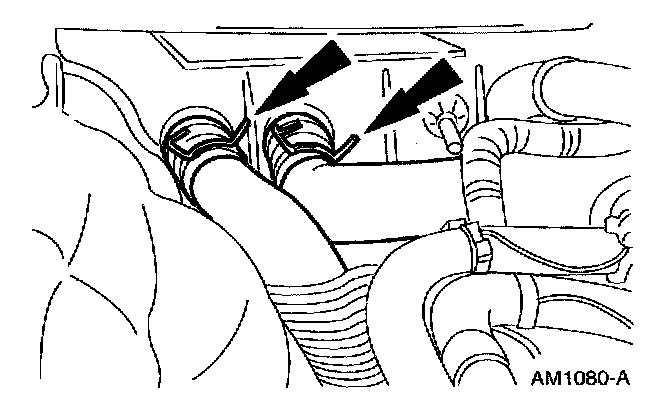

3. Remove the heater hoses from the engine.

INSTALLATION
1. To install, reverse the removal procedure.
- Lubricate the coolant hoses with Ford Rubber Suspension Insulator Lube E25Y-19553-A or equivalent meeting Ford specification ESF-M99B112-A.
