Removal and Installation

REMOVAL
1. Remove the rear seat airflow duct.
2. Remove the steering column lower cover.

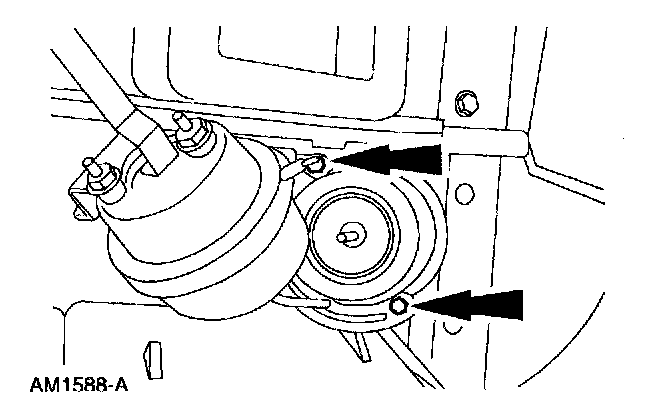

3. Remove the vacuum motor screws.







4. Remove the heater outlet floor duct.

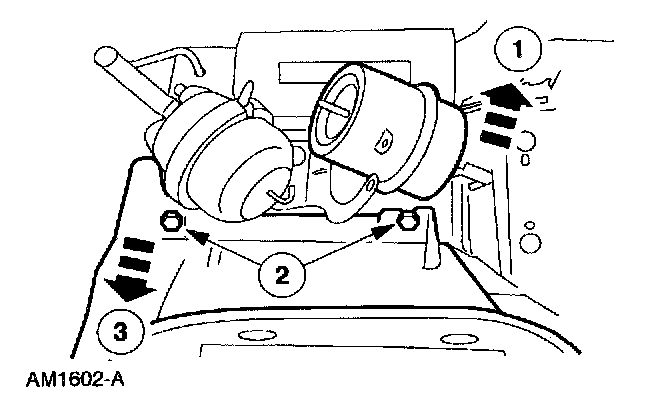

1 Position the vacuum motor aside.
2 Remove the screws.
3 Remove the heater outlet floor duct.

INSTALLATION
1. To install, reverse the removal procedure.
