Water Pump: Service and Repair

Removal

CAUTION: Do not mix standard (green) coolant with Extended Life Coolant (orange).

1. Drain the coolant.

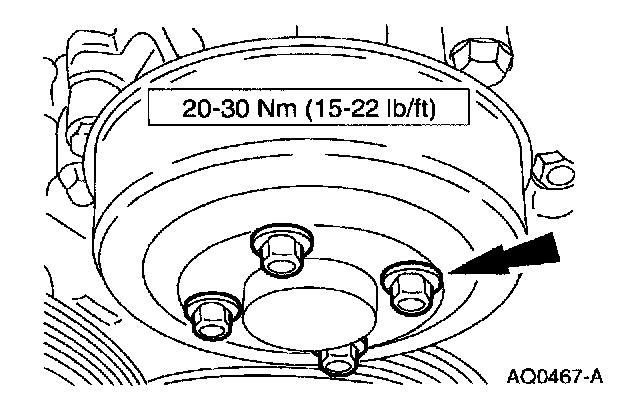

2. Loosen the bolts.
3. Remove the belt.

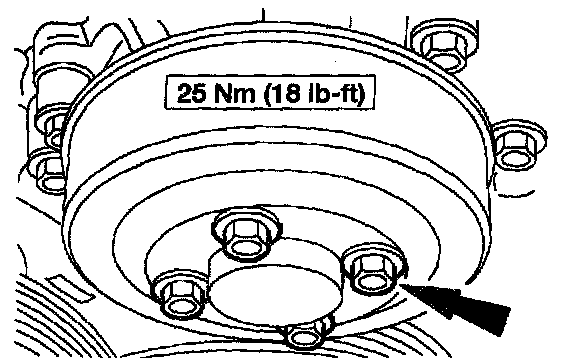

4. Remove the bolts and the water pump pulley.

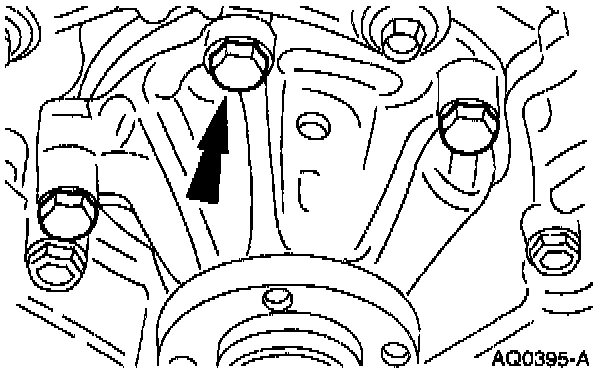

5. Remove the four bolts from the water pump.

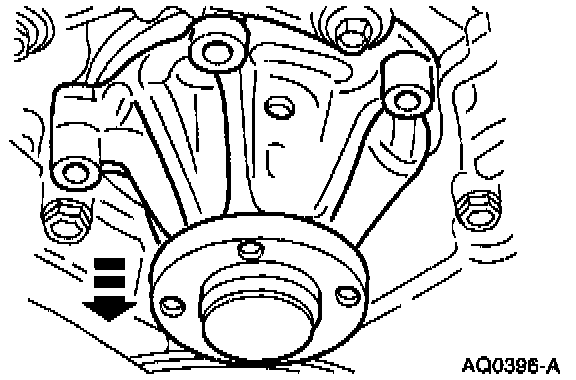

6. Remove the water pump.

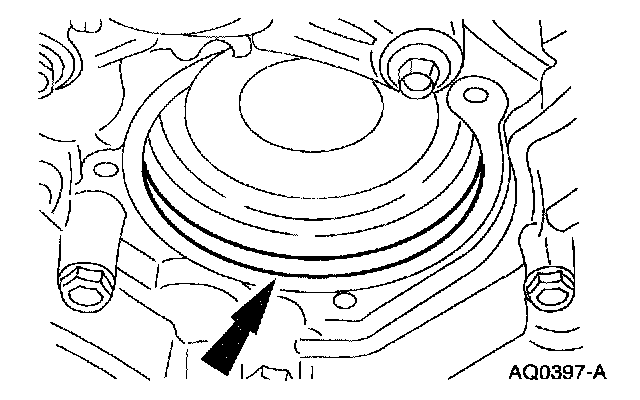

7. Clean water pump mounting surface.

Installation





1. CAUTION: Do not rotate the water pump housing once installed in the engine. Damage to the O-ring can occur, causing the water pump to leak.

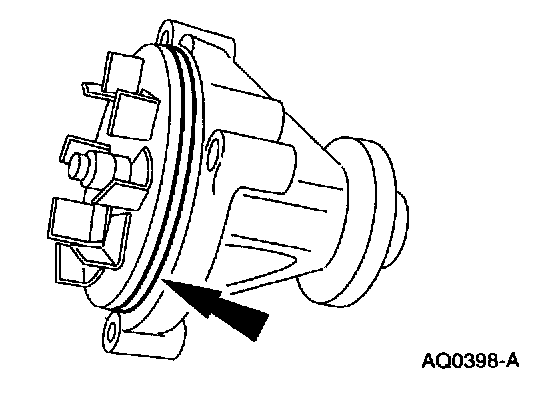

NOTE: Install a new O-ring seal and lubricate with Ford Premium Engine Coolant E2FZ-19549-AA, F5FZ-19549-CC in Oregon, CXC-10 in Canada or equivalent meeting Ford Specification ESE-M97B44-A.









To install, reverse the removal procedure.

2. Fill the cooling system.
