Mercury
>>
1999
>>
Grand Marquis V8-4.6L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting System
>>
Ignition Switch
Ignition Switch

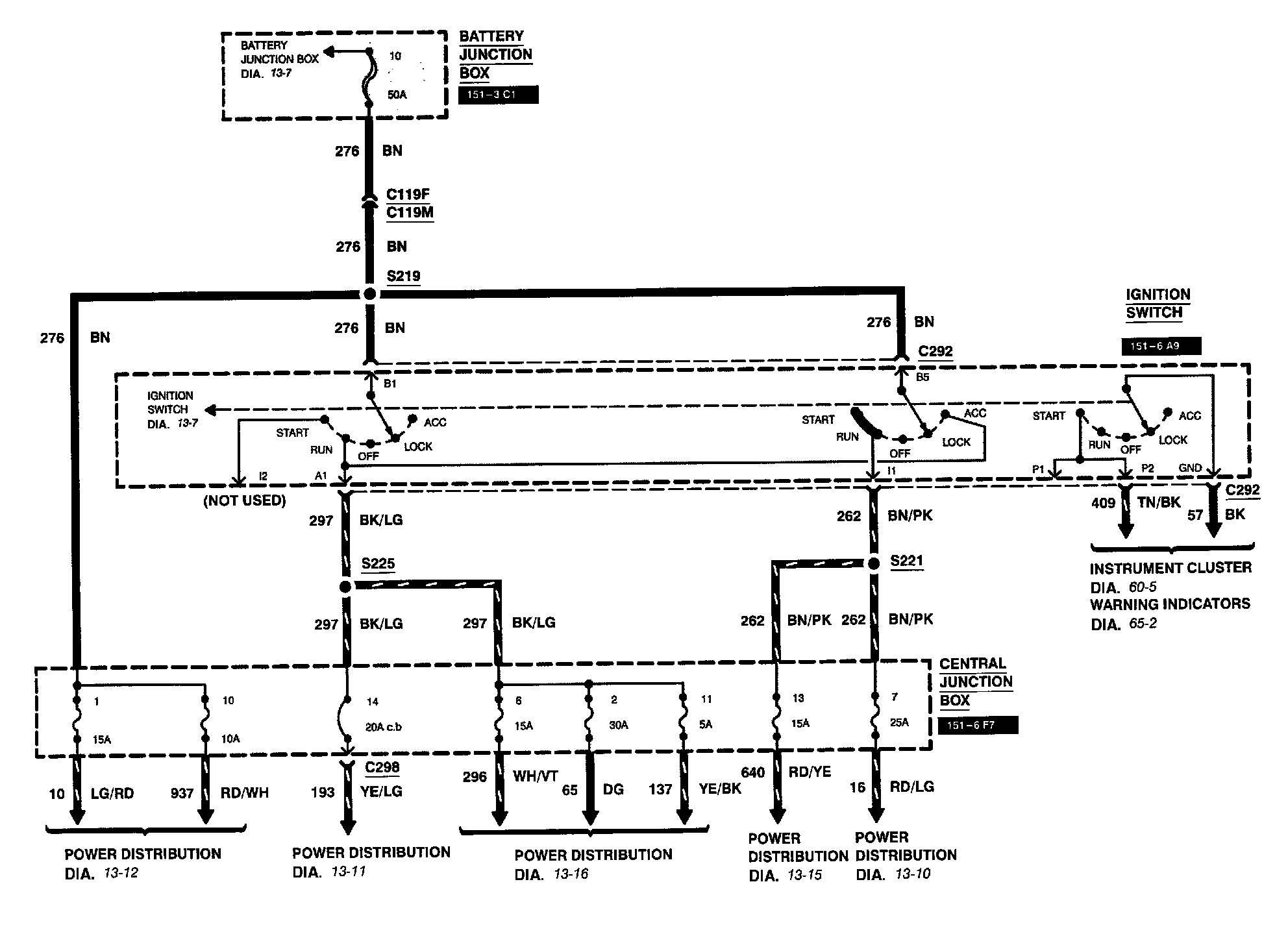

Diagram 13-7:

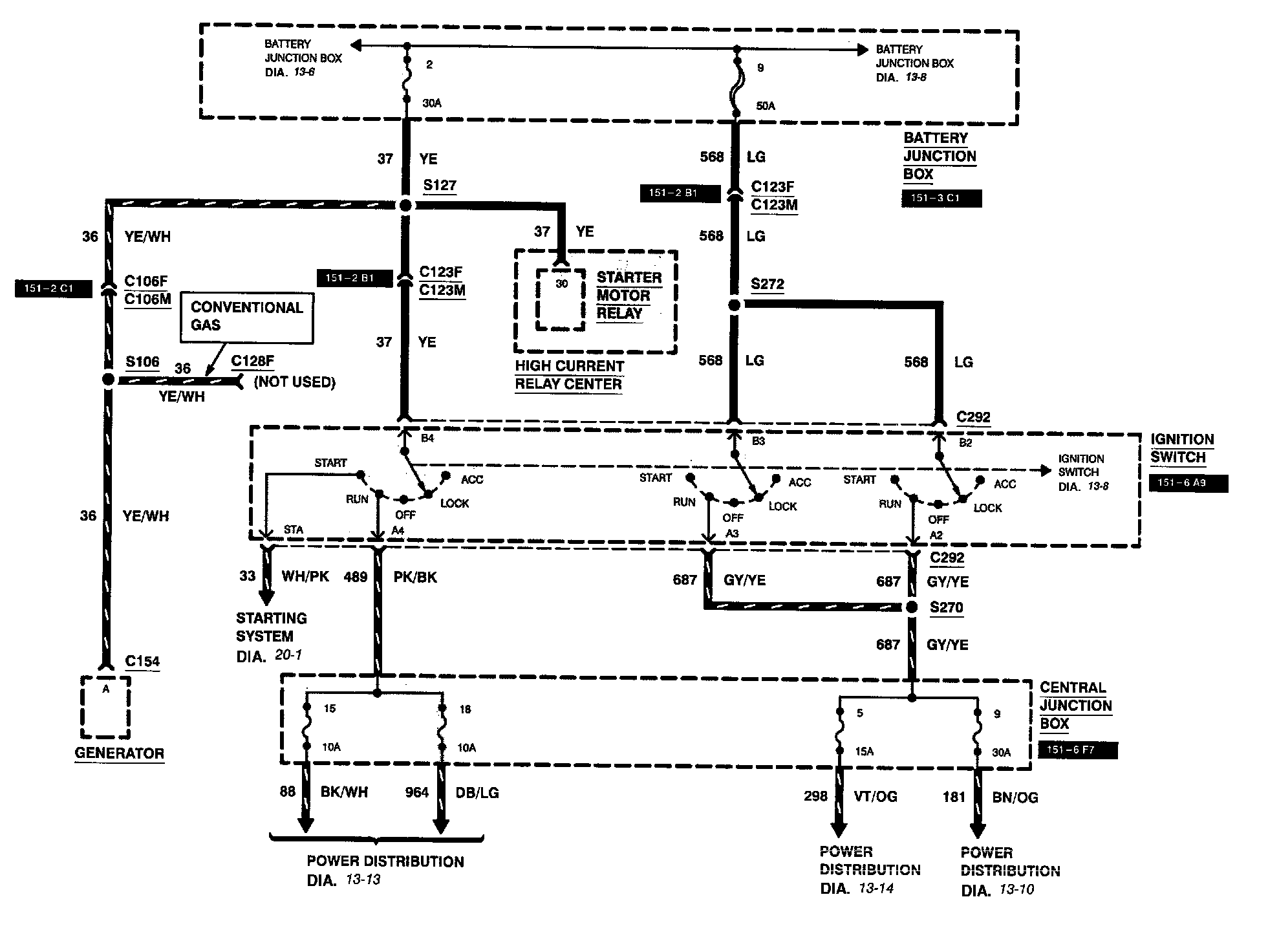

Diagram 13-8:
