Brakes and Traction Control: Description and Operation

Part 1 Of 2:

Part 2 Of 2:

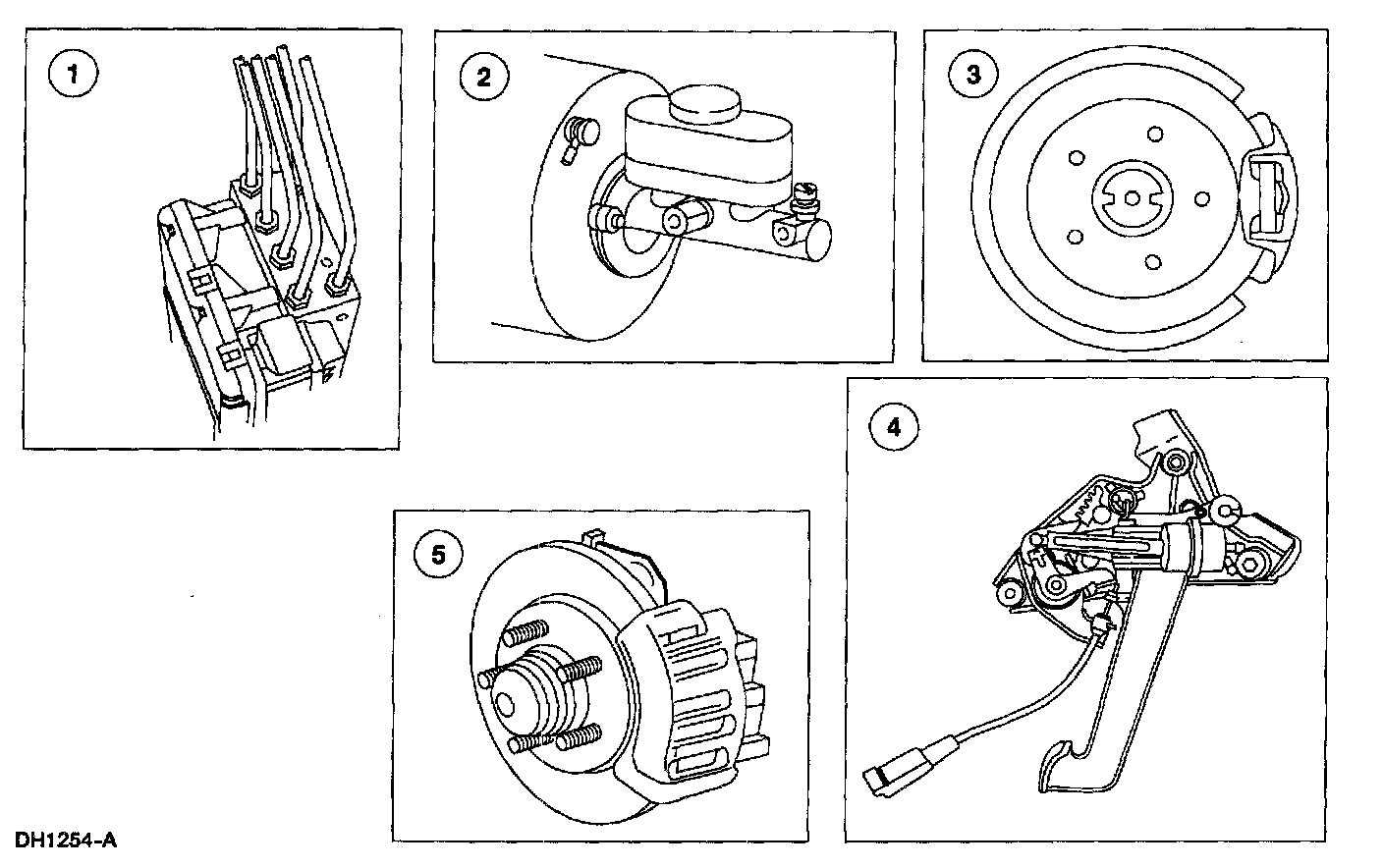

The vehicle is equipped with a vacuum-assisted power braking system.

The braking system is a front-to-rear split hydraulic system.

The front wheel brakes utilize a dual piston brake caliper and disc brake system.

The rear brakes utilize a single piston brake caliper and disc brake system.

The parking brake system is a mechanical system that activates a shoe-and-drum system within the rear brake disc.

A 4-wheel anti-lock brake system is standard equipment.
