Lumbar Seat Control Switch

REMOVAL
1. Disconnect the battery.
2. Remove the seat.

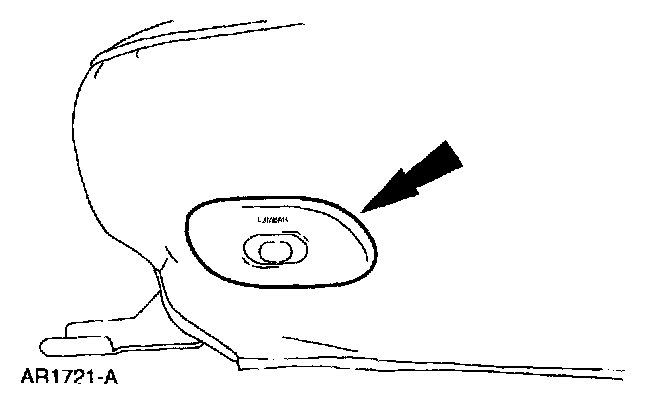

3. Remove the cover.

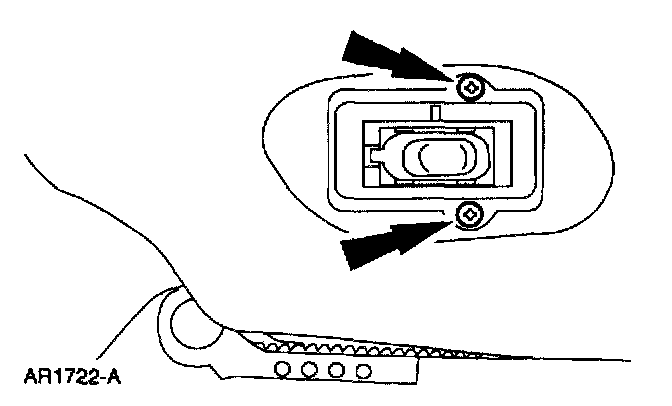

4. Remove the screws.

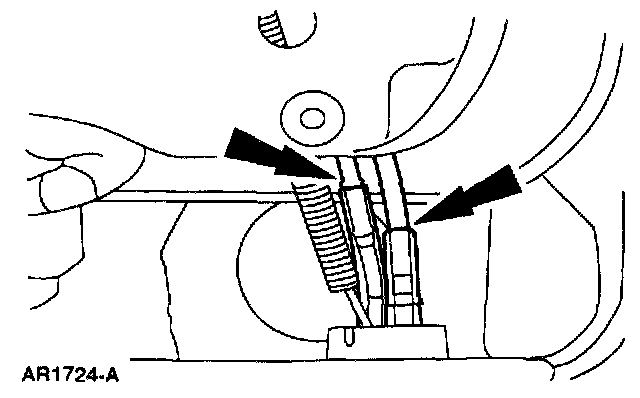

5. Disconnect the connector.







6. Disconnect the vacuum tubes.

NOTE: Mark the tubes before disconnecting.

INSTALLATION
1. To install, reverse the removal procedure.
