Front Wiper Motor

REMOVAL
1. Disconnect the battery ground cable.

NOTE: Make sure that the wiper motor is in the park position.

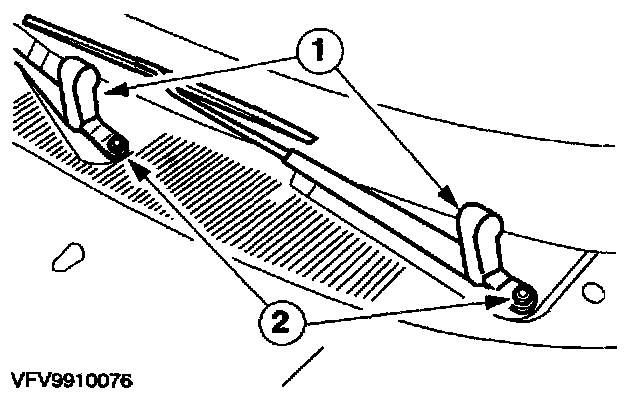

2. Remove the wiper arms.
1 Remove the plastic covers.
2 Remove the nuts.
3. Open the hood.

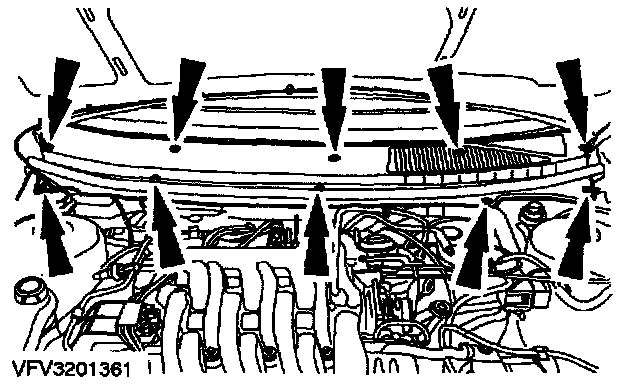

4. Remove the cowl grille.
^ Remove the screw covers.
^ Remove the bolts.
^ Remove the weatherseal.
^ Disconnect the cowl grille at the rear and remove it.

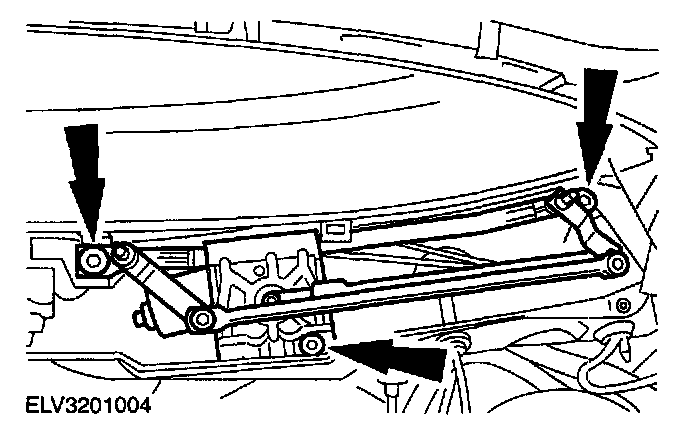

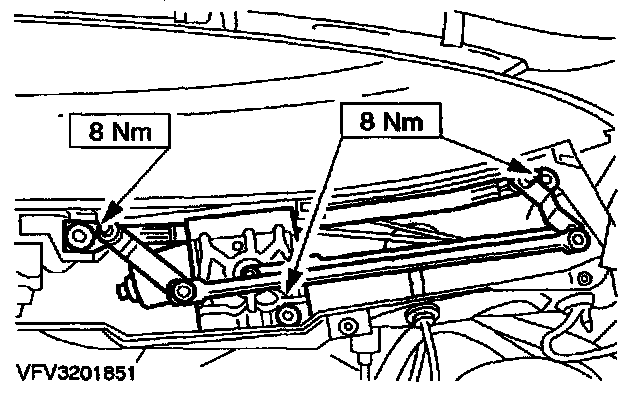

5. Remove the wiper motor with the linkage and disconnect the wiper motor electrical connector.

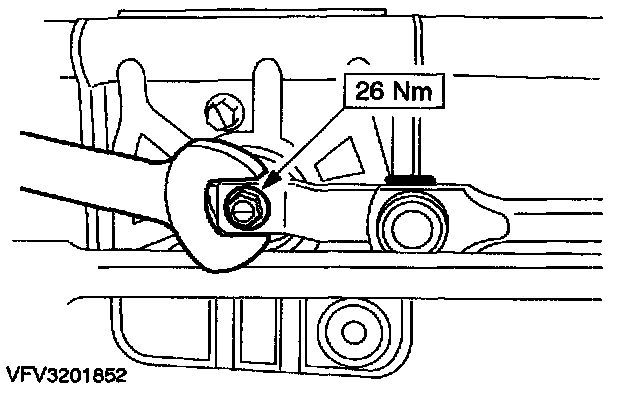

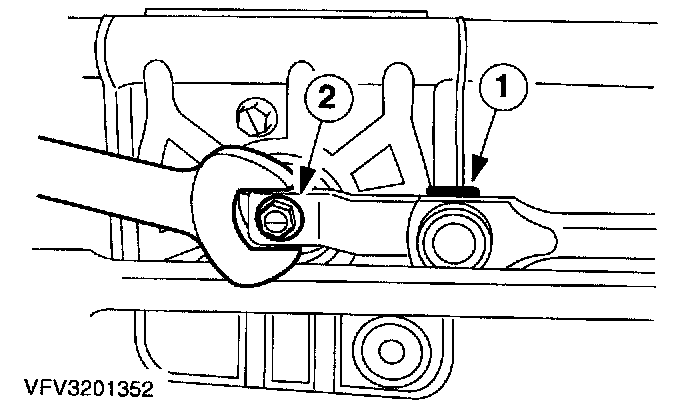

6. Mark the position of the wiper crank (1) and remove the nut (2).
7. Remove the wiper crank by moving up and down.

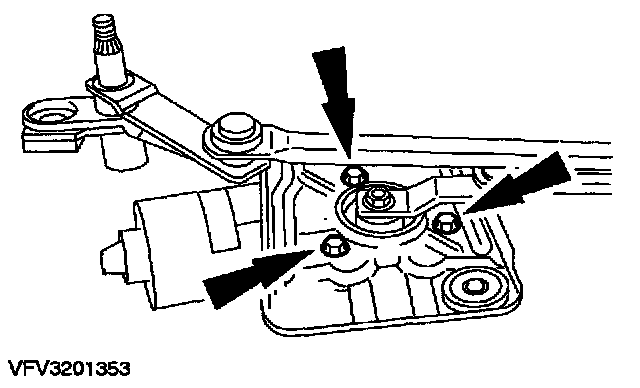

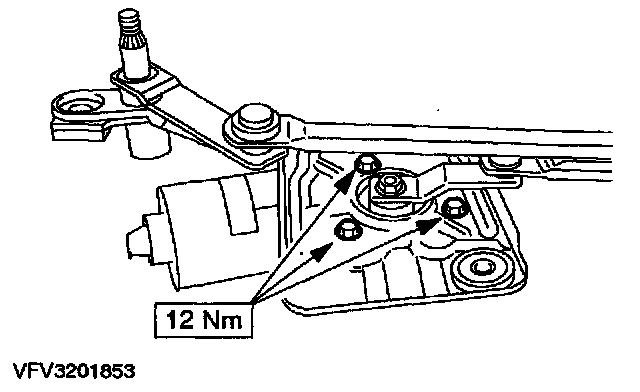

8. Remove the bolts.

INSTALLATION






















1. To install, reverse the removal procedure.
