Fluid Line/Hose: Service and Repair

NOTE: MERCON Automatic Transmission Fluid is being replaced by MERCON V as a service fluid.


Removal

1. Raise and support the vehicle.





2. CAUTION: Do not unscrew the connecting fitting from the transaxle housing.

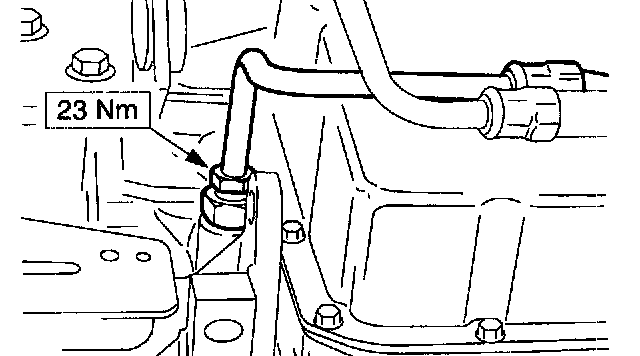

Disconnect the fluid cooler return tube from the automatic transaxle.

NOTE: Collect escaping fluid in a drain pan.

^ Unscrew the union.
^ Unclip the tube from the bracket.





3. CAUTION: Do not unscrew the connecting fitting from the transaxle housing.

Disconnect the fluid cooler feed tube from the automatic transaxle.





4. CAUTION: Hold the screw connection steady.

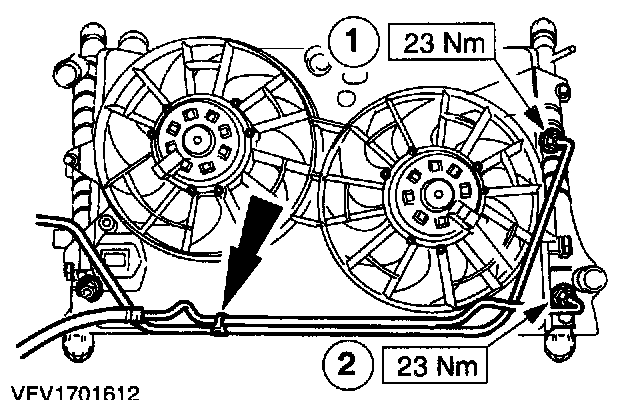

Remove the fluid cooler tubes (radiator shown removed).
1 Disconnect the feed tube.
2 Disconnect the return tube.

Installation
1. Install new O-ring seals.











2. CAUTION: Hold the screw connection steady.

To install, reverse the removal procedure.
1 Feed tube
2 Return tube
3. CAUTION: Use of any transmission fluid other than the recommended fluid, may cause transaxle damage.

Check the automatic transmission fluid level. Add MERCON or MERCON V ATF or equivalent meeting FORD specification.
