Canister Purge Control Valve: Service and Repair

REMOVAL
1. Remove the air cleaner outlet tube.







2. Remove the intake air resonator.
3. Remove the ignition coil.

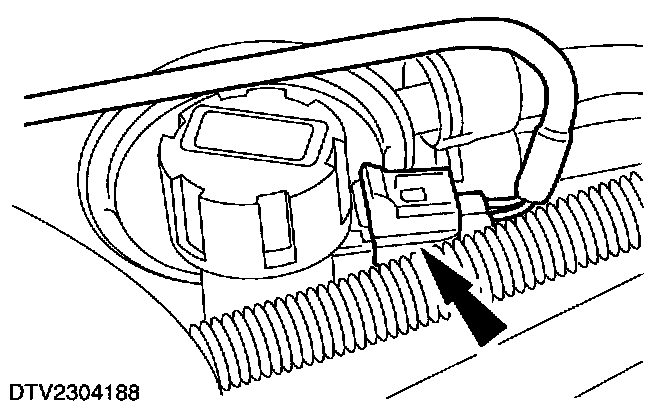

4. Disconnect the vapor management valve electrical connector.

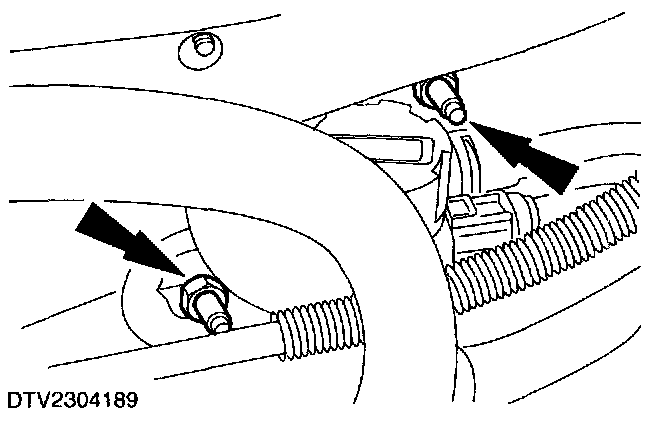

5. Remove the vapor management valve nuts.

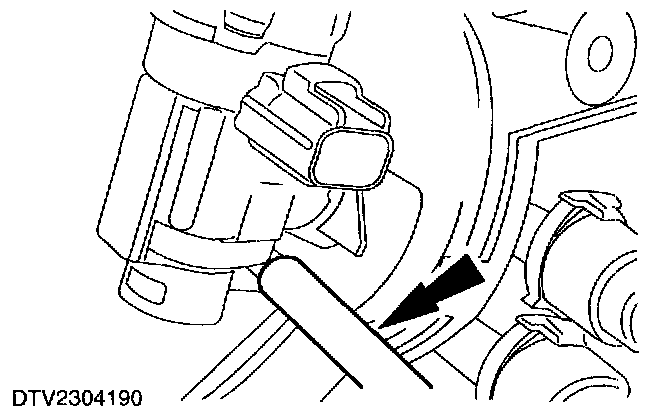

6. Disconnect the vacuum hose from the vapor management valve.

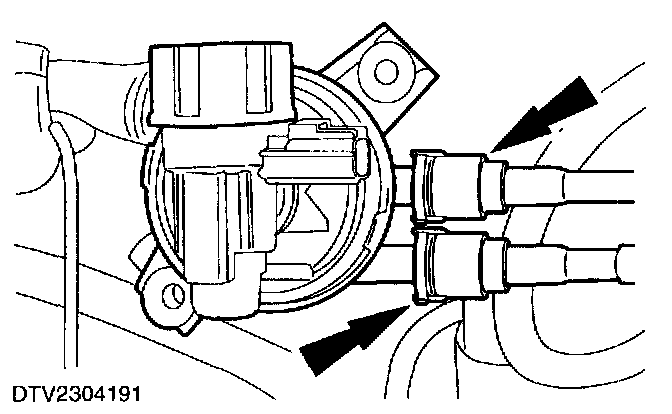

7. Disconnect the vapor tubes and remove the vapor management valve.

INSTALLATION
1. To install, reverse the installation procedure.
