Mercury
>>
1999
>>
Cougar V6-153 2.5L DOHC VIN L SFI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Pinpoint Tests
>>
KM - Wide Open Throttle (WOT) A/C Cutoff Relay, A/C Circuits
>>
Pinpoint Test Schematics
Pinpoint Test Schematics

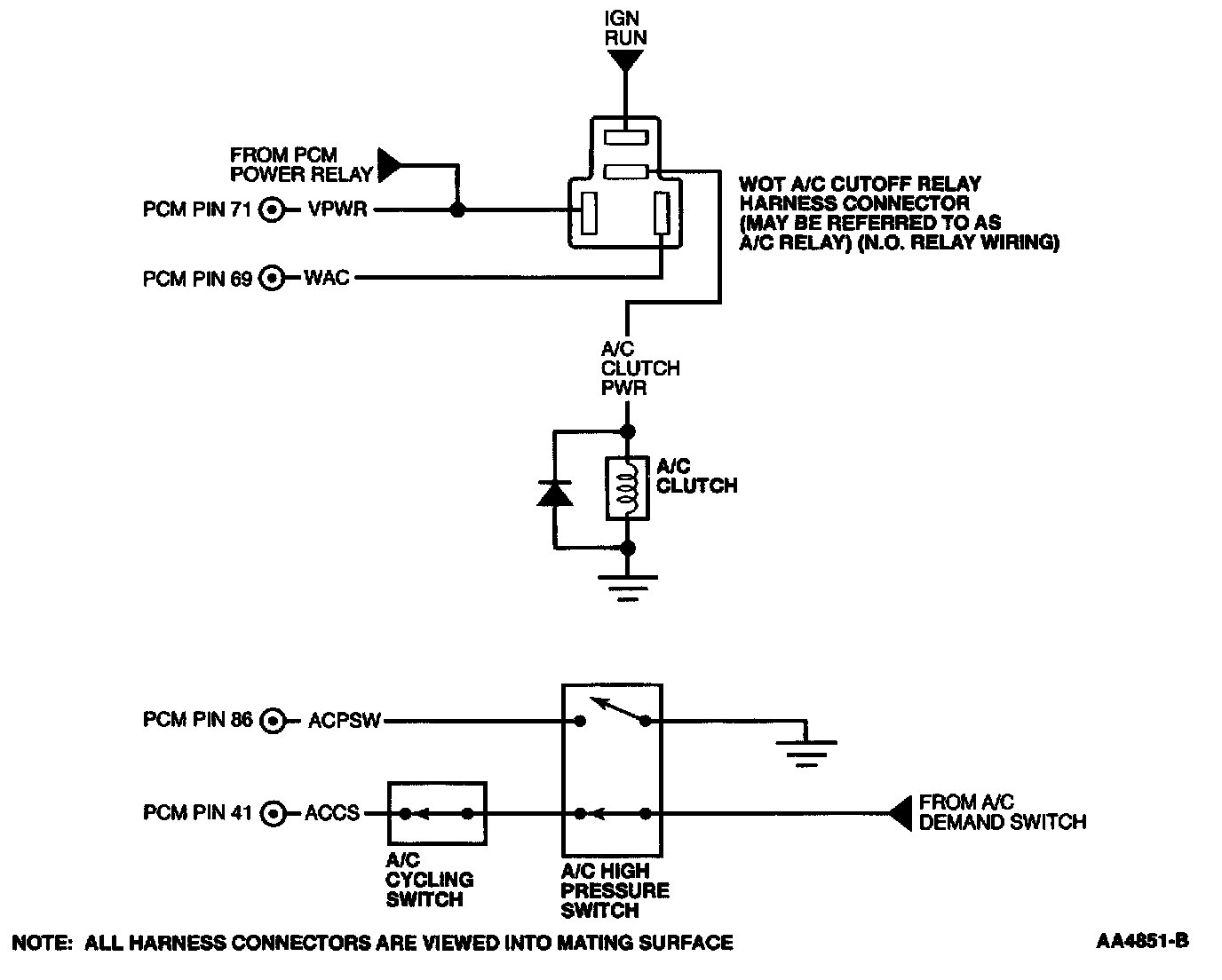

Models Without Returnless Fuel System:

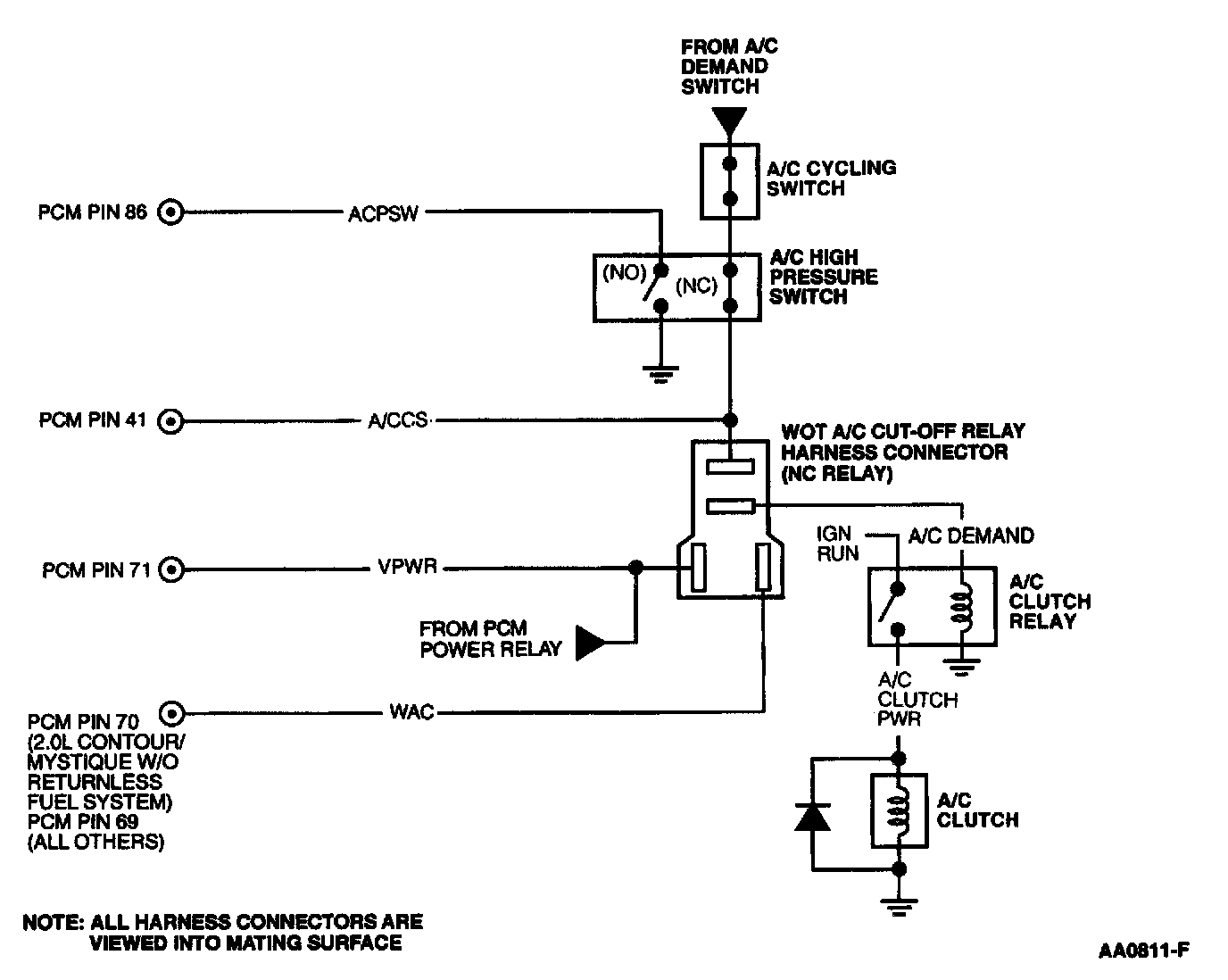

Models With Returnless Fuel System:
