Home >> Mercury >> 1999 >> Cougar V6-153 2.5L DOHC VIN L SFI >> Repair and Diagnosis >> Power and Ground Distribution >> Relays and Modules - Power and Ground Distribution >> Relay Box >> Diagrams >> Battery Junction Box >> Box Side View

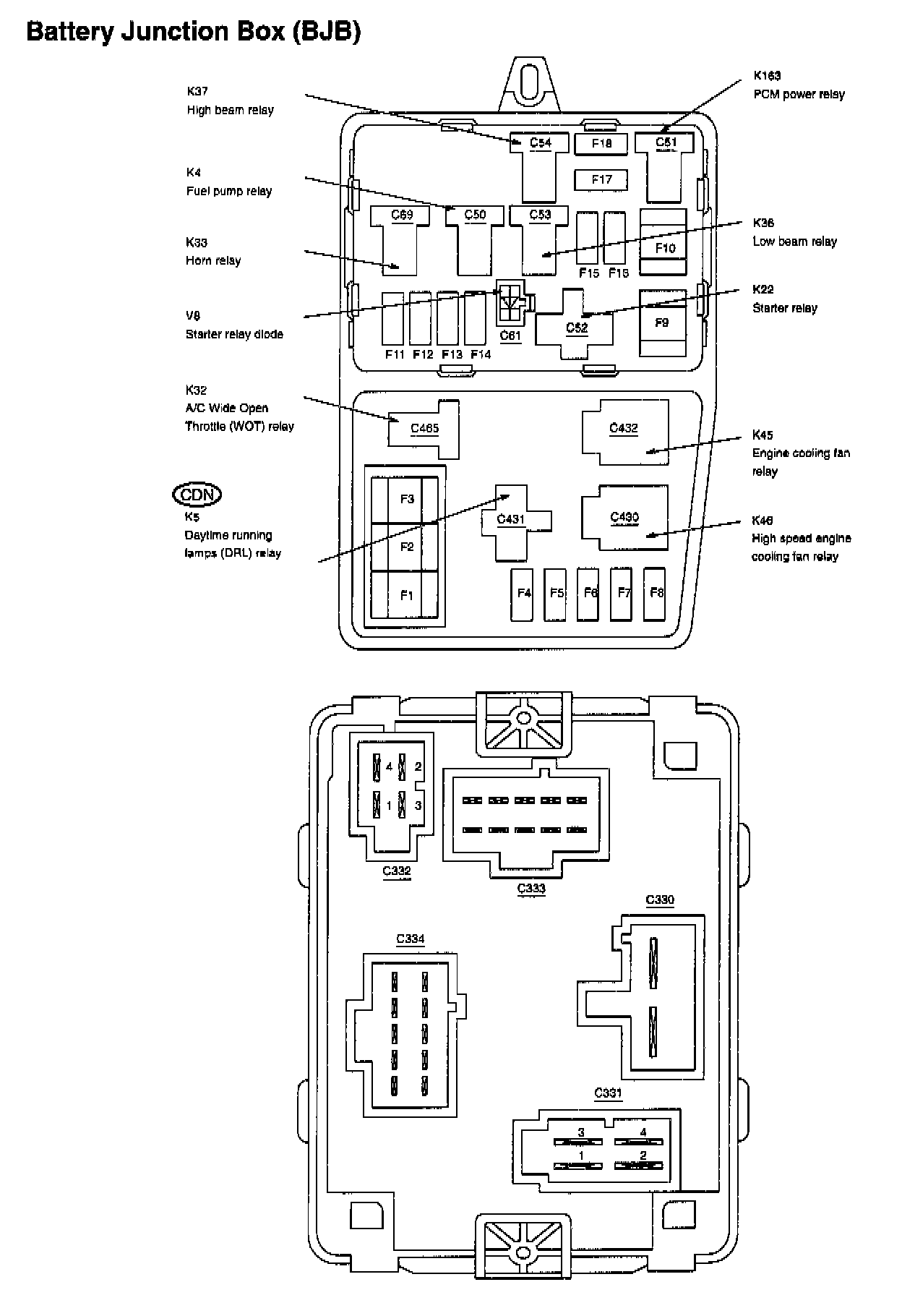

Box Side View

BJB Built Before May 24th 1999:
