Blower Motor Resistor: Service and Repair

REMOVAL







1 Remove the footwell upper trim panel (passenger side).
^ Remove the pushpins.

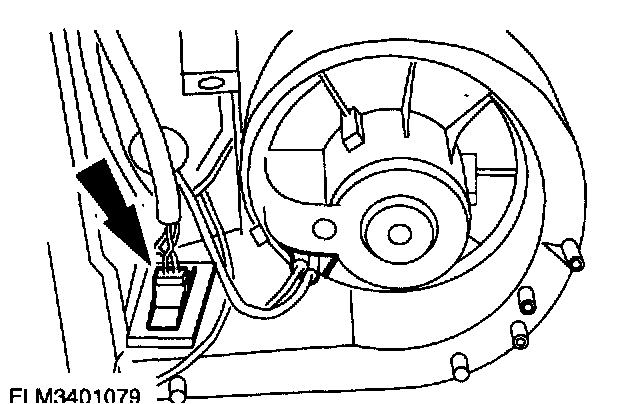

2. Disconnect the blower motor resistor electrical connector.







3. Remove the blower motor resistor.

INSTALLATION
1. To install, reverse the removal procedure.
