Passenger

REMOVAL
1. Open glove compartment, press the sides inward and lower the glove compartment to the floor.

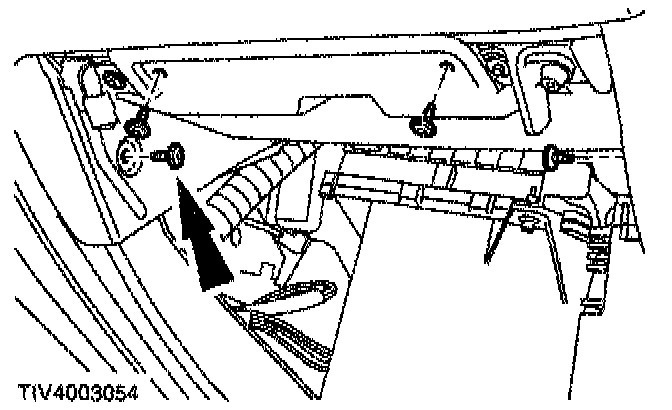

2. Remove the screws from the glove compartment top.

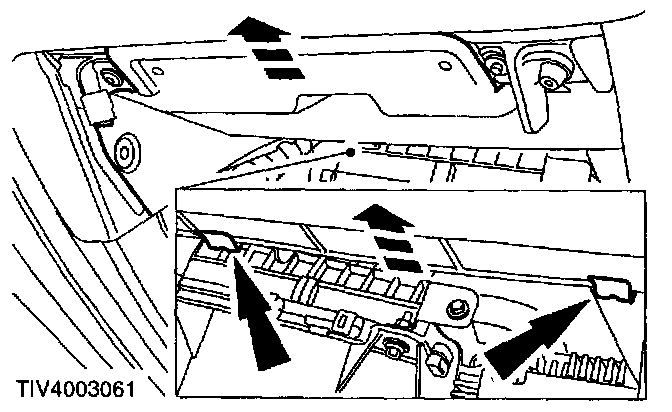

3. Remove the glove compartment top.

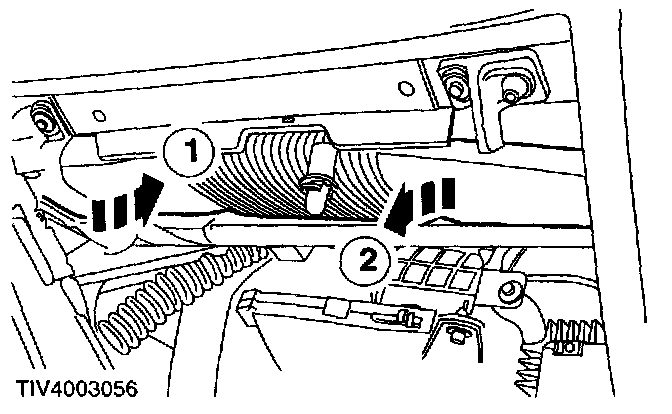

4. Remove the passenger register panel duct.
1 Detach the duct from the heater/evaporator core housing.
2 Detach the duct from the panel register and remove.

INSTALLATION
1. To install, reverse the removal procedure.
