Mercury
>>
1999
>>
Cougar V6-153 2.5L DOHC VIN L SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
>>
System Diagram
>>
Bearing and Thrust Washer Location
Bearing and Thrust Washer Location
1 Of 2:
2 Of 2:

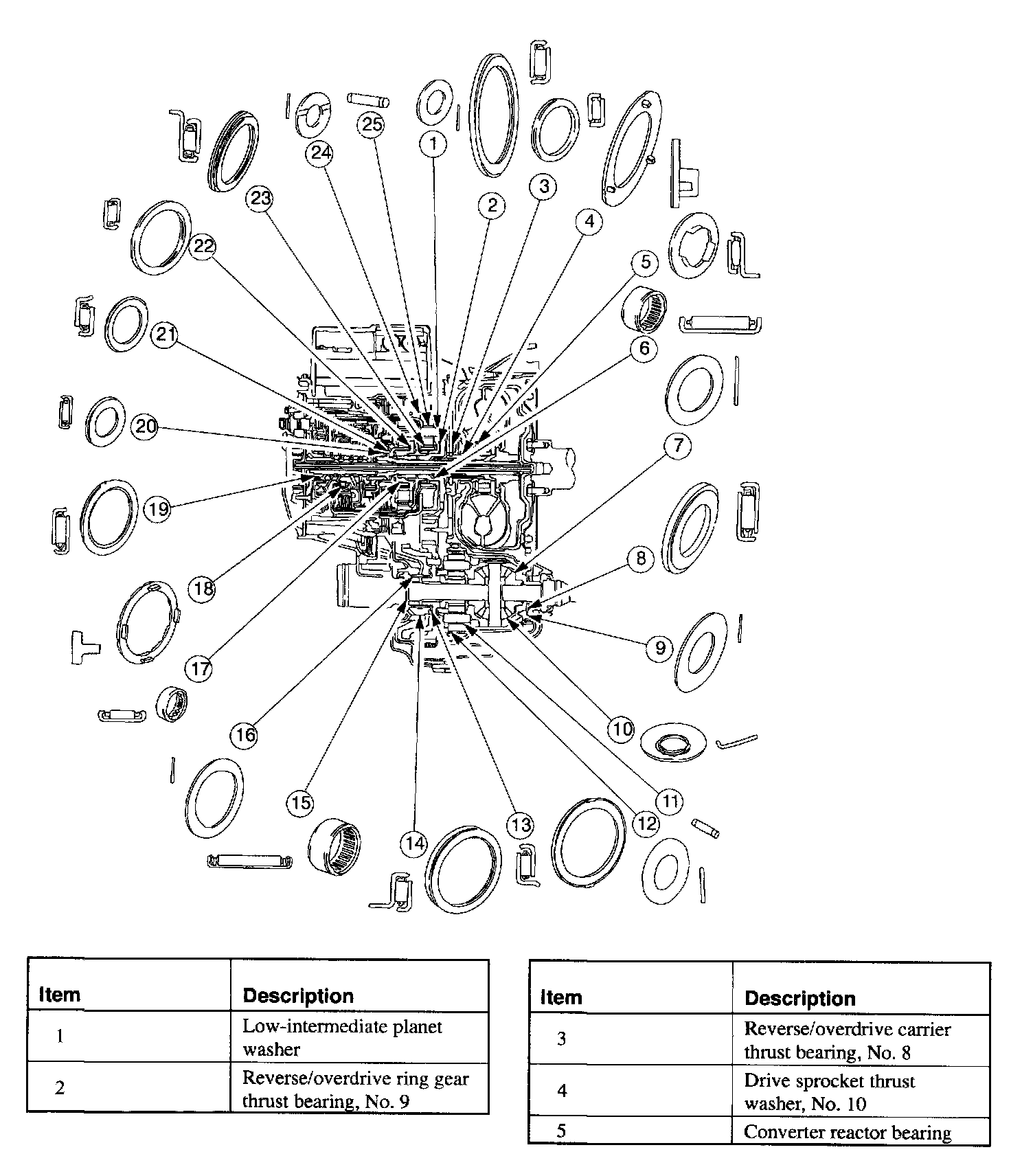

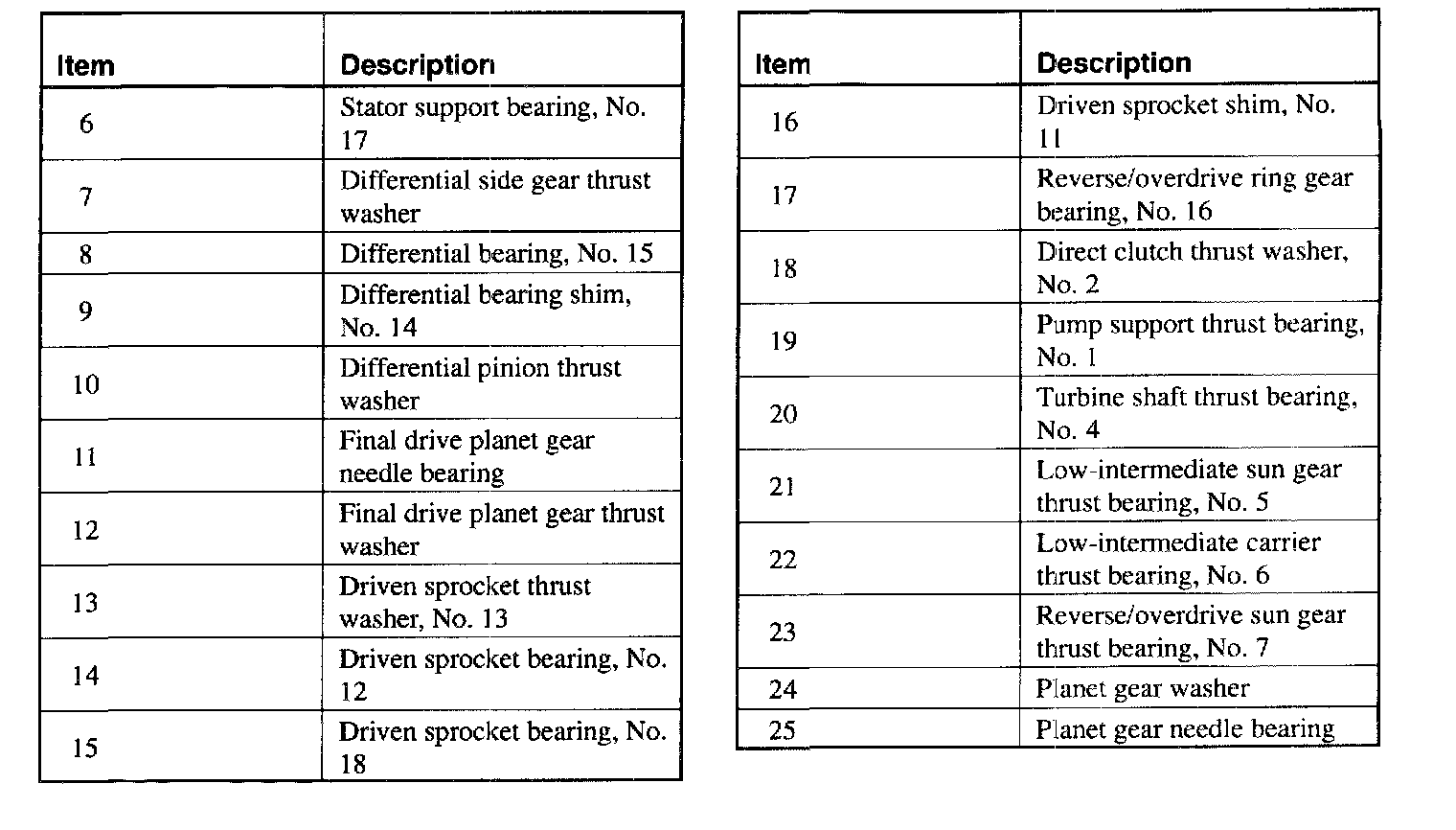

Bearing and thrust washer location
