Mercury
>>
1999
>>
Cougar V6-153 2.5L DOHC VIN L SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power and Ground Distribution
>>
Grounding Point
>>

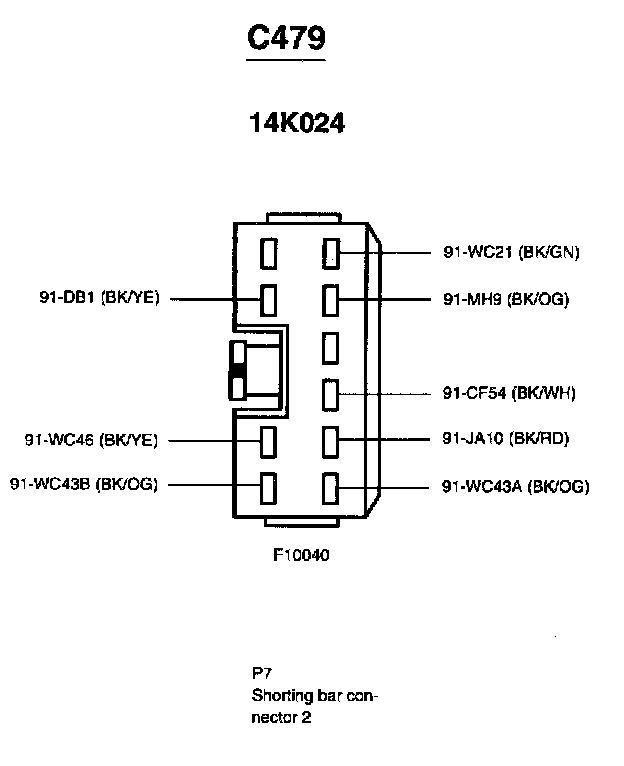

Shorting Bar Connector 2
Shorting Bar Connector 2
