Front

Removal
1. Loosen the wheel nuts.
2. Raise and support the vehicle.
3. Remove the wheel.

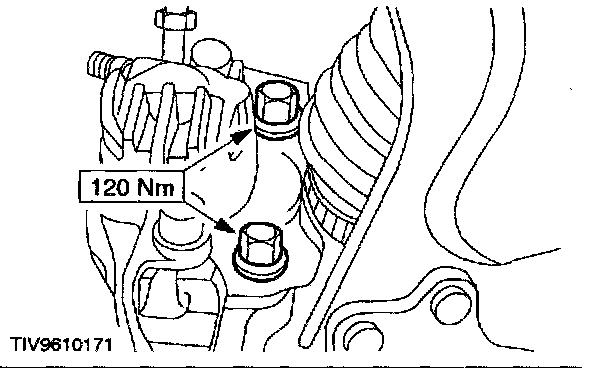

4. Detach the caliper and anchor plate assembly.
- Secure the caliper and anchor plate assembly out of the way to prevent damage to the flexible brake hose.

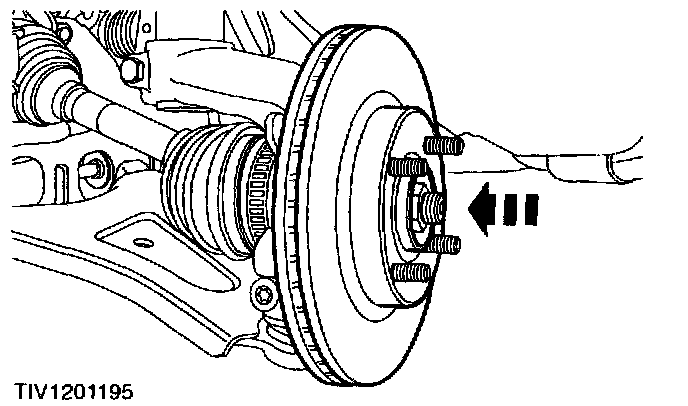

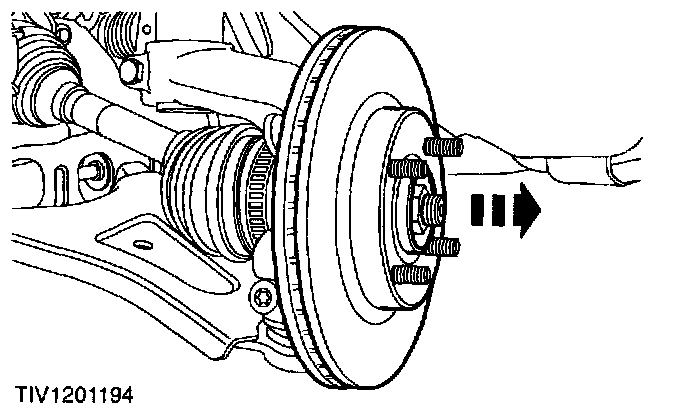

5. Remove the brake disc.
- Remove the retainers (if equipped).

Installation











1. To install, reverse the removal procedure.
