Home >> Mercury >> 1999 >> Cougar V6-153 2.5L DOHC VIN L SFI >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Pinpoint Tests >> D DTC B1484 Brake Pedal Input Open Circuit >> With Traction Control

With Traction Control

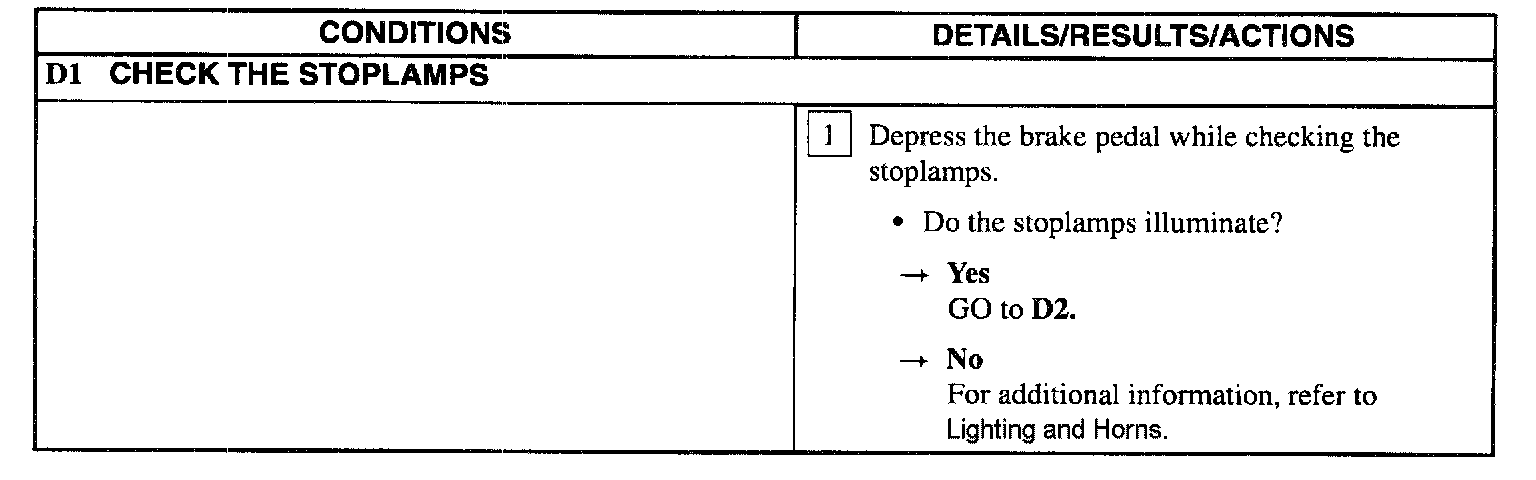

Test D1:

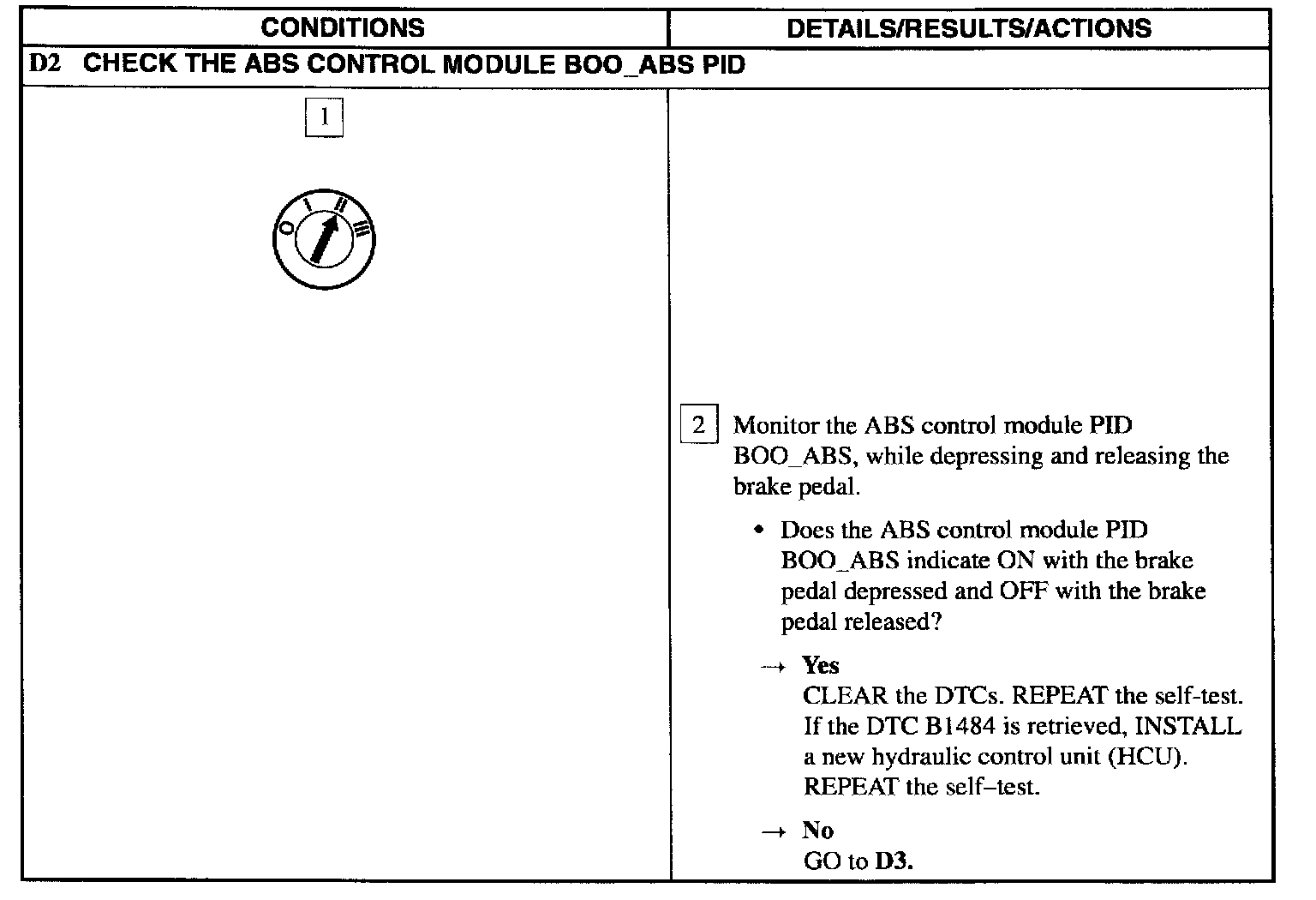

Test D2:

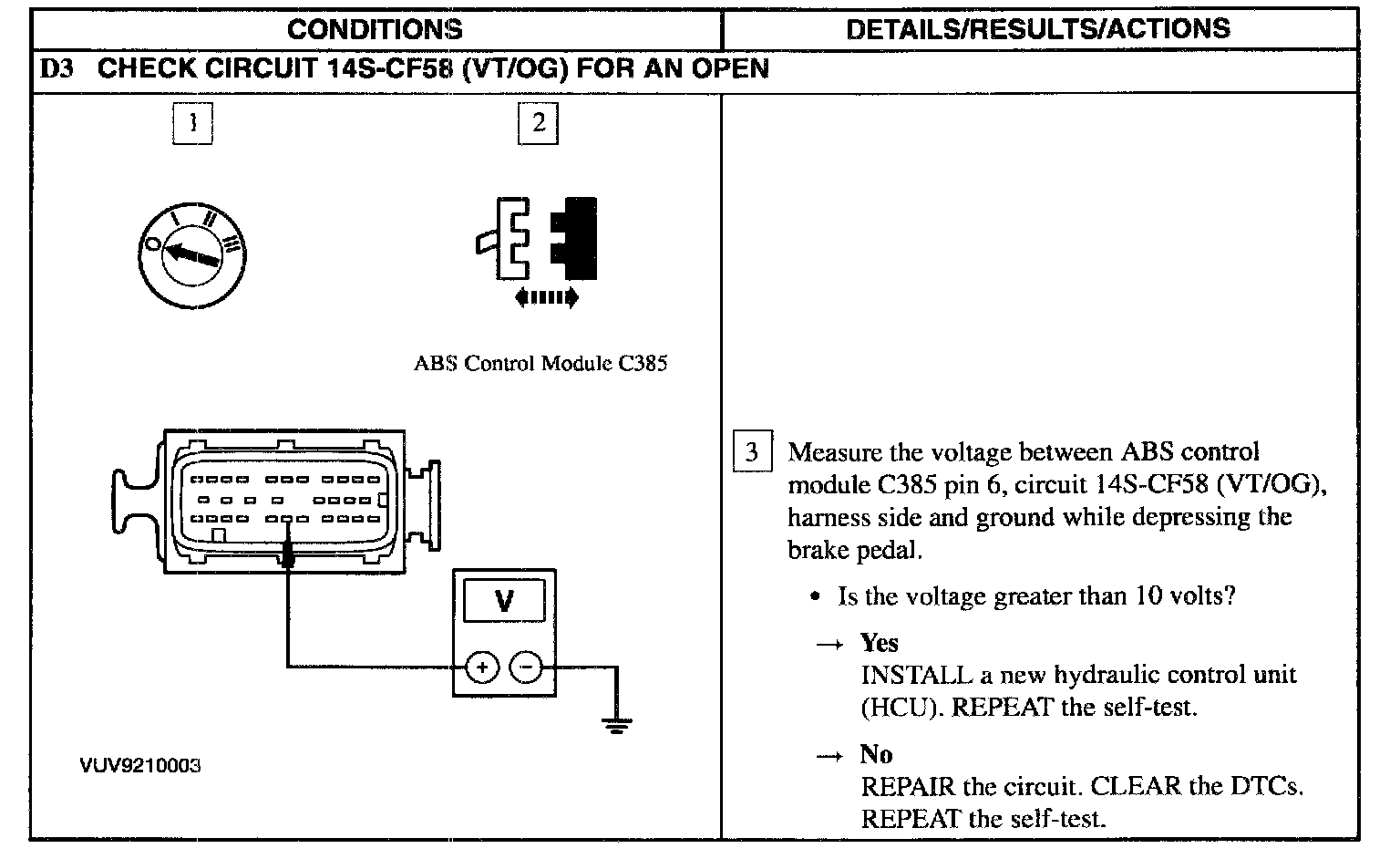

Test D3:
