Removal

NOTE: The clutch pedal and the clutch pedal bracket are replaced as an assembly.





1. Disconnect the battery ground cable.





2. Disconnect the clutch pedal position (CPP) switch electrical connector.





3. Loosen the CPP switch locknut and remove the CPP switch.





4. Remove the two starter clutch pedal position (SCPP) switch nuts and the SCPP switch.

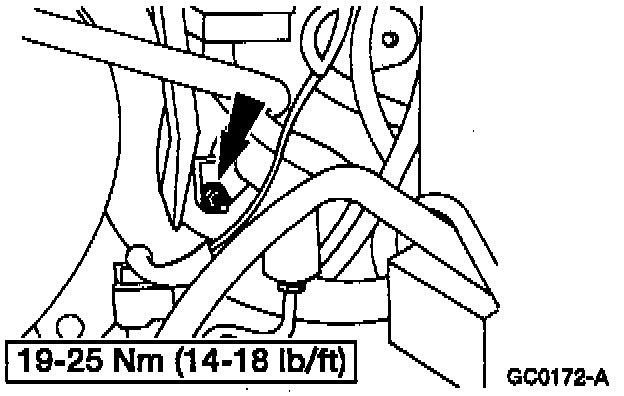

5. Remove the clutch master cylinder nut from the engine compartment.





6. Remove the clutch master cylinder nut from inside the passenger compartment.





7. Remove the clutch pedal bracket nut and the clutch pedal assembly.
