Installation

1. Align the clutch pedal to equalizer bar to clutch release lever rod with the clutch master cylinder and install the clutch pedal assembly.

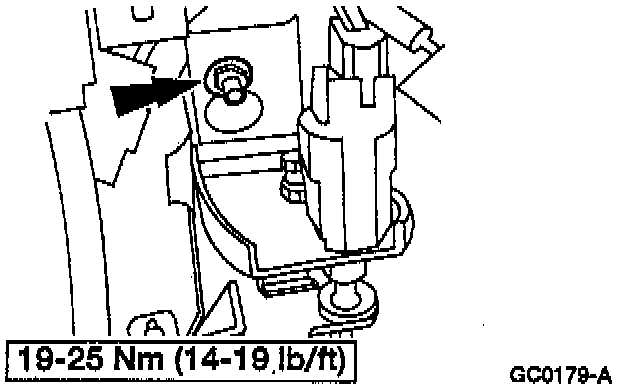

2. Install the clutch pedal bracket nut.

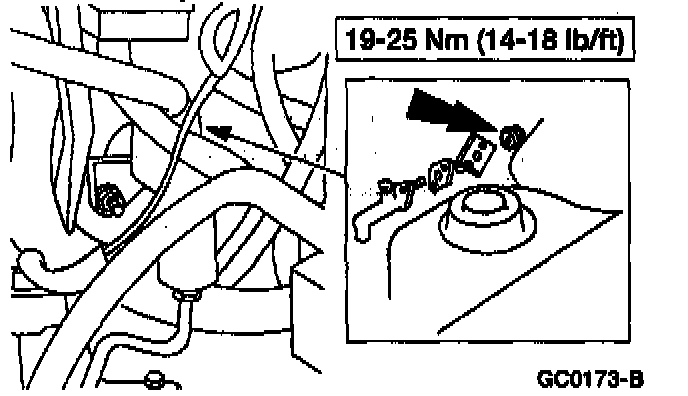

3. Install the clutch master cylinder nut on the engine compartment side.

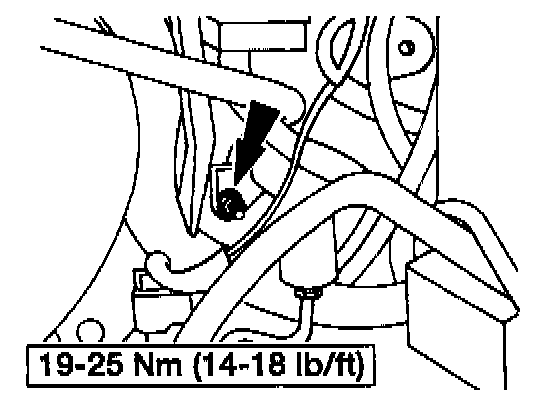

4. Install the clutch master cylinder nut on the passenger compartment side.

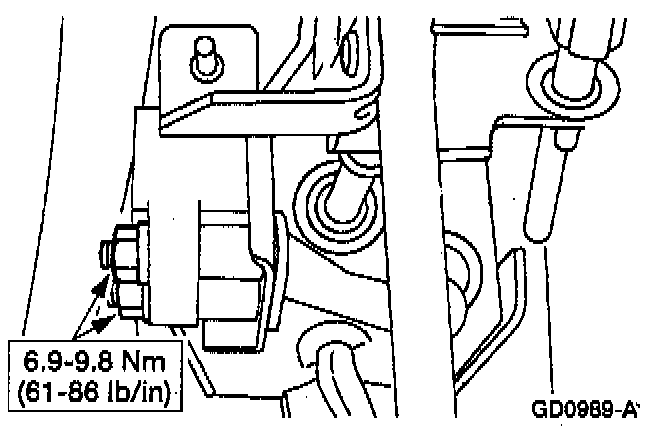

5. Install the two SCPP switch nuts.

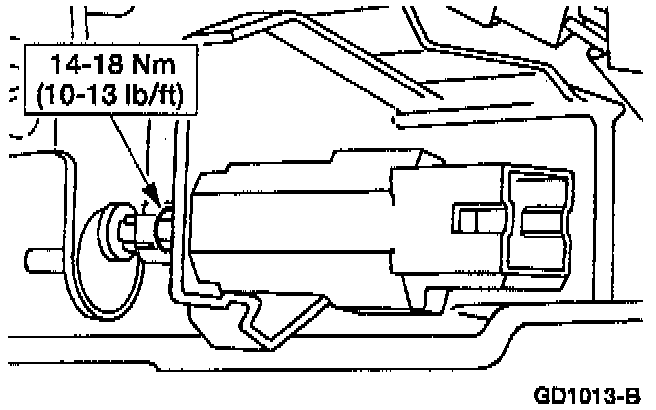

6. Install the CPP switch and the CPP switch locknut.

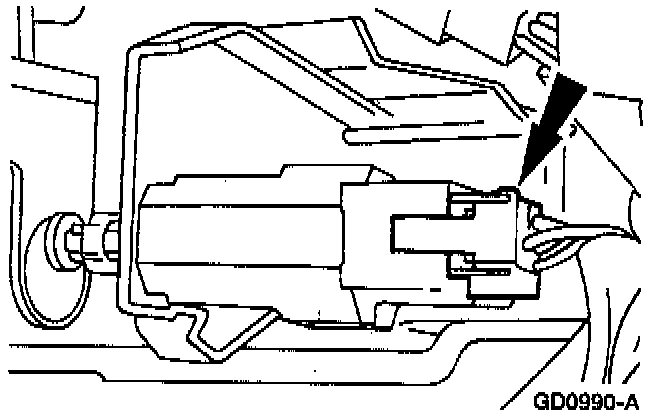

7. Connect the clutch pedal position (CPP) switch electrical connector.

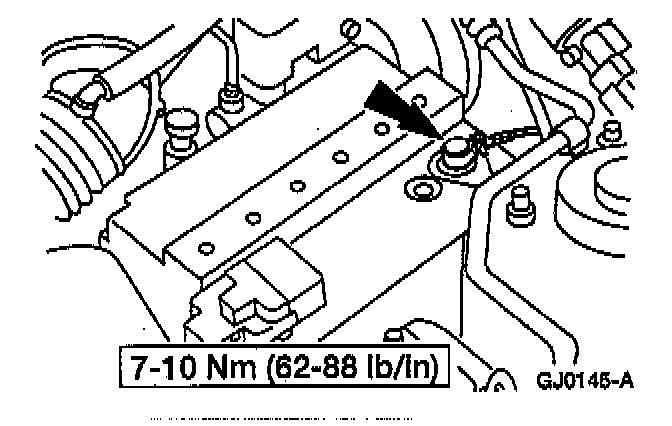

8. Connect the battery ground cable.
9. Check the clutch pedal adjustments.
