Installation

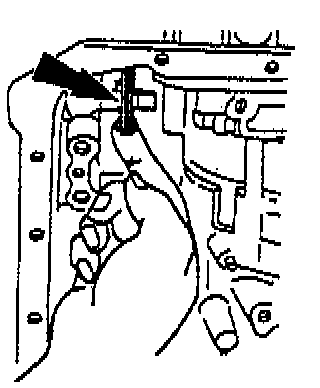

1. Install the throttle valve control actuating cable into the transaxle; then install the throttle valve control actuating cable bolt.





2. Connect the throttle valve control actuating cable to the throttle control lever.

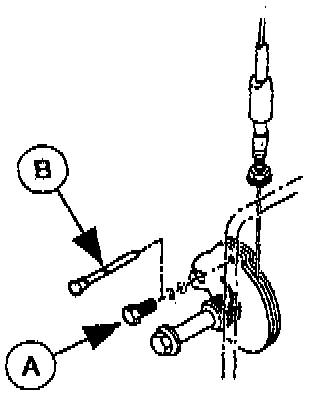

3. Remove the (A) throttle control lever pin bolt, then install a (B) pin into the hole on the throttle control lever.
4. Install the main control valve body.

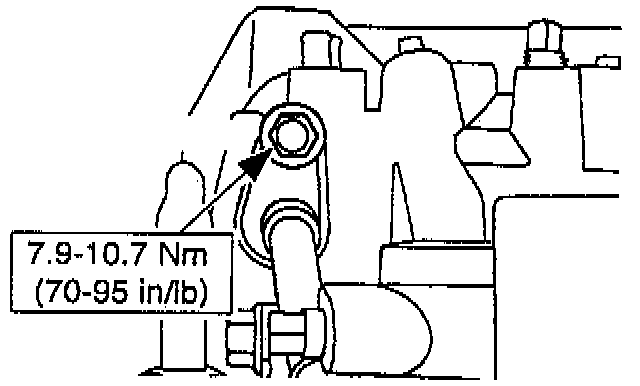

5. Remove the (B) pin from the throttle control lever and install the (A) throttle control lever pin bolt.
6. Install the throttle valve control actuating cable to the throttle control lever.
7. Adjust line pressure.
