Tube Boot

REMOVAL

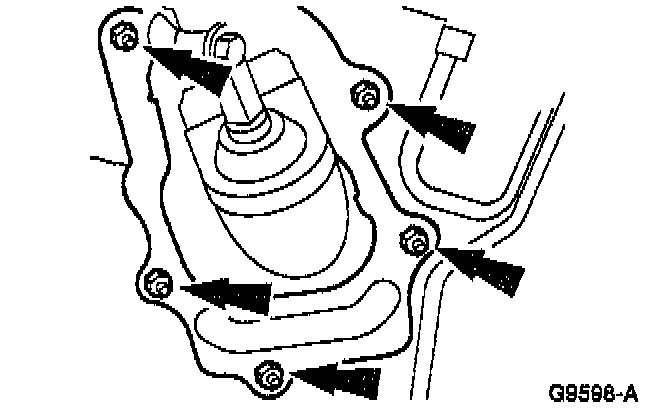

1. Remove the five steering column tube nuts.

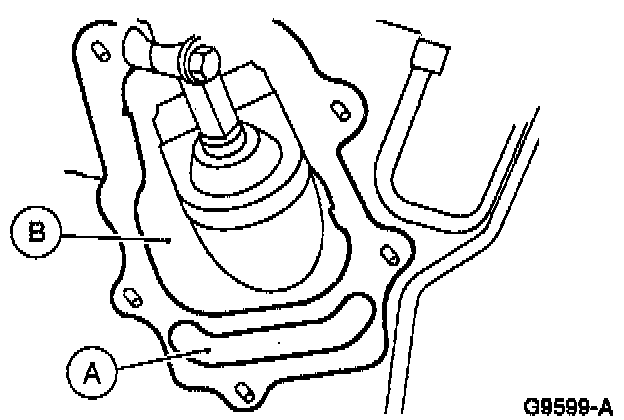

2. Remove the (A) slotted steering column tube boot and the (B) inner steering column tube boot.





3. Remove the steering column input shaft coupling to steering gear input shaft and control bolt and move steering column intermediate shaft coupling aside.
4. Remove the outer steering column tube boot from the base of the steering column.





INSTALLATION
To install, reverse the removal procedure.
