Throttle Cable/Linkage: Adjustments

CABLE ADJUSTMENT PROCEDURES

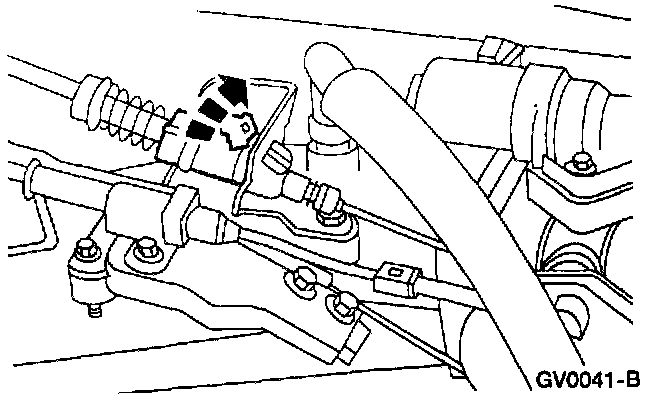

1. Slide the lock button.

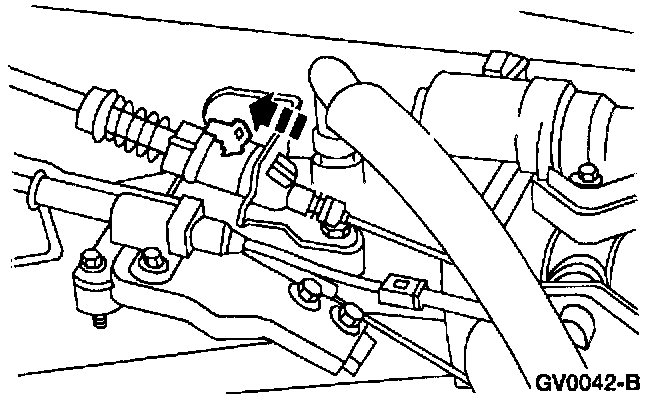

2. Rotate the cable stopper.

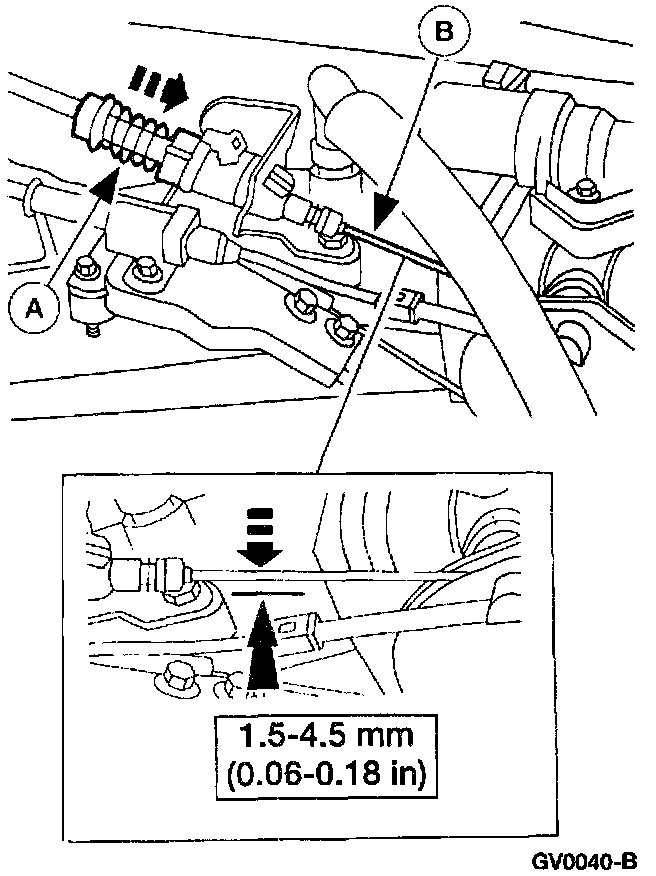

3. Push and hold the (A) spring until the (B) cable free play is within specifications.

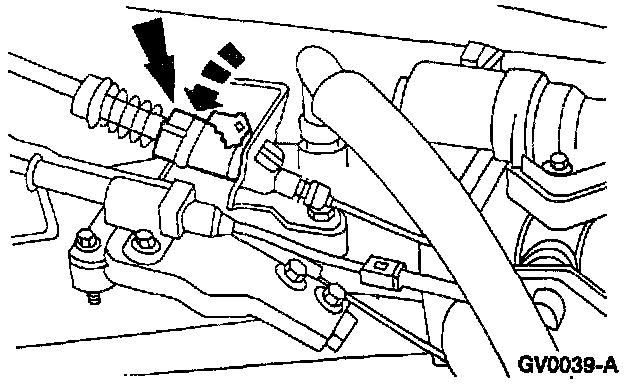

4. Rotate the cable stopper.

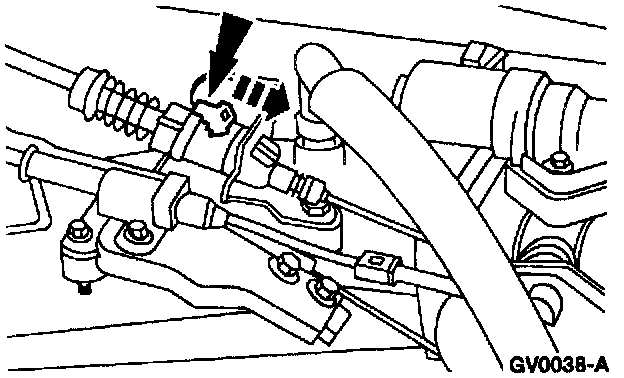

5. Slide the lock button.
