Daytime Running Lamp Resistor: Service and Repair

REMOVAL







1. Disconnect the battery ground cable.

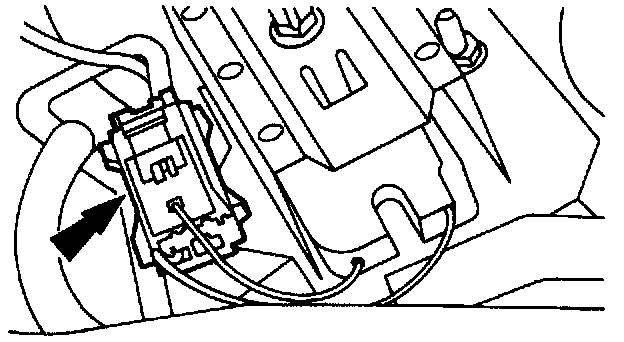

2. Disconnect the Daytime Running Lamp (DRL) resistor electrical connector.

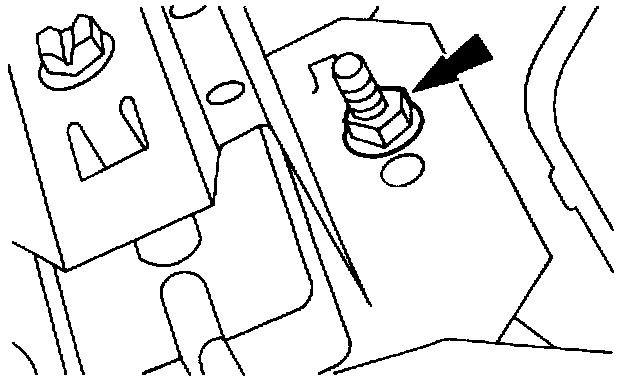

3. Remove the DRL resistor nut and the DRL resistor.







INSTALLATION
1. To install, reverse the removal procedure.
