Vacuum Reservoir HVAC: Service and Repair

REMOVAL
1. Remove the A/C evaporator housing.

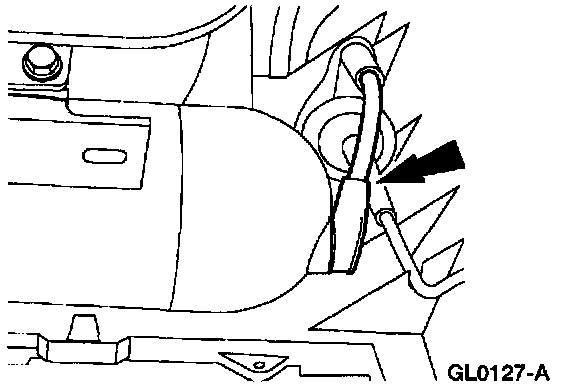

2. Disconnect the A/C vacuum tank vacuum line.

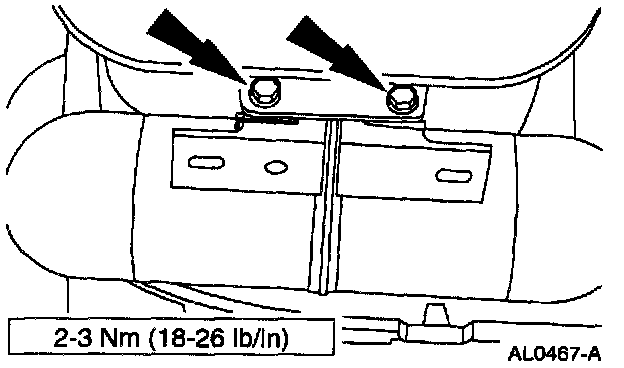

3. Remove the two A/C vacuum tank screws and the A/C vacuum tank.

INSTALLATION
1. To install, reverse the removal procedure.
