A/C Temperature Control - Inoperative
Article No.96-23-6
11/04/96
^ AIR CONDITIONING - TEMPERATURE CONTROL INOPERATIVE - VEHICLES BUILT FROM 3/4/96 THROUGH 6/3/96
^ HEATER - TEMPERATURE CONTROL INOPERATIVE - VEHICLES BUILT FROM 3/4/96 THROUGH 6/3/96
FORD:
1997 ESCORT
LINCOLN-MERCURY:
1997 TRACER
ISSUE:
The temperature control for the heater-A/C may not control the temperature of the discharge air. This may be caused by the temperature control cable not being locked in place onto the heater temperature door shaft.
ACTION:
Install the temperature control cable onto the temperature door shaft. This should make the temperature control functional again. Refer to the following Service Procedure for details.
SERVICE PROCEDURE
1. Turn the temperature control knob to full cold position.
2. Locate the A/C temperature control cable connection to the control door shaft at the heater plenum (on driver's side just above driver's right foot). Refer to Figure 1.

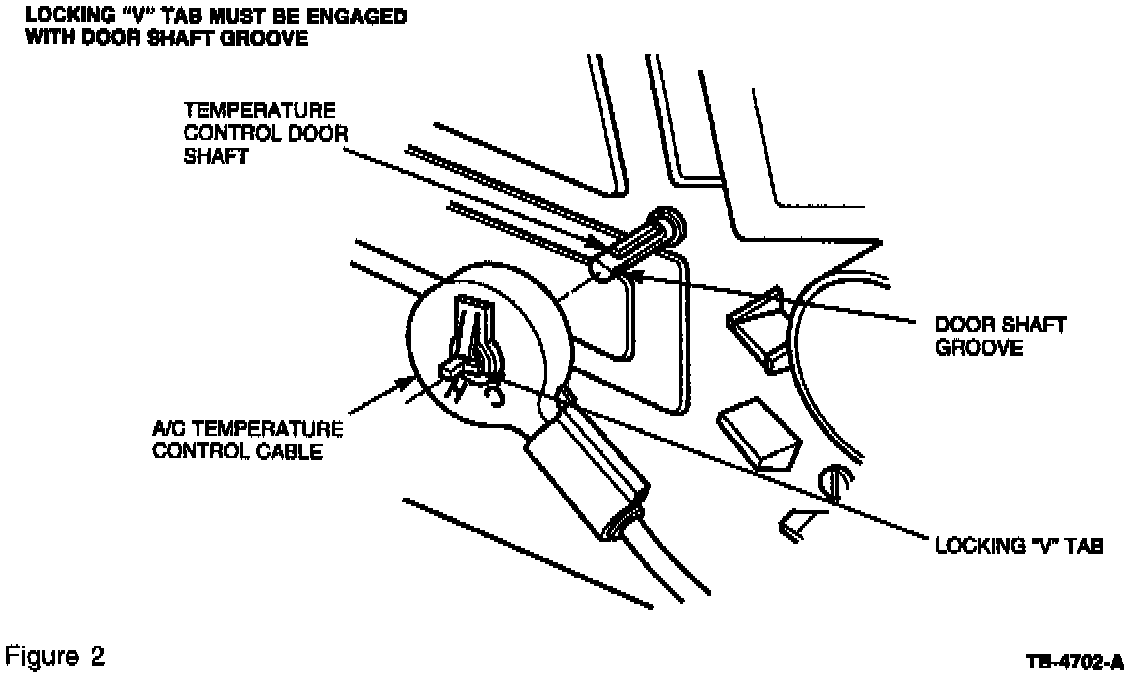

3. Push hard on the A/C temperature control cable (until a click is heard) toward the heater plenum so that the locking "V" tab on the cable will engage and lock into the temperature control door shaft groove. Refer to Figure 2.
NOTE:
WHEN THE LOCKING "V" TAB PROPERLY ENGAGES WITH THE TEMPERATURE CONTROL DOOR SHAFT GROOVE, A CLICK WILL BE HEARD.
4. Pull back on the cable firmly to check for proper engagement. If the cable does not come off, it is locked and the procedure is complete.
5. If the cable continues to be able to be pulled off of the door shaft after following the first 4 Steps, replace the temperature control cable and then follow Steps 1-4.
6. If the new A/C temperature control cable cannot be connected and properly engaged, replace the heater plenum.
PART NUMBER PART NAME
F7CZ-19988-BA Temperature Control Cable
OTHER APPLICABLE ARTICLES: NONE
WARRANTY STATUS: Eligible Under The Provisions Of Bumper To Bumper Warranty Coverage
OPERATION DESCRIPTION TIME
962306A Reattach Cable 0.2 Hr.
962306B Additional Time To 0.5 Hr.
Replace Cable
962306C Additional Time To 2.8 Hrs.
Replace Plenum
DEALER CODING
CONDITION
BASIC PART NO. CODE
19D674 36
OASIS CODES: 208000, 208100, 208300, 208999
