Tracer L4-122 2.0L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Turn Signals
>>
Turn Signal Flasher
Turn Signal Flasher
Electronic Flasher (C296):

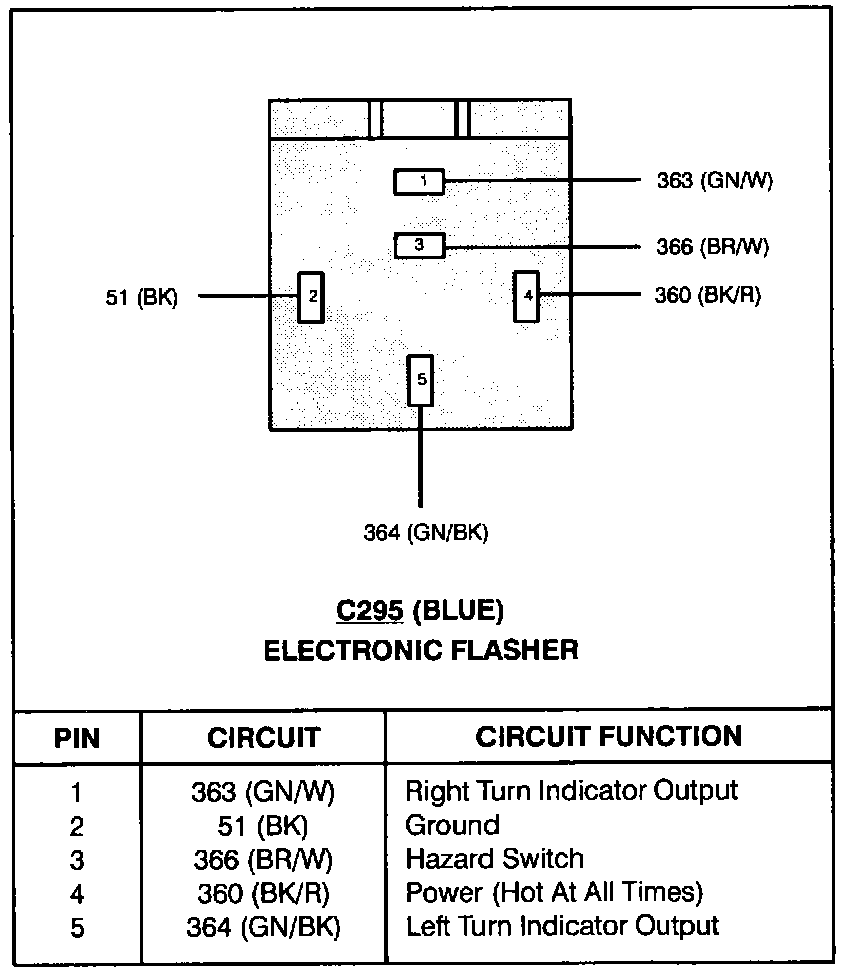

Electronic Flasher (C295):
