Diagrams
>>
Connector Views
>>
Radio/Stereo
>>
Integrated Control Panel Jumper
Integrated Control Panel Jumper

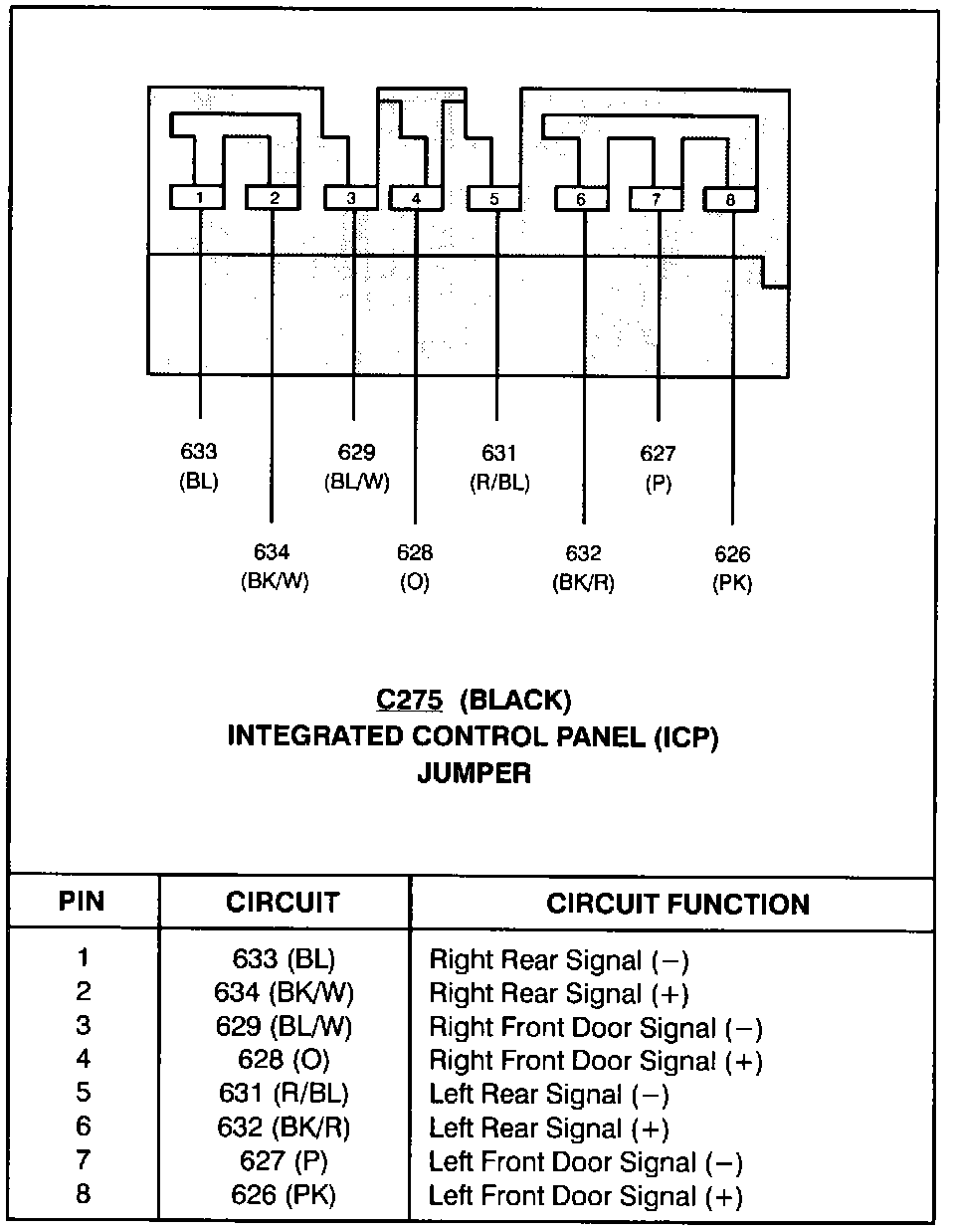

Integrated Control Panel Jumper (C275):
