Home
>>
Mercury
>>
1997
>>
Tracer L4-122 2.0L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
C242
C242

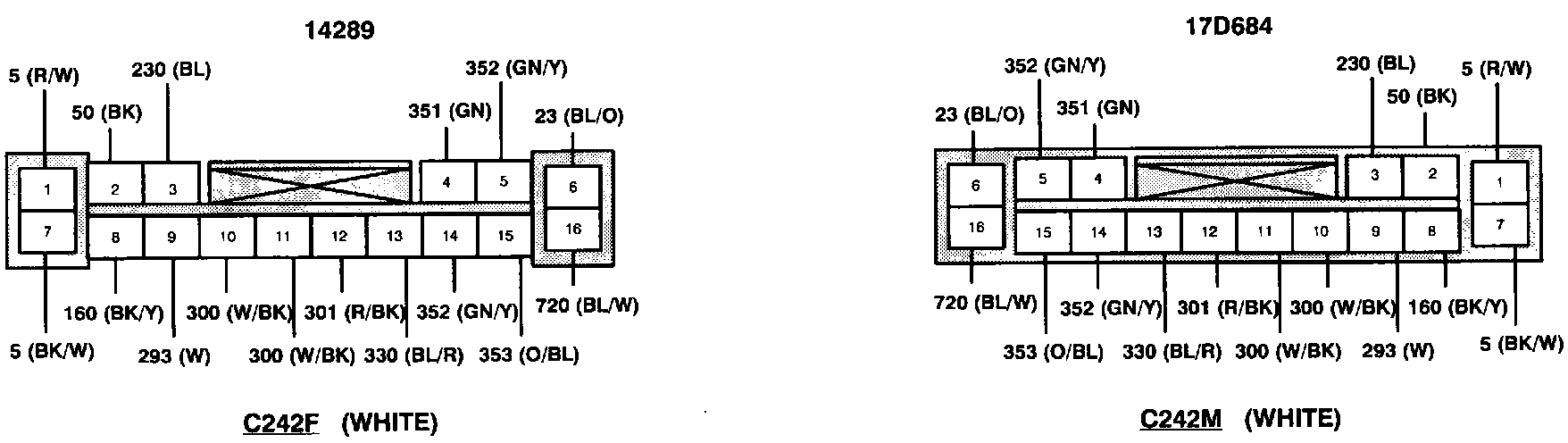

In-Line Connector Faces - C242:
