Standard

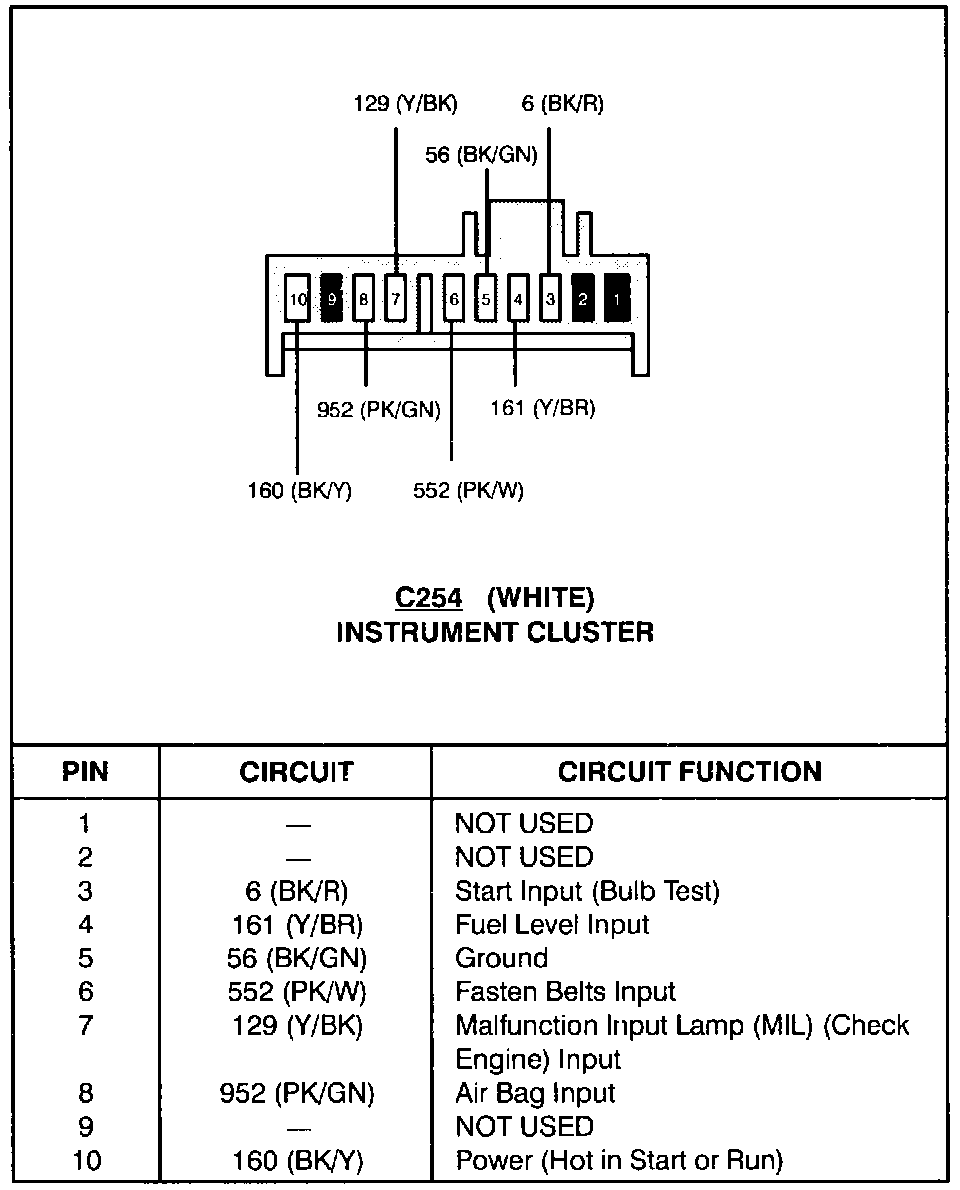

Instrument Cluster (C254):

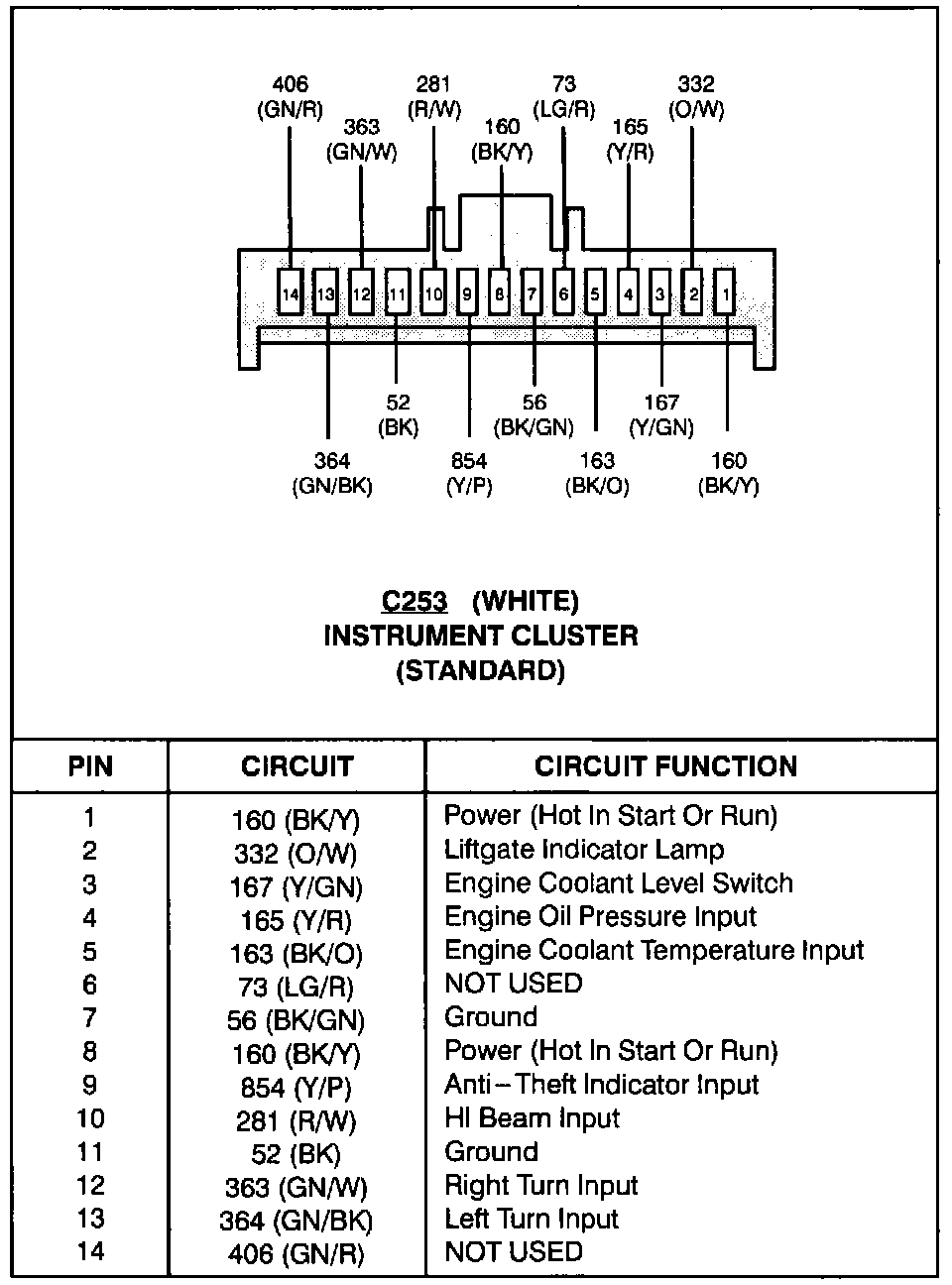

Instrument Cluster (Standard) (C253):

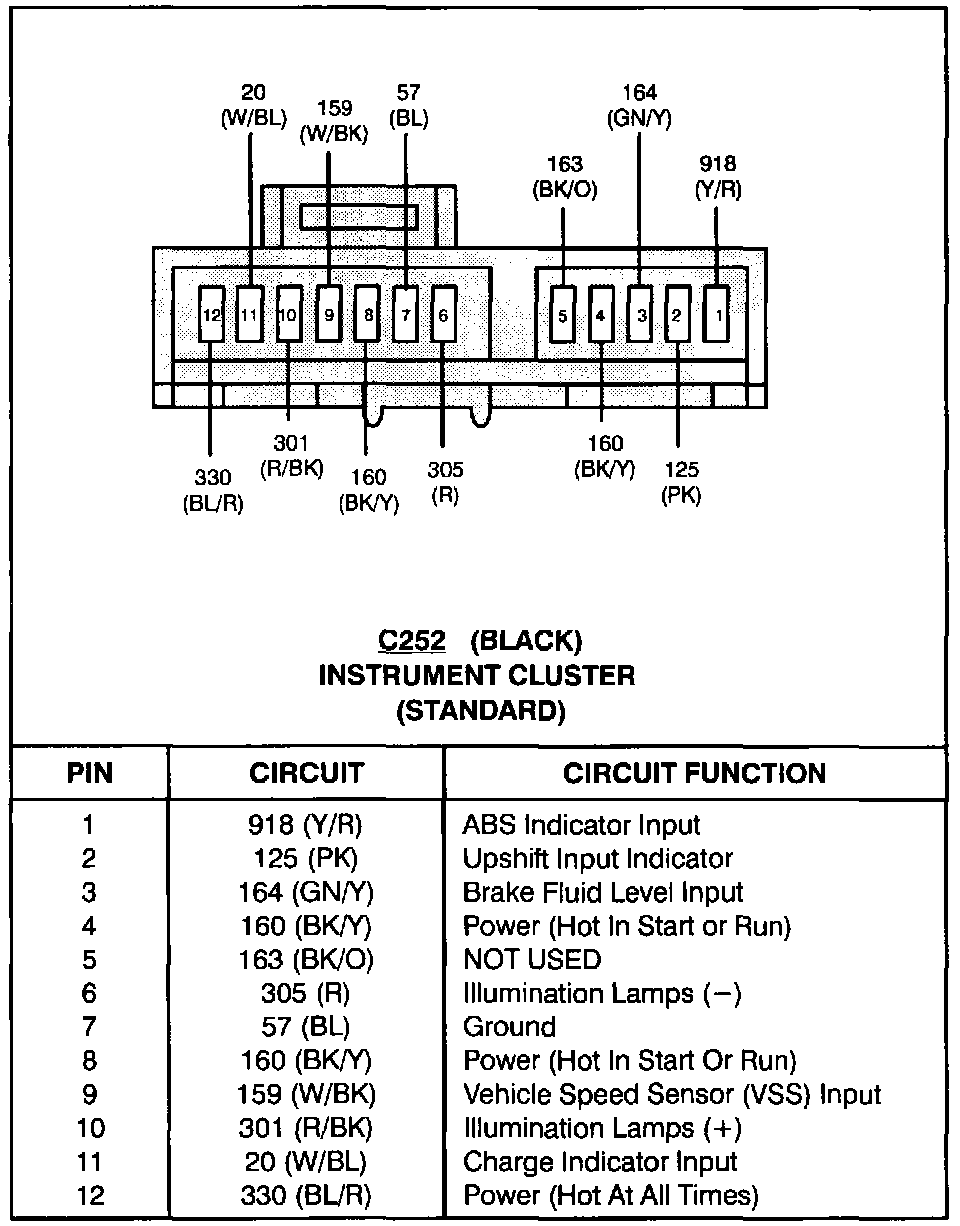

Instrument Cluster (Standard) (C252):

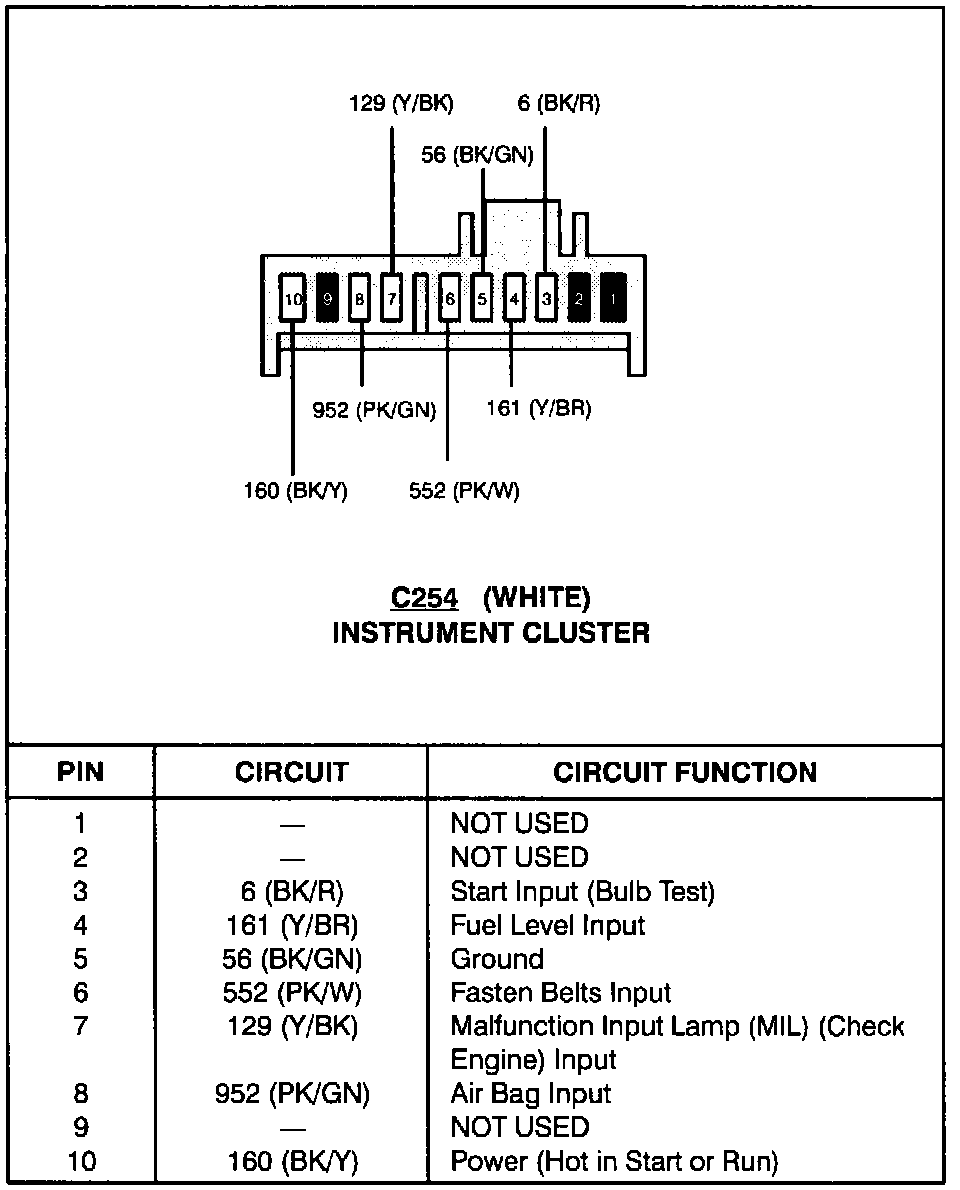

Instrument Cluster (C254):
