Sport

Instrument Cluster (C254):




Instrument Cluster (C254):

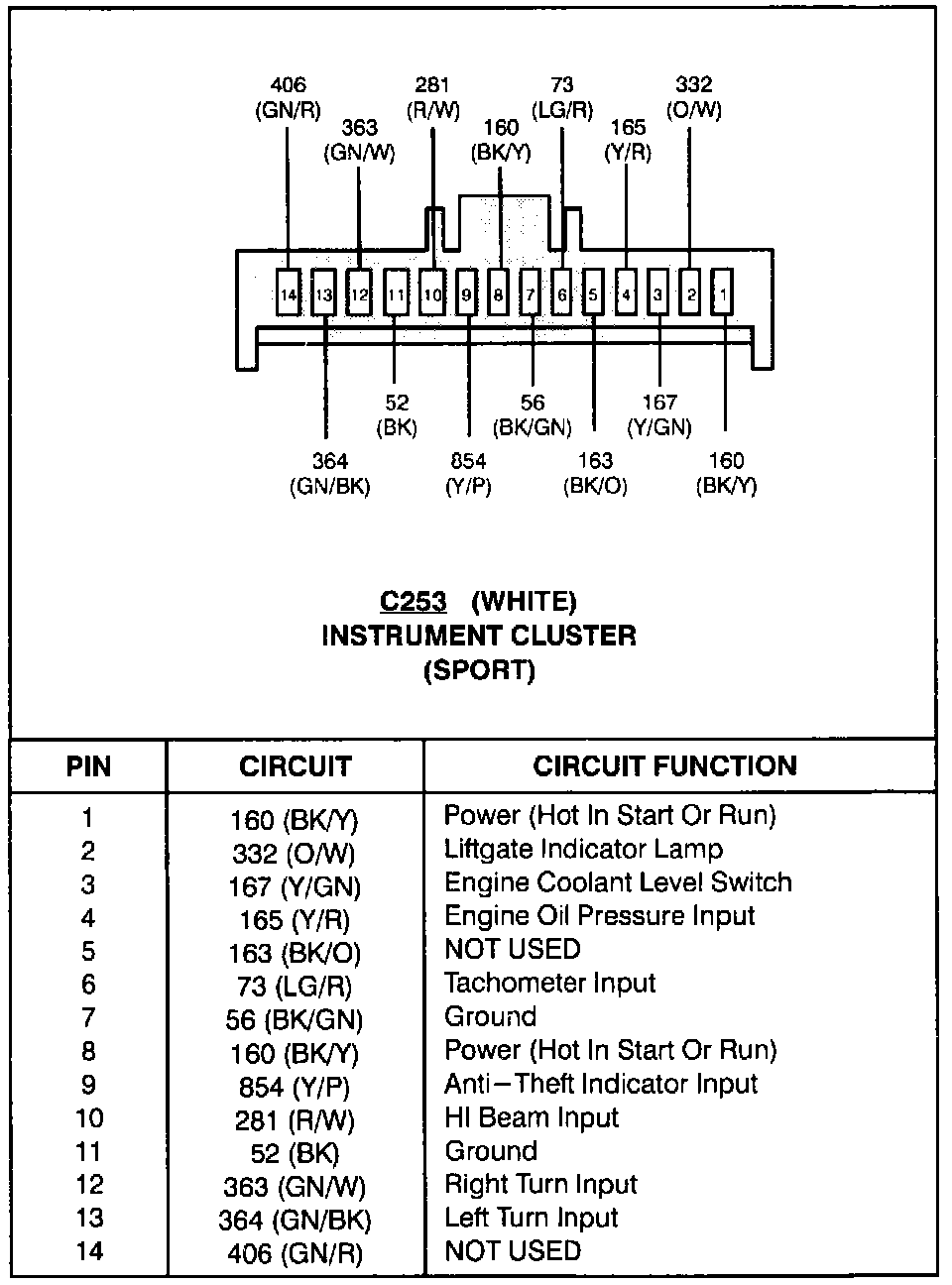

Instrument Cluster (Sport) (C253):




Instrument Cluster (Sport) (C252):
