Hydraulic Control Assembly - Antilock Brakes: Diagrams

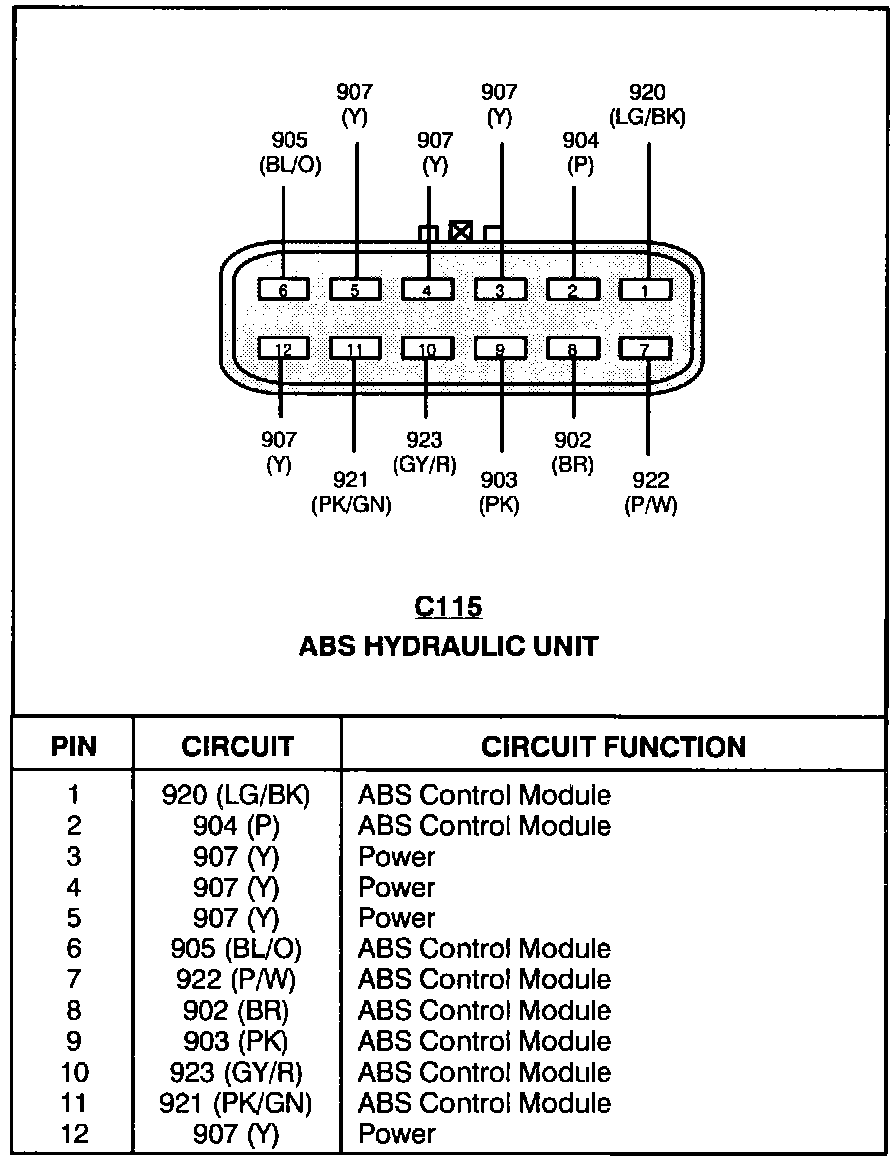

Anti-Lock Brakes System Hydraulic Unit (C115):

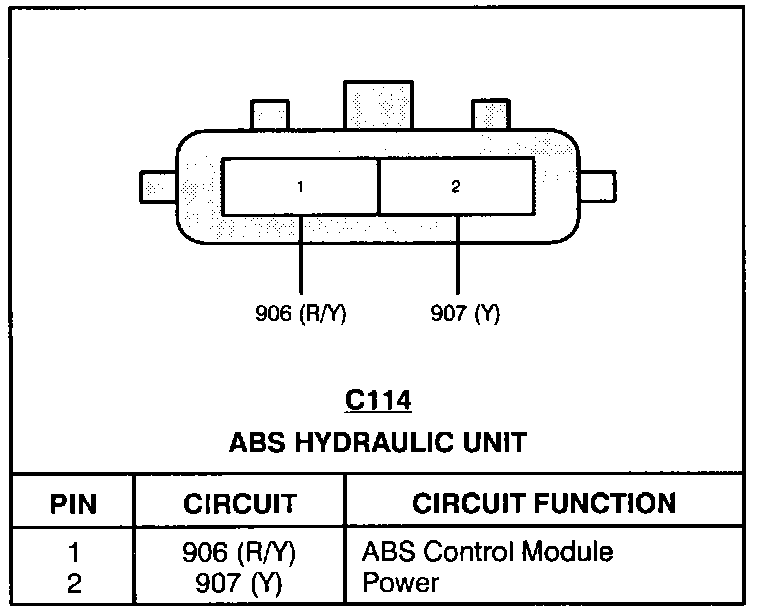

Anti-Lock Brakes System Hydraulic Unit (C114):
