With 60/40 Split Bench Seat

REMOVAL

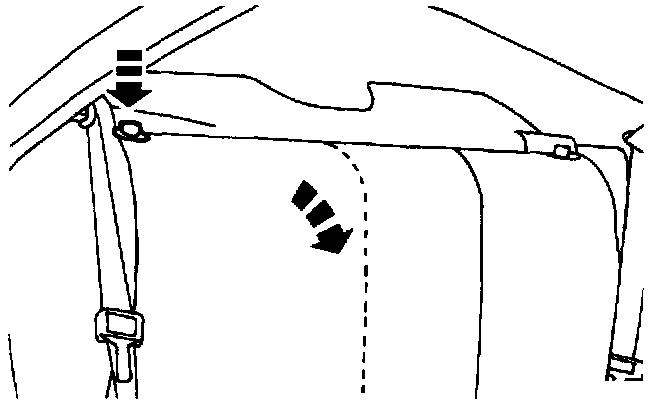

1. Fold down the rear seat back assembly.

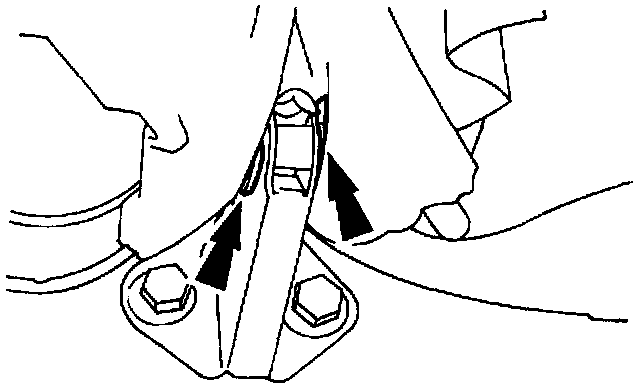

2. Remove the two rear seat back outer hinge bolts.







3. Pull upward to release both of the seat backs from the rear seat back center pivot and remove the rear seat back assembly.







INSTALLATION
1. To install, reverse the removal procedure.
