Mercury
>>
1997
>>
Sable V6-3.0L VIN U
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Drum Brake System
>>
System Diagram
System Diagram

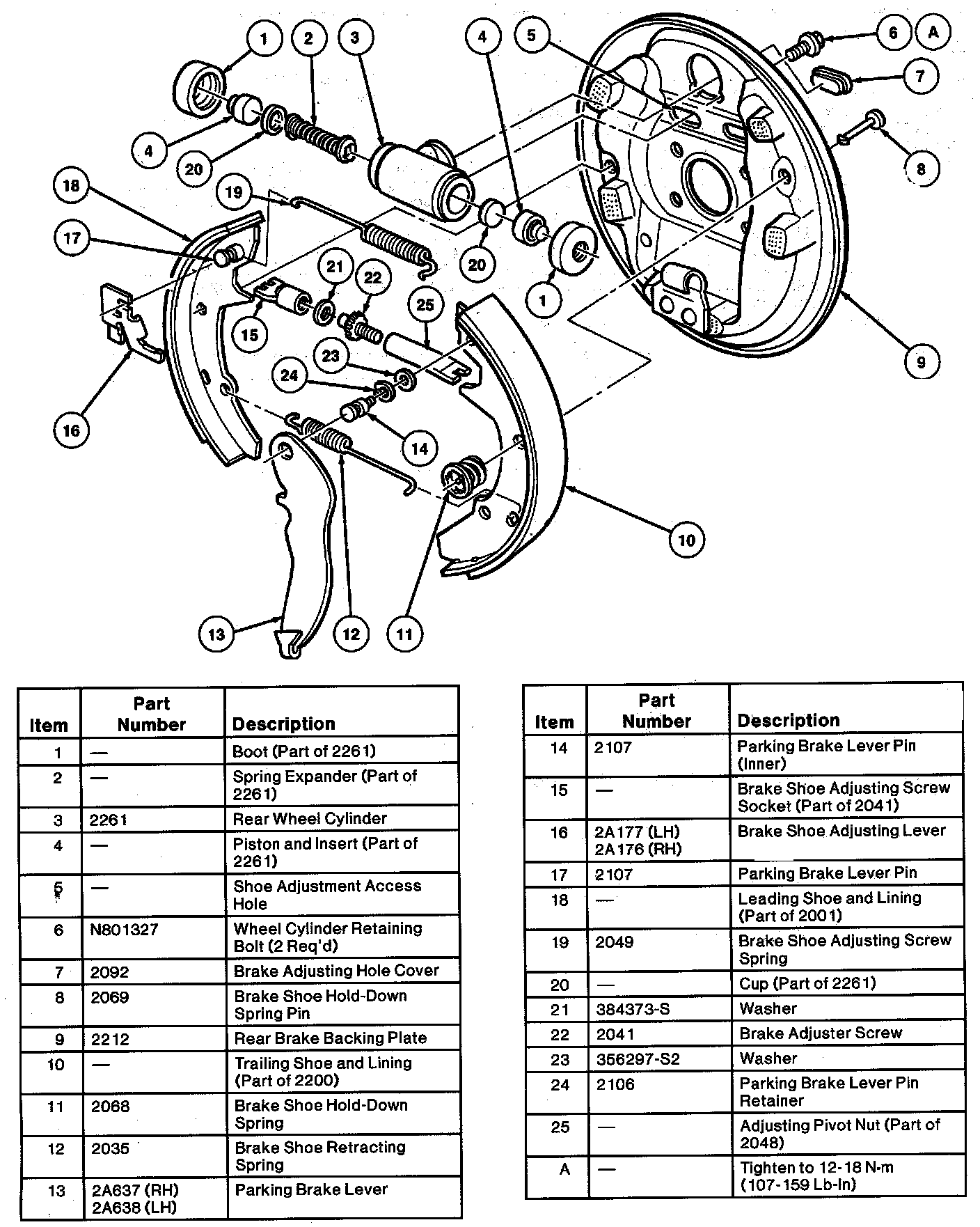

Drum Brake Hardware:

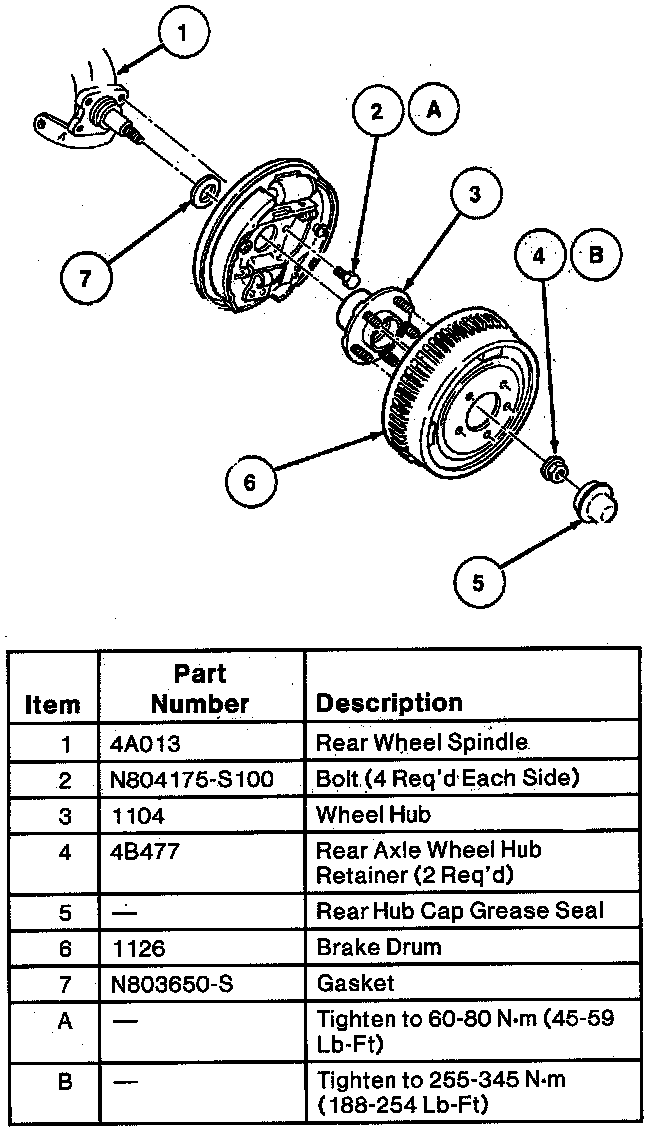

Drum And Spindle:
