Mercury
>>
1997
>>
Sable V6-3.0L VIN U
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
>>
Band Apply Servo, A/T
>>
AX4S
AX4S

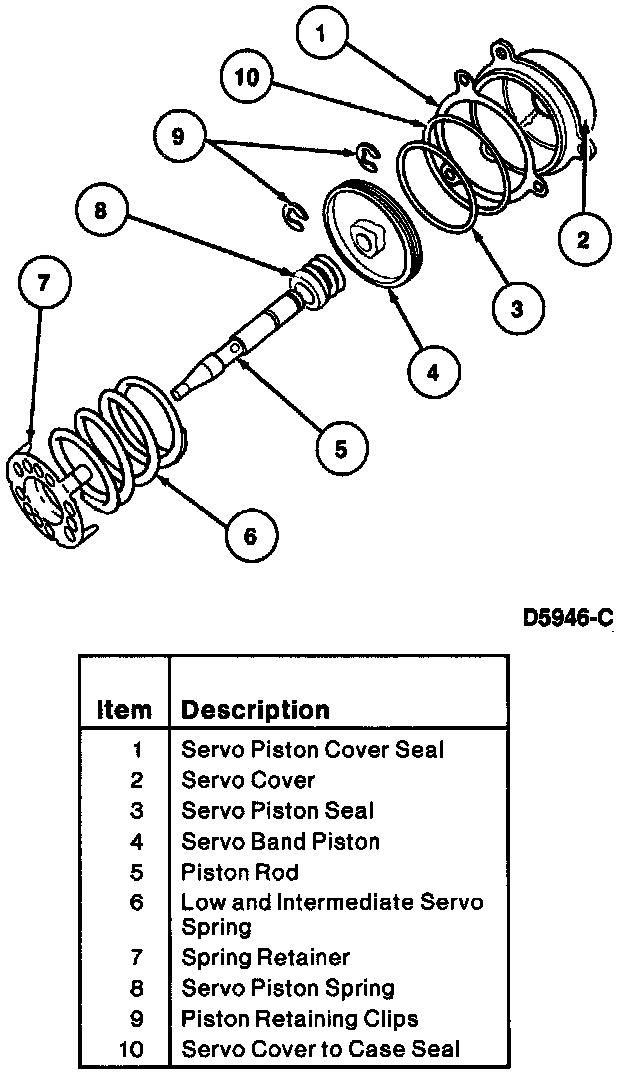

Low And Intermediate Servo:

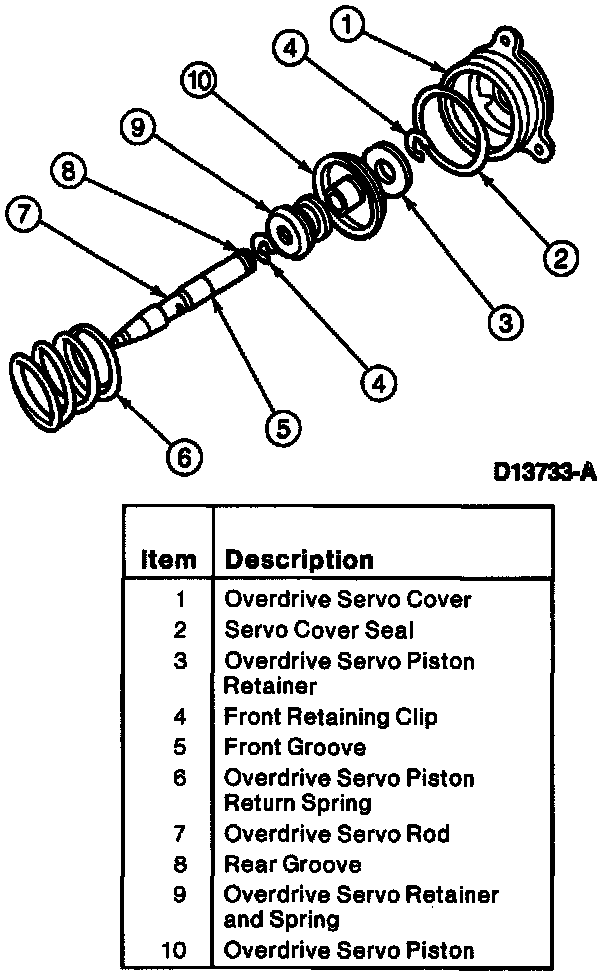

Overdrive Servo:
