Mercury
>>
1997
>>
Mystique V6-153 2.5L DOHC VIN L SFI
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Fuse Block
>>
Diagrams
>>
Connector Views
>>
Interior Fuse Panel
Interior Fuse Panel

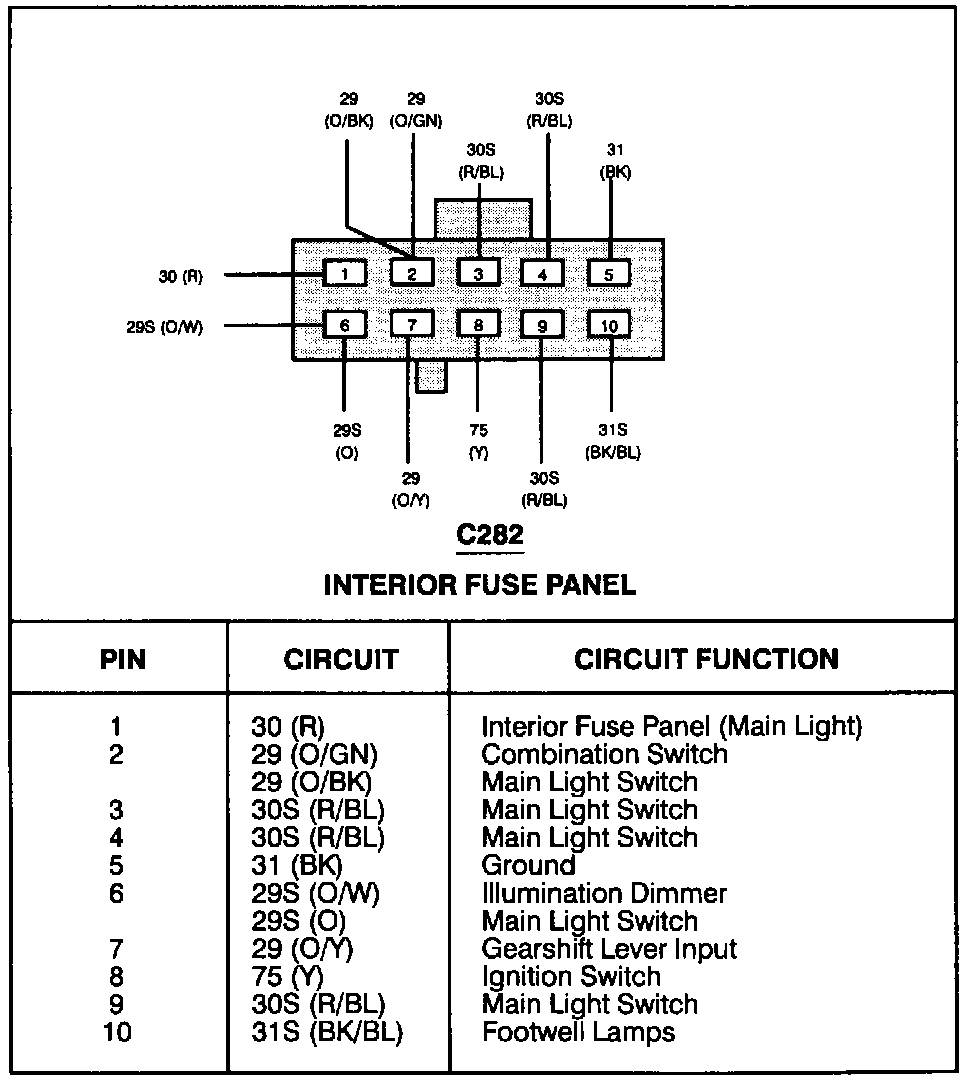

Interior Fuse Panel:

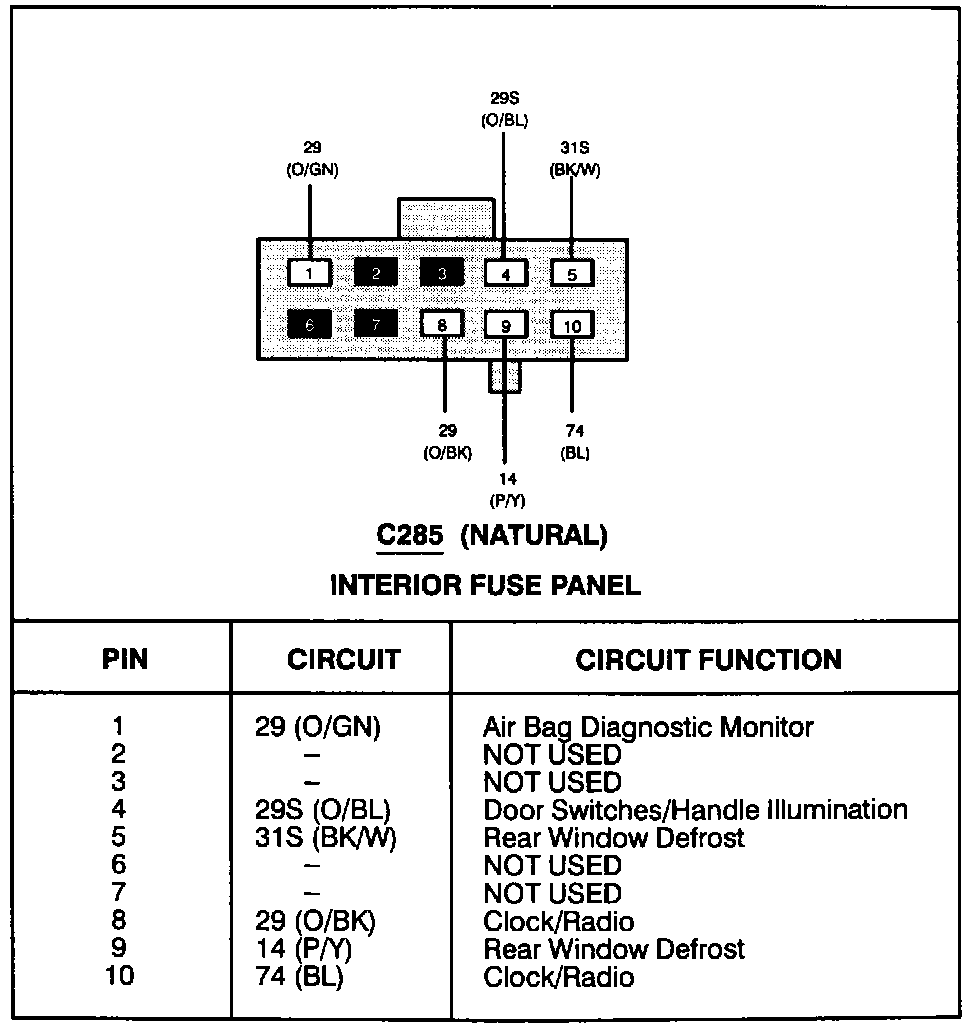

Interior Fuse Panel:

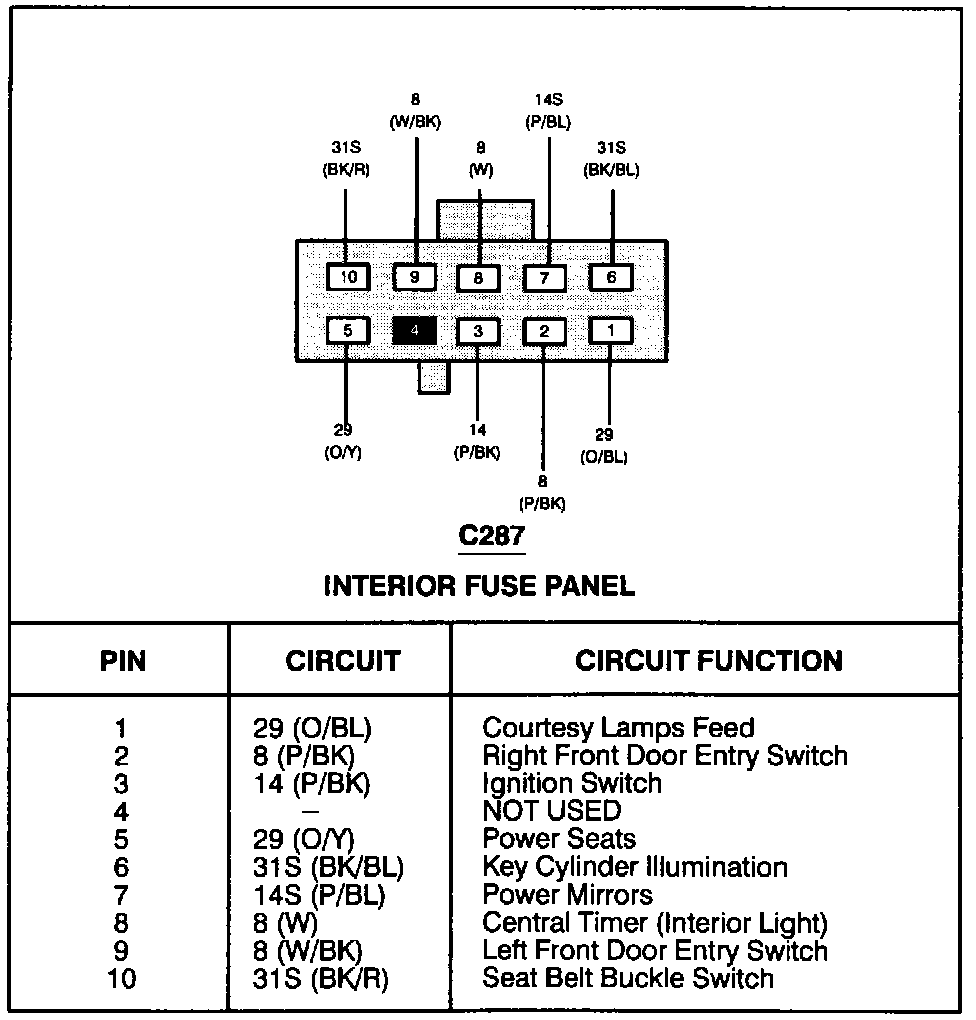

Interior Fuse Panel:

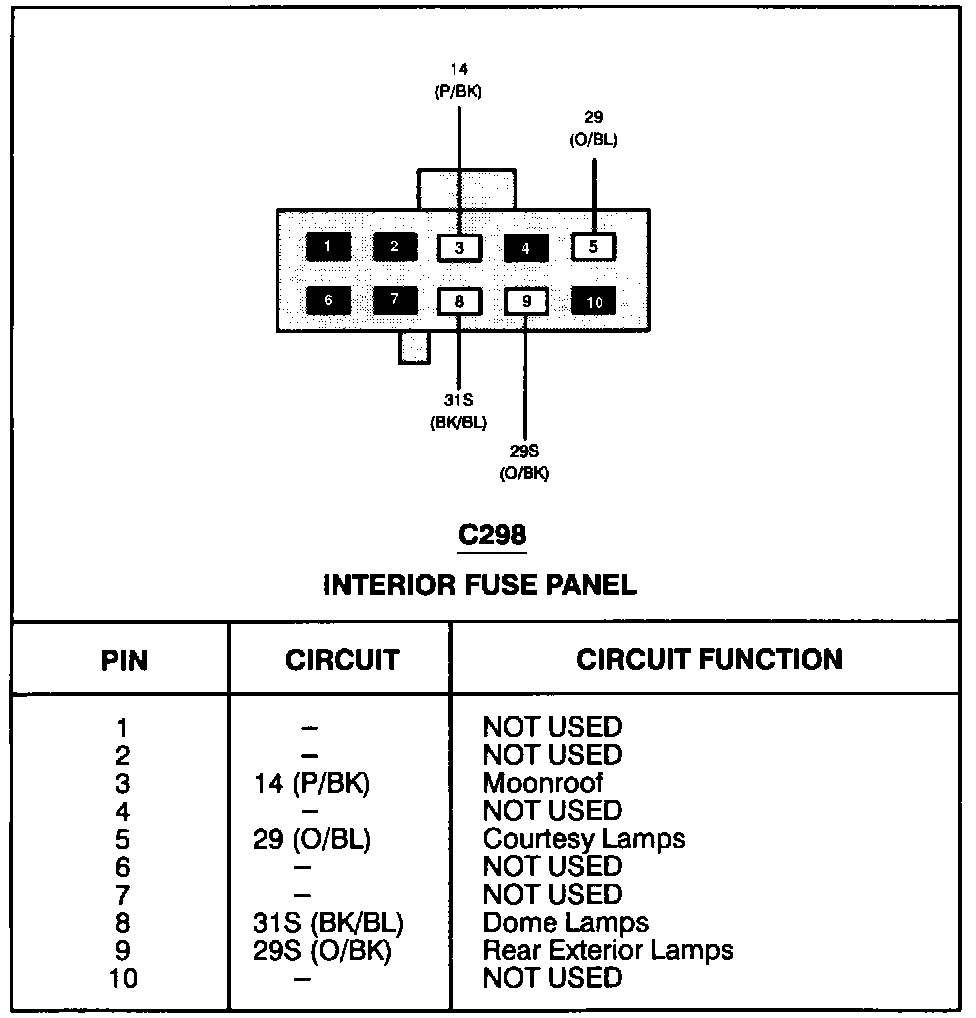

Interior Fuse Panel:
Interior Fuse Panel:
Interior Fuse Panel:
