Mercury
>>
1997
>>
Mystique V6-153 2.5L DOHC VIN L SFI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Pinpoint Tests
>>
H - Fuel Control
>>

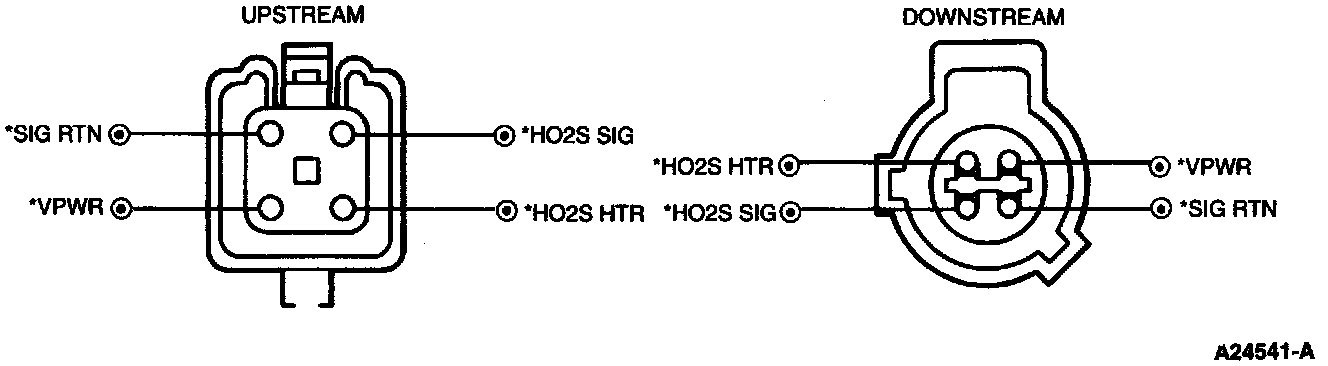

HO2S Connector and Test Pin Numbers
HO2S Connector and Test Pin Numbers
Contour/Mystique:
Connector Test Pin Numbers:
