Engine Compartment Fuse Box

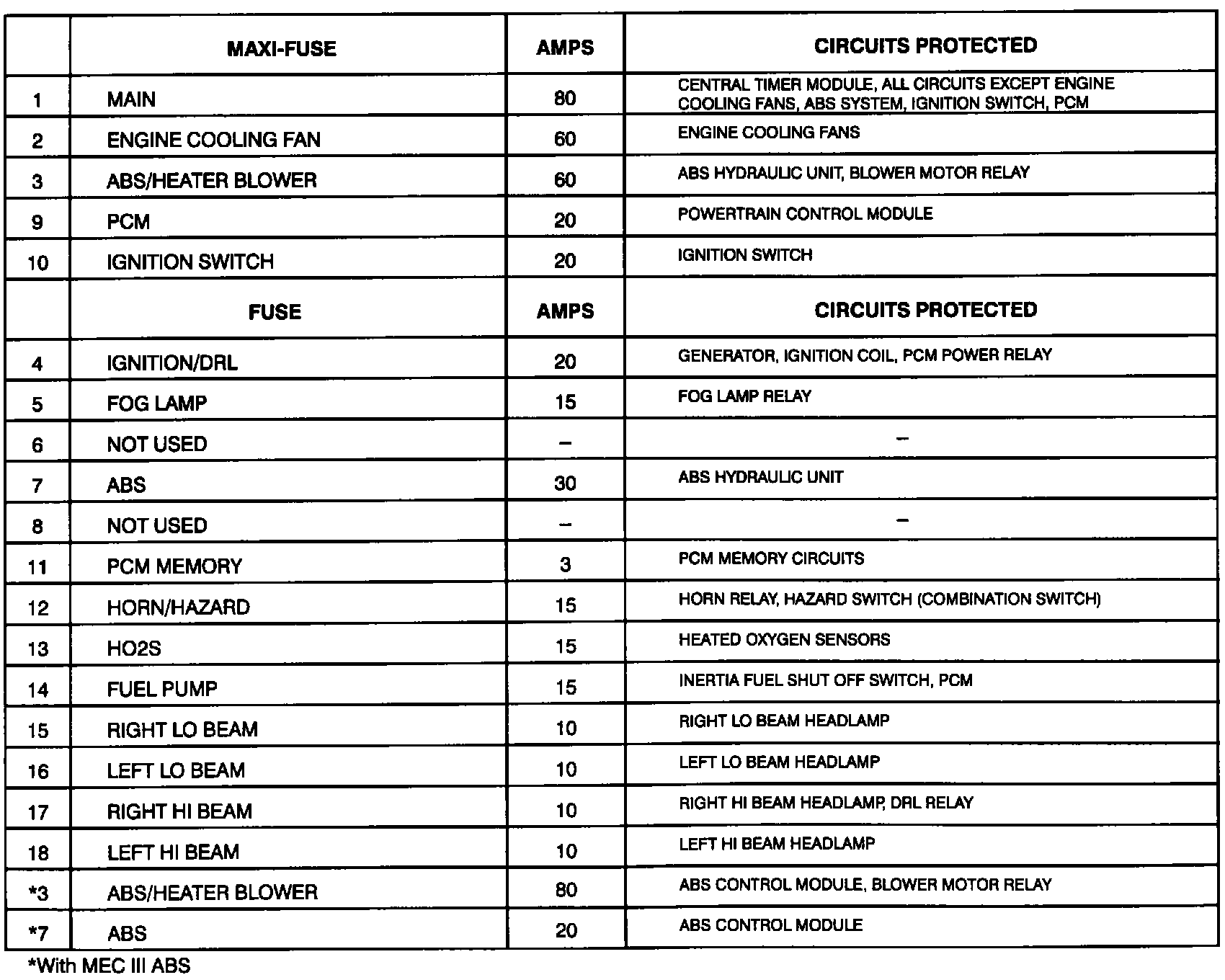

Engine Compartment Fuse Box (Part 1 Of 2):



Engine Compartment Fuse Box:
