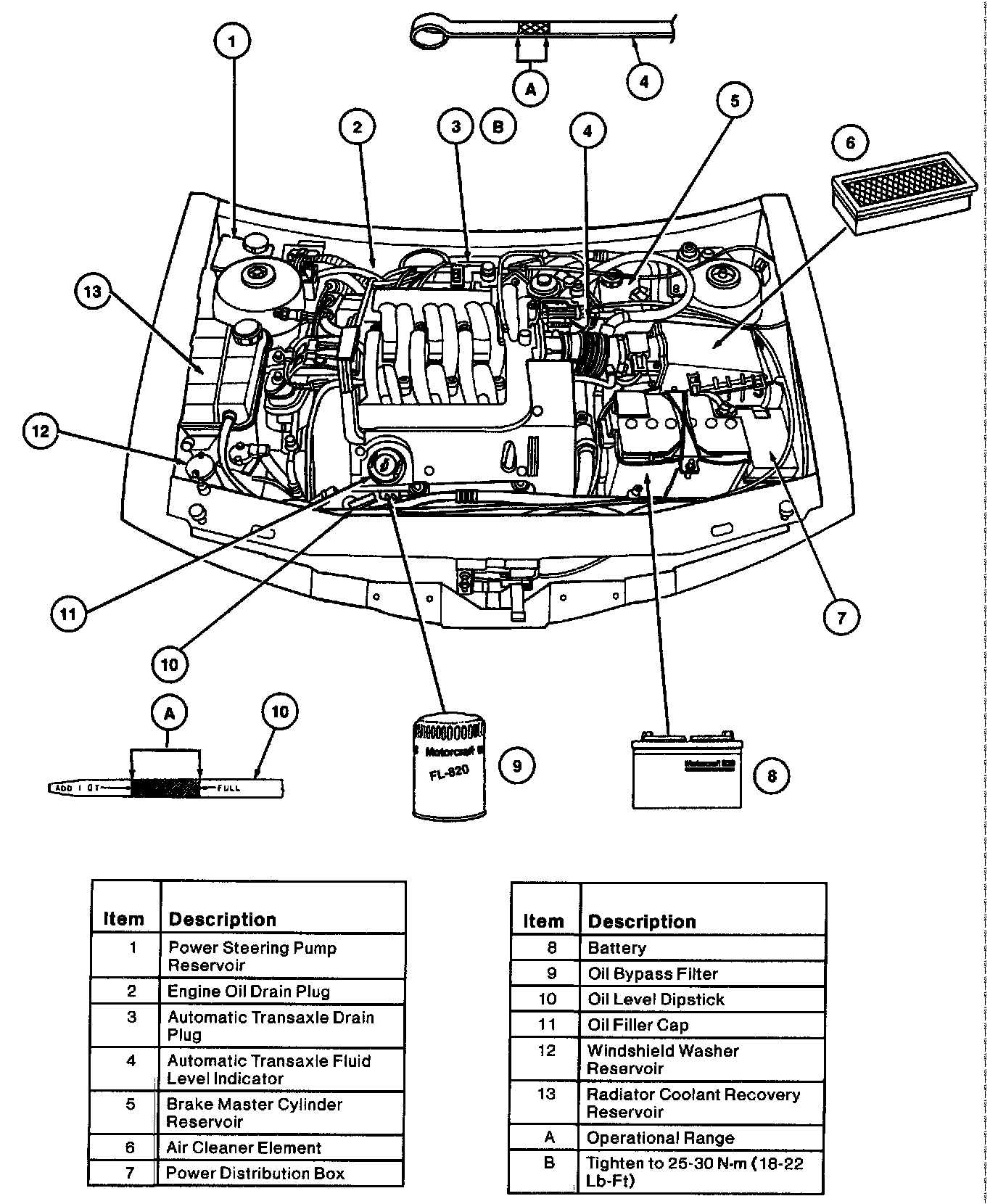

Lubrication Points

Typical engine service and lubrication points for current production vehicles are shown in the illustrations. Vehicles with optional or special equipment may have slightly different or additional lubrication points.
