Transmission Range Indicator Lamp

REMOVAL
1. Disconnect the battery ground cable.

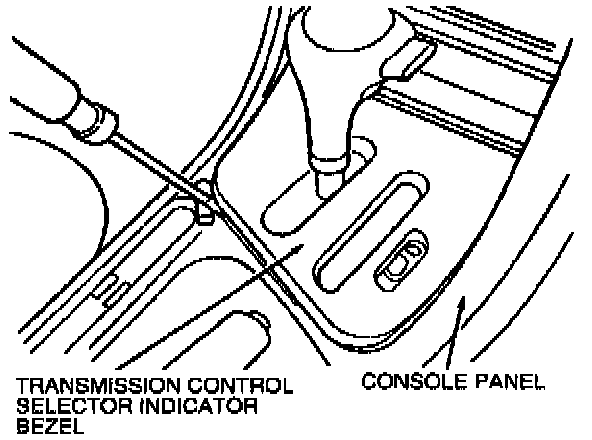

2. Pry up on the selector indicator panel.

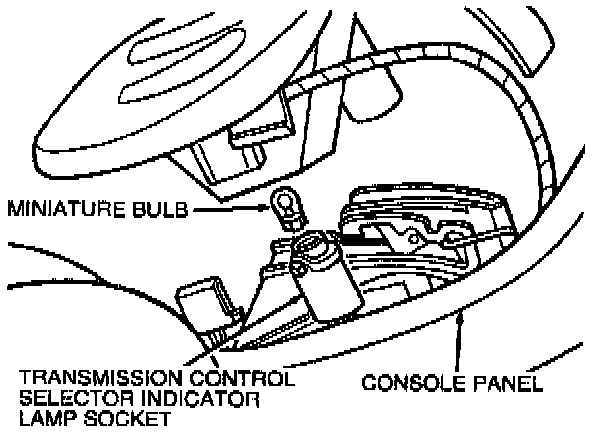

3. Reach under indicator panel and remove miniature bulb and socket from the indicator panel.






4. Pull miniature bulb straight out of socket.

INSTALLATION
1. To install, reverse Removal procedure.
