Home >> Mercury >> 1997 >> Mystique V6-153 2.5L DOHC VIN L SFI >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine

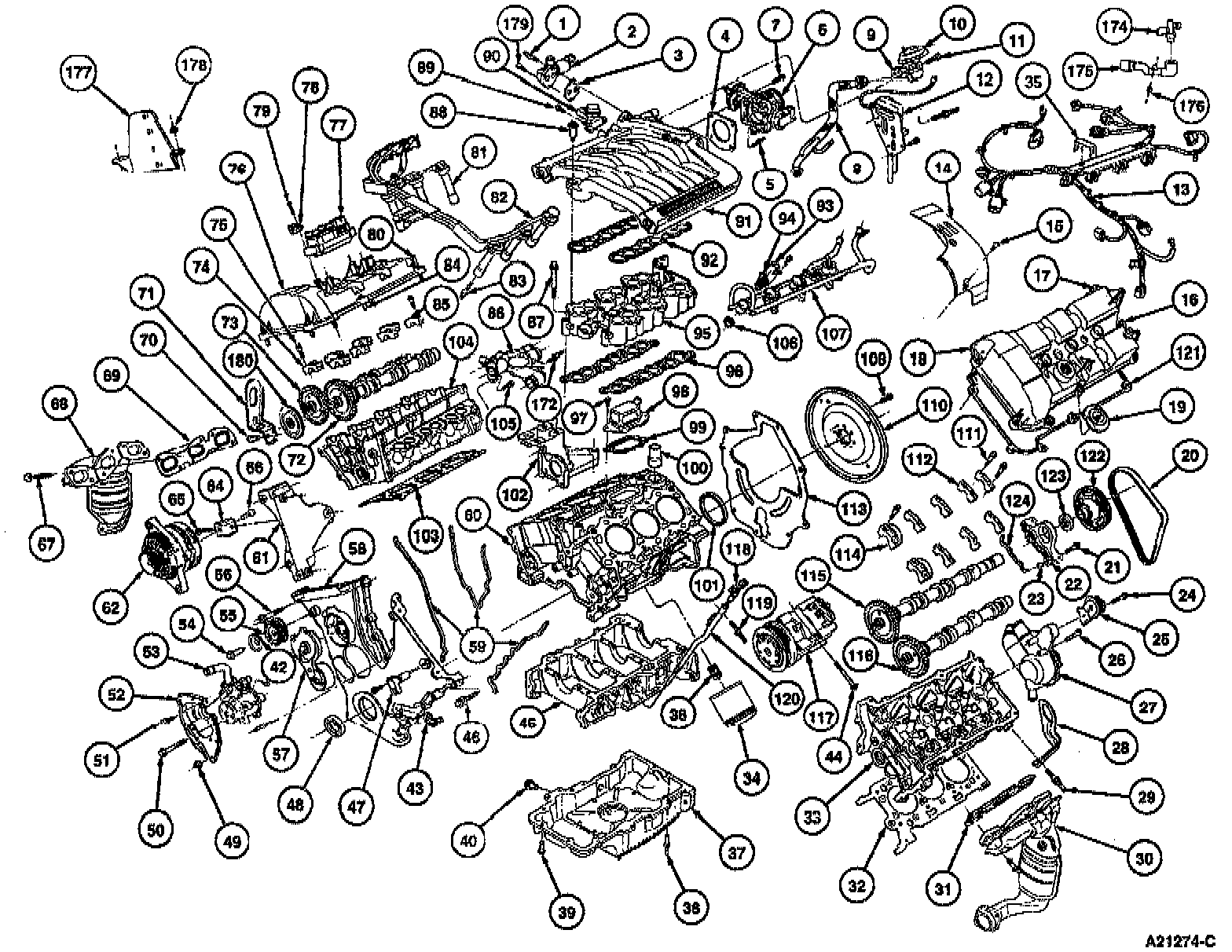

Engine

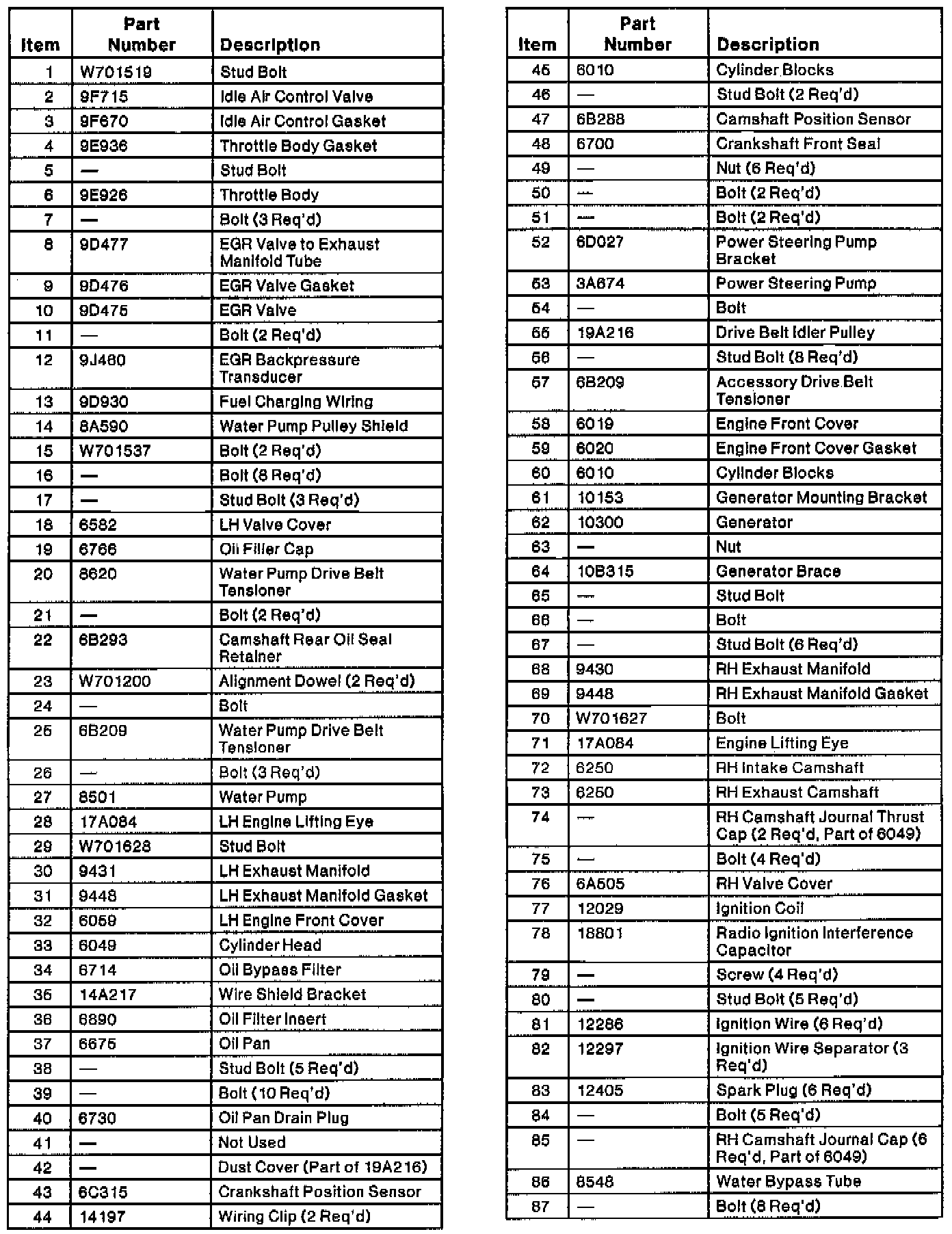

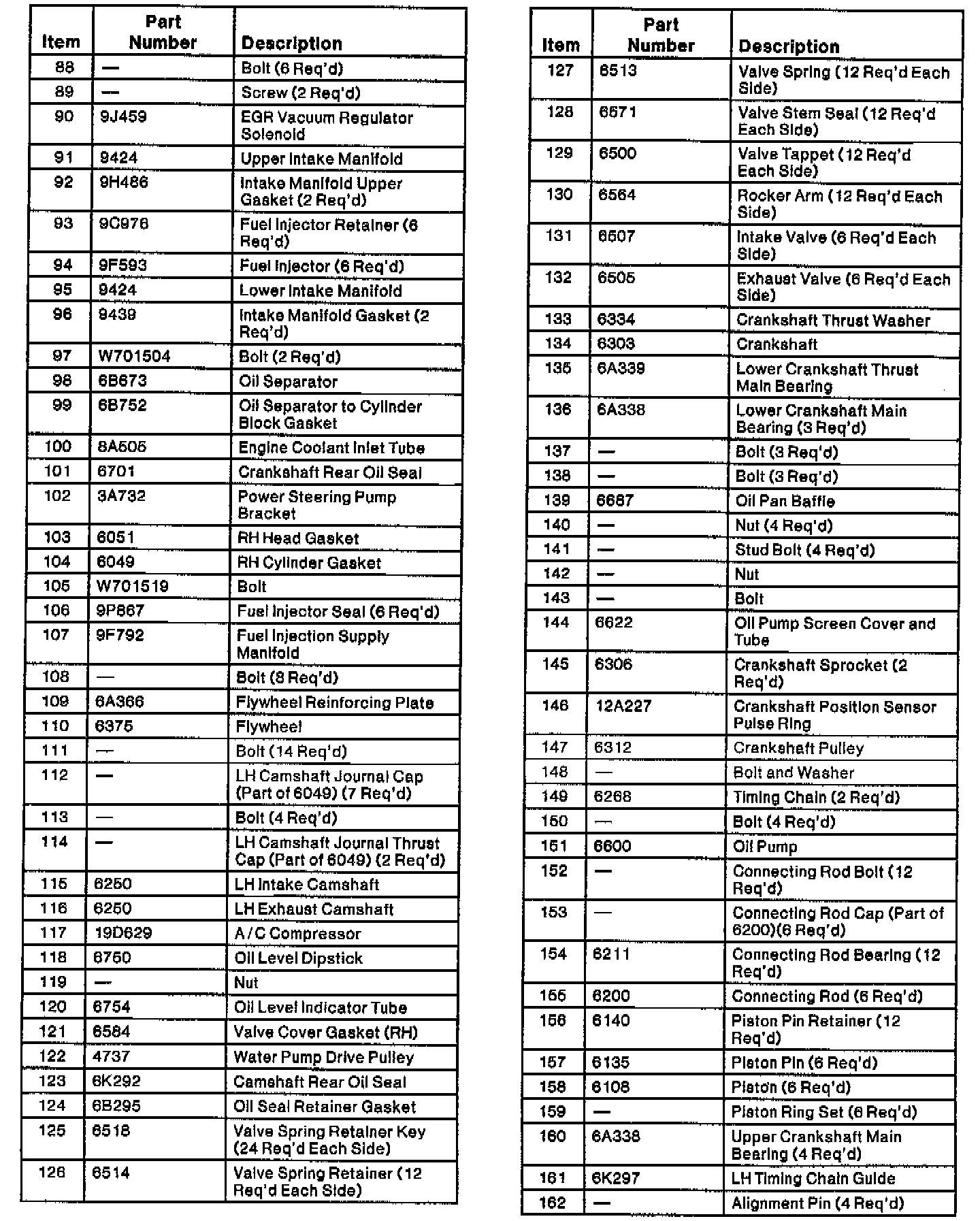

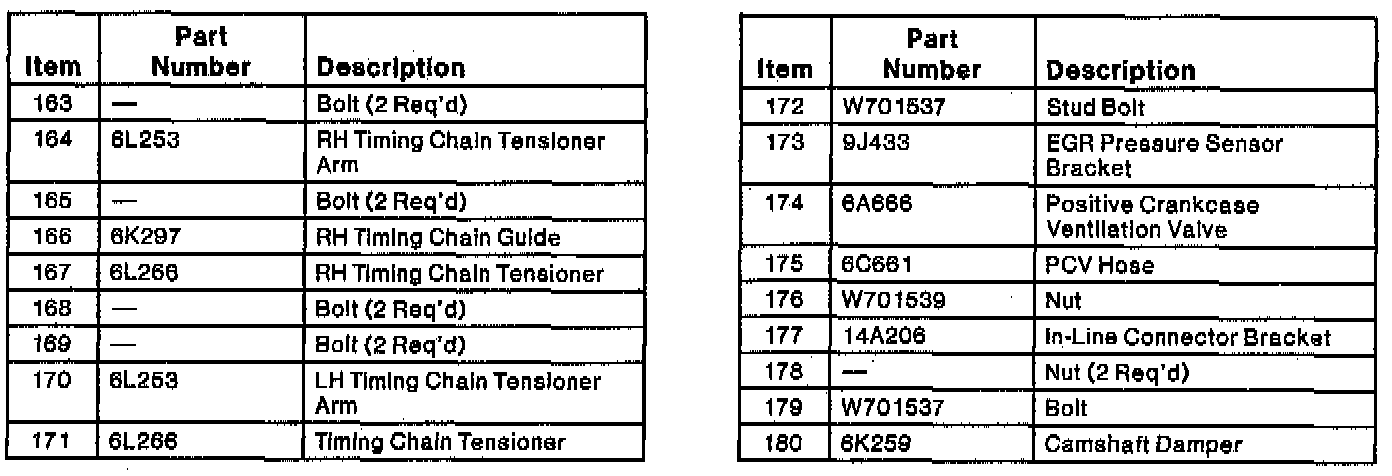

Part 1 Of 5:



Part 2 Of 5:



Part 3 Of 5:



Part 4 Of 5:



Prat 5 Of 5:
