Fuse 32

Fuse 32 - protects the following circuits:
- Clock
- Radio
- Compact Disc

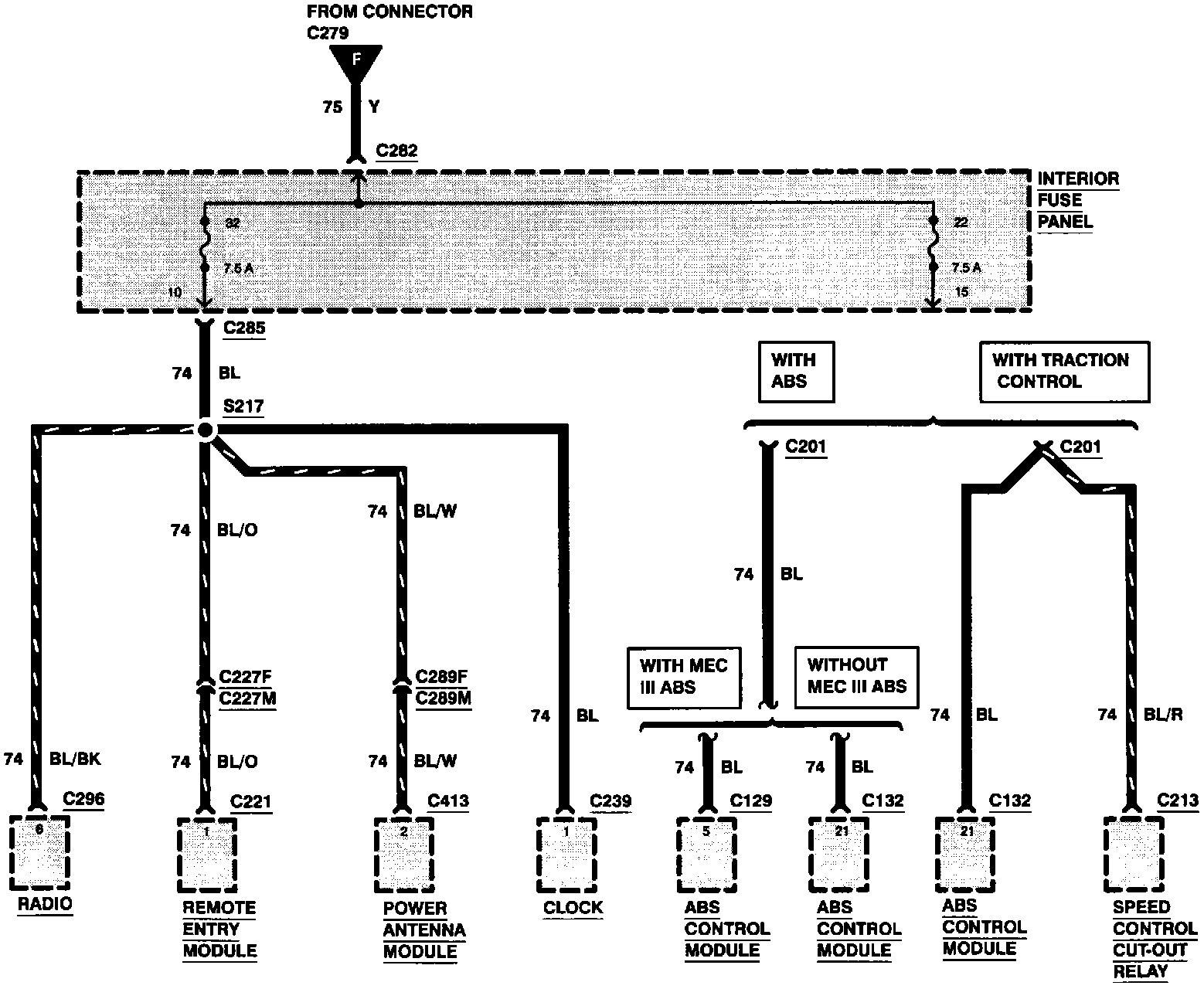

Power Distribution:
