Fuse 25

Fuse 25 - protects the following circuits:
- Power Door Locks
- Remote Entry
- Panic Alarm

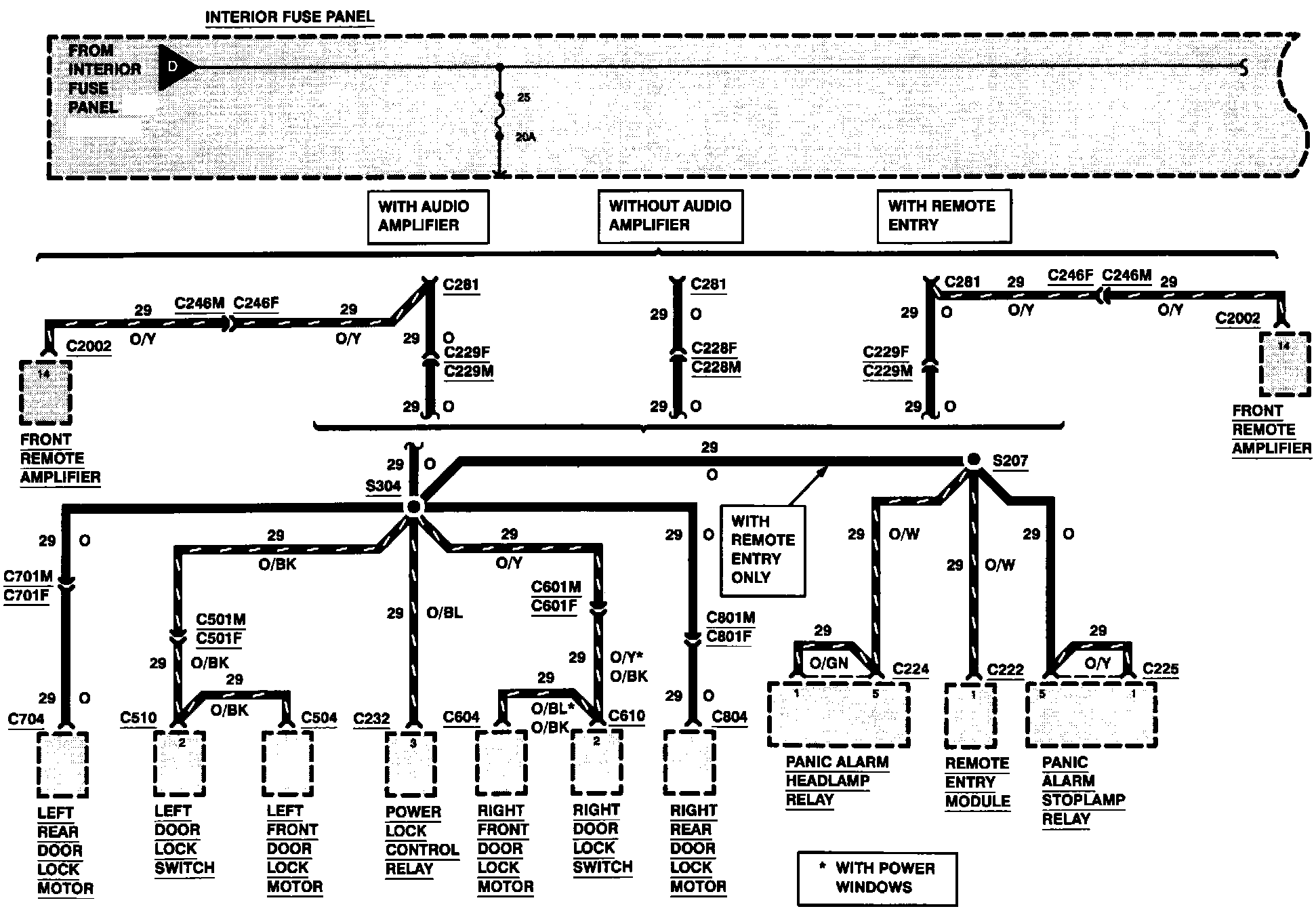

Power Distribution:
