Mercury
>>
1997
>>
Mystique V6-153 2.5L DOHC VIN L SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power and Ground Distribution
>>
Multiple Junction Connector
>>
C228
C228

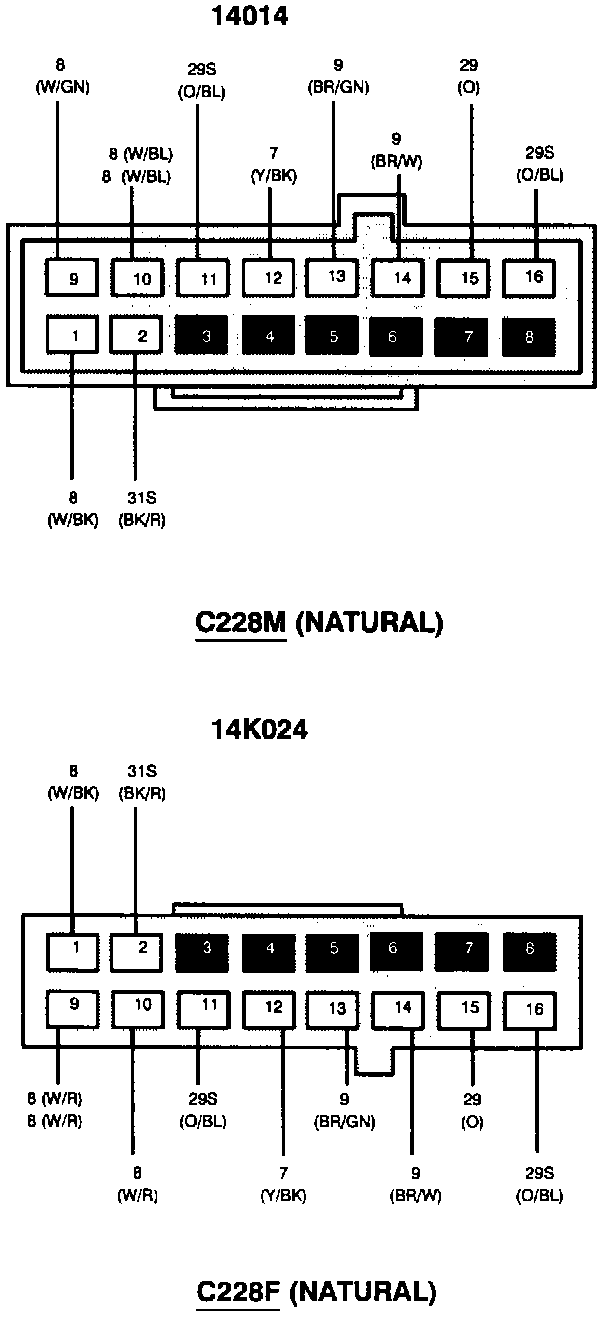

In Line Connector Faces (C228):
