Multiple Junction Connector
>>
C208
>>
With Automatic Transaxle
With Automatic Transaxle

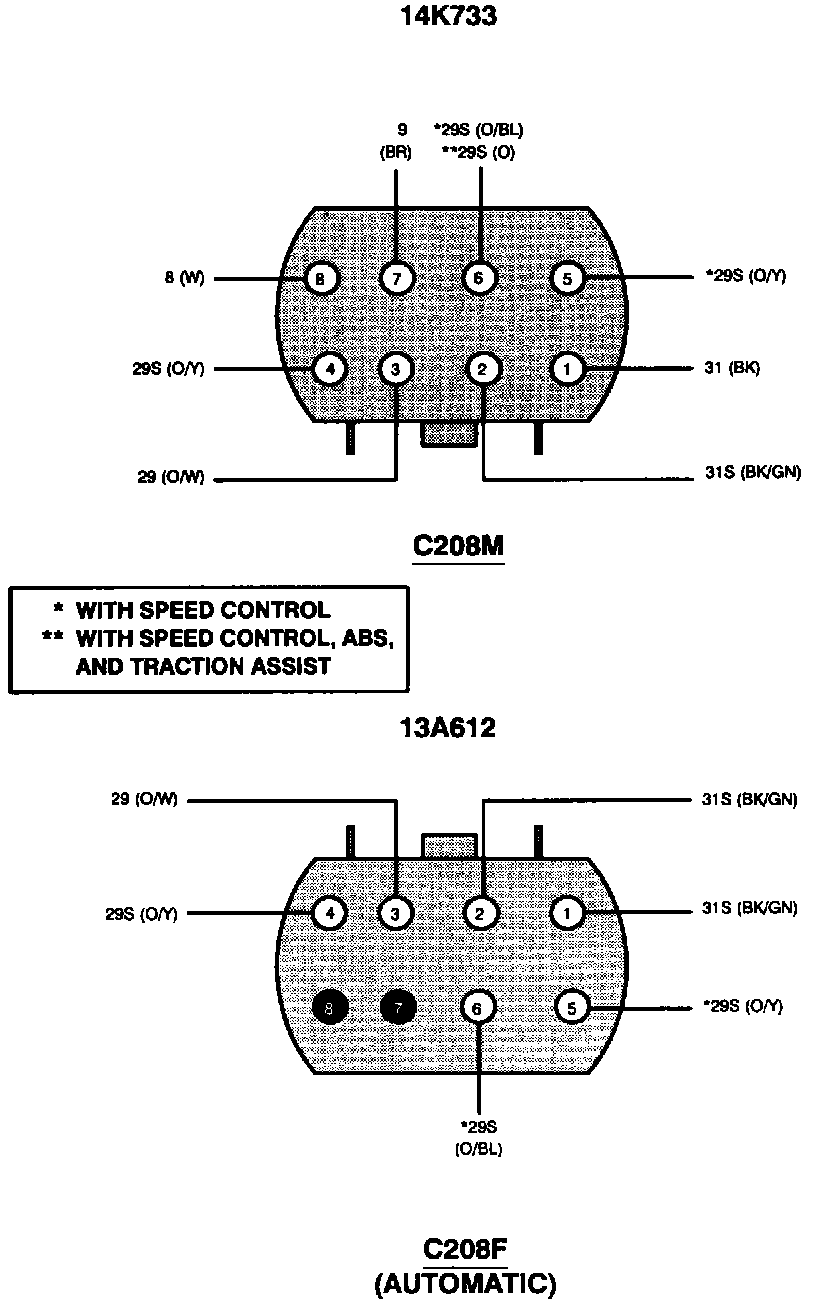

In Line Connector Faces (C208):
