Control Arm Bushing: Service and Repair

REMOVAL
1. Remove upper rear suspension arm and bushing.

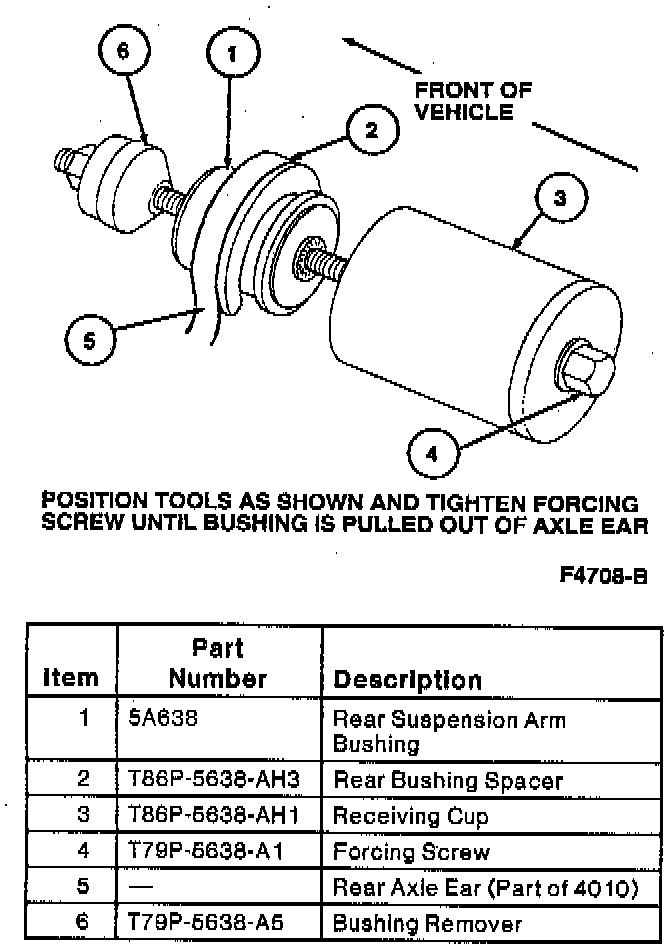

2. Place the upper arm rear bushing remover tool in position and pull bushing out.





INSTALLATION

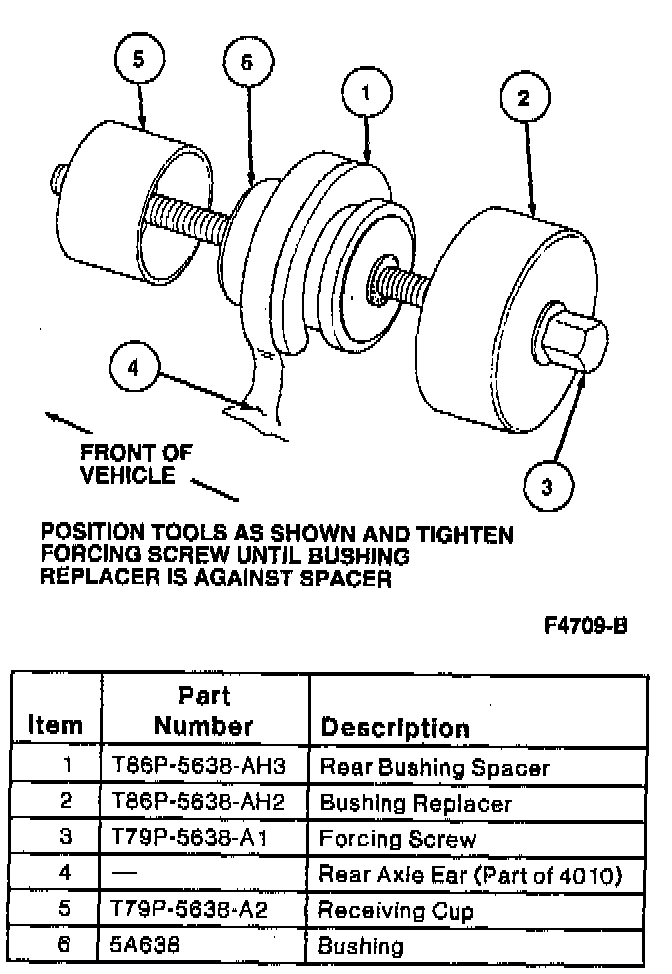

1. Using Forcing Screw T79P-5638-A1 and Receiving Cup T79P-5638-A2, install bushing assembly into bushing ear of rear axle housing.
2. Install upper rear suspension arm and bushing.
