Ignition Coil Bracket

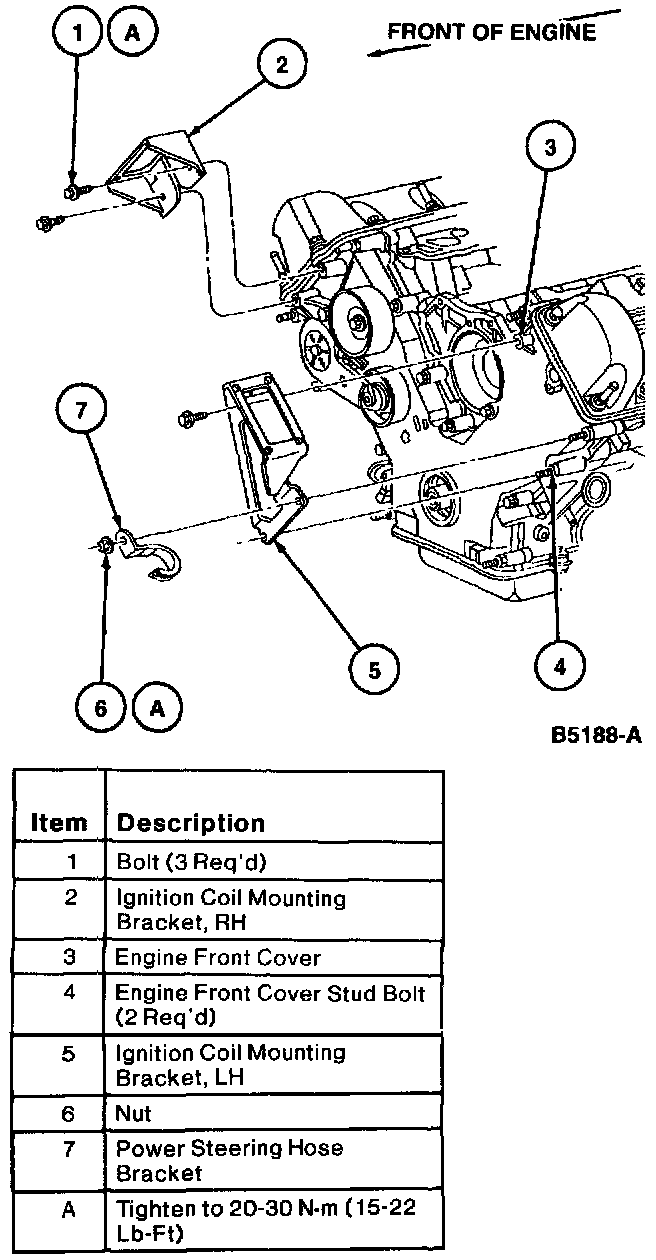

REMOVAL and INSTALLATION
1. Remove coil packs.
2. Remove mounting bracket retainers and mounting brackets from engine front cover.
3. To install, reverse Removal procedure. Tighten coil pack mounting bracket retainers to 20-30 Nm (15-22 lb ft).
